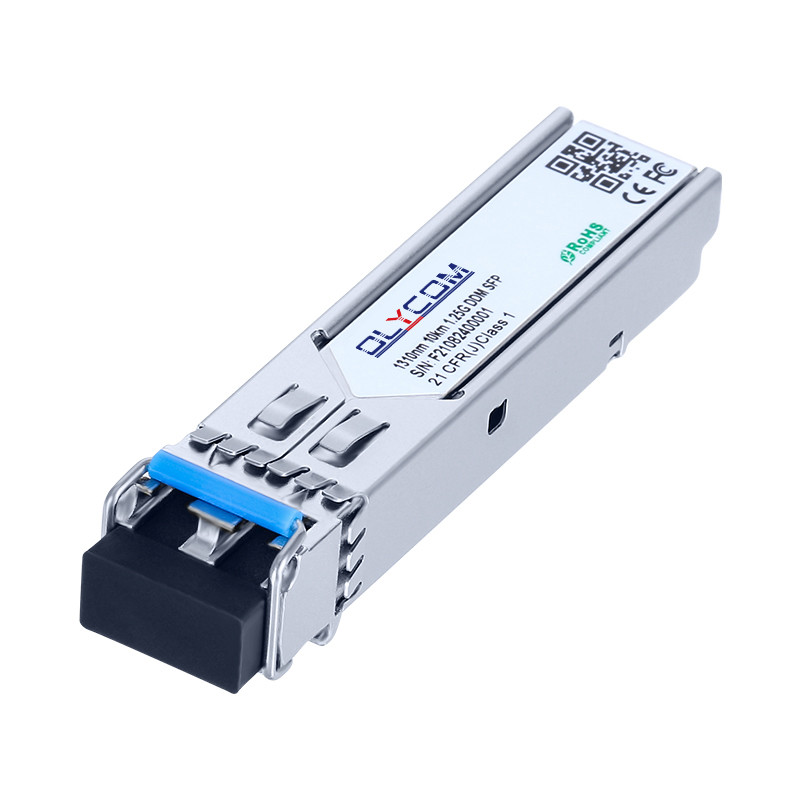

Cisco Compatible 1.25g Sfp Transceiver SM Duplex 1310nm LC Optical Transceiver Module

1 pc
MOQ
Negotiable
Price
Cisco Compatible 1.25g Sfp Transceiver SM Duplex 1310nm LC Optical Transceiver Module
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: 1.25G SFP Transceiver
Data Sheet: 1.25Gb/s
Use: FTTH FTTB FTTX Network
Distance: 10km
Sample: Available
Wavelength: 1330nm
Highlight:

1.25g Sfp Transceiver

,

1310nm LC Optical Transceiver module

,

Cisco compatible sfp transceiver
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Olycom
Certification: CE RoHS FCC ISO9001
Model Number: OSPL1G10D
Payment & Shipping Terms
Packaging Details: 1pc in a box
Delivery Time: 3~5 working days
Payment Terms: T/T, PayPal
Supply Ability: 5000pcs/month
Product Description

Cisco compatible 1.25g sfp transceiver SM duplex

1310nm LC Optical Transceiver module



Key Features of 1.25Gpbs SFP Module

  • Supports up to 1.25Gbps bit rates
  • Hot-pluggable SFP footprint
  • 1310nm FP laser and PIN photo detector, Up to 20km for SMF transmission
  • Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
  • Compatible with RoHS
  • Single +3.3V power supply
  • Real Time Digital Diagnostic Monitoring
  • Operating case temperature:
  • Standard: 0 to +70°C
  • Industrial: -40 to +85°C



Absolute Maximum Ratings



Parameter Symbol Min Max Unit
Supply Voltage Vcc -0.5 4.5 V
Storage Temperature Ts -40 +85 °C
Operating Humidity - 5 85 %



Recommended Operating Environment



Parameter Symbol Min Typical Max Unit
Operating Case Temperature Standard Tc 0   +70 °C
Extended -20   +80 °C
Industrial -40   +85 °C
Power Supply Voltage Vcc 3.135 3.30 3.465 V
Power Supply Current Icc     300 mA
Data Rate   1.0 1.25   Gbps



Optical and Electrical Characteristics



Parameter Symbol Min Typical Max Unit Notes
Transmitter
Centre Wavelength λc 1260 1310 1360 nm
Spectral Width(RMS) Δλ     3 nm
Side-Mode Suppression Ratio SMSR - - - dB
Average Output Power Pout -9   0 dBm 1
Extinction Ratio ER 9.0     dB
Data Input Swing Differential VIN 180   1200 mV 2
Input Differential Impedance ZIN 90 100 110 Ω
TX Disable Disable   2.0   Vcc V
Enable   0   0.8 V
TX Fault Fault   2.0   Vcc V
Normal   0   0.8 V
Receiver
Centre Wavelength λc 1260   1610 nm
Receiver Sensitivity       -23 dBm 3
Receiver Overload   -1     dBm 3
LOS De-Assert LOSD     -24 dBm
LOS Assert LOSA -38     dBm
LOS Hysteresis   0.5   4 dB
Data Output Swing Differential Vout 600 800 1000 mV 4
LOS High 2.0   Vcc V
Low     0.8 V



Packing

Cisco Compatible 1.25g Sfp Transceiver SM Duplex 1310nm LC Optical Transceiver Module 0





Ordering information



Part Number Product Description
OSPL1G20D 1310nm, 1.25Gbps, LC, 20km, 0°C~+70°C, with DDM
OSPL1G20DI 1310nm, 1.25Gbps, LC, 20km, -40°C~+85°C, with DDM





Advantage



1. Are you a manufacturer?

Yes, we have our production line and R&D team.



2. How will you ship my order?

We will send the goods by air(DHL, UPS or FEDEX) or by sea(for bulk order)

It is fine to ship purchased items via customer’s shipping account or forwarder.

It takes 3~5 calendar days to arrive at local customs for clearance.



3. What is MoQ?

1 Pc/Pair.

For many models, we have stock, it is easy to send samples for your testing.



4. Can I have a discount?

Yes and it is usually based on quantity and after sample testing.



5. What is your payment terms?

In most cases we do T/T wire transfer and full amount should be collected before shipment.

For sample orders, we receive PayPal payment for shorter processing time.

Sometimes Alipay or WeChat payment is fine, it depends on the cases.
