1-Port 802.3bt PoE++ to 4-Port 802.3af/at Gigabit Industrial PoE Extender
Specification of 90W PoE Extender
| Product Name | 10/100/1000Mbps Industrial PoE/PD Ethernet Switch(5TP) |
| Model No. | IM-WPD054GE |
| Port | 5 x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Protocol |
IEEE 802.3(10Base-T) IEEE 802.3u(100Base-TX) IEEE 802.3ab(1000Base-TX) IEEE 802.3af 15.4W(POE) IEEE 802.3at 30W(POE+) IEEE 802.3bt 90W(POE++) |
| Switching features |
Transmission mode: Storage and forward Forwarding delay: <10us System bandwidth: 10Gbps(non-traffic jam) Forwarding rate: 14.88Mpps MAC: 2K Packet buffer size: 1.75Mb |
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) |
| LEDs |
Power, network PWR: Power Copper orange: Speed indicator On:Working speed is 1000Mbps Off:Disconnected or working speed is 10/100Mbps Copper green: Link/Act indicator On:transmission is normal Blinking: in transmission Off:transmission is NOT normal |
| Power supply |
Single PoE input power: 30W/60W/90W(port 5) Single PoE output power: 15.4W/30W(port 1~4) Single PoE output voltage: DC48V(port 1~4) |
| PoE wiring |
PoE af/at: 1/2 (V+), 3/6 (V-) PoE bt: 1/2 (V+), 3/6 (V-), 4/5 (V+),7/8 (V-) |
| Environment |
Working temperature: -40°～75°C Storage temperature: -40°～85°C Working humidity: 10%～90%, non-condensing Storage humidity: 10%～95%, non-condensing |
| Industry Standards |
ESD:IEC61000-4-2,±15KV air, ±6KV contact EFT:IEC61000-4-4, General ±6KV Surge: IEC61000-4-5,Differential ±2KV, Common±6KV |
| Certification |
CE-EMC: EN 55032:2015+AC:2016+A1:2020+A11:2020 EN 55035:2017+A11:2020/EN IEC 61000-3-2:2019/A1:2021 EN 61000-3-3:2013/A2:2021/AC:2022 CE-LVD: EN IEC 62368-1:2020+A11:2020 FCC: 47 CFR FCC Part 15 Subpart B (Class B) ANSI C63.4:2014 |
| Mechanical information |

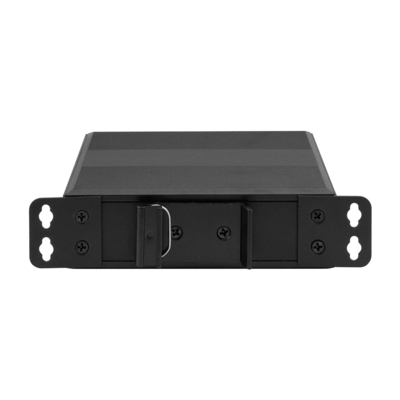

Shell: Corrugated metal shell Safety class: IP40 Dimension: 114*93*35mm Mounting method: Din-rail/Wall mounting |
| Warranty | Replacement within 1 year; 3 years repairing |
1. Q: Does this industrial 4-port PoE extender support 24VDC power output?
A: No, this product doesn't support passive 24VDC PoE devices, and it supports standard IEEE802.3af/at PoE 48VDC devices only.
A PoE splitter is required if you need to connect a 24VDC based PD device.
2. Q: Is it a managed industrial network switch?
A: It is unmanaged industrial PoE switch and no need any setting, plug and play, easy to use.
3. Q: Can I use it with one Non-PoE devices?
A: Yes, sure. If one Non-PoE devices is connected with this industrial 5port PoE switch.
The industrial 5 port PoE switch will provide data only, and don't provide power any more.
4. Q: Can it work with 10/100Mbps devices?
A: Yes, Ethernet port speed is auto-adaptive, it is seamless connection with extra settings.
Application of 4-port PoE Switch
Key Features of Long Reach PoE Kit
| IM-WS050GE |
Industrial Ethernet Switch 5*100/1000M, Unmanaged, Non-PoE, DC12V~DC52V dual input Ideal in vehicle network or industrial automation system |
| IM-WP054GE |
Industrial PoE Switch 5*100/1000M, Unmanaged, PoE af/at for port 1~4, 120W budget, DC48V~DC52V dual input Remark: PoE bt*60W is optional Ideal in CCTV security system |
| IM-WP054BGE |
Industrial PoE Switch 5*100/1000M, Unmanaged, PoE af/at for port 1~4, 120W budget, DC12V~DC48V dual input With internal power booster Ideal in solar power system |
|
IM-WPD054GE
|
Industrial PoE Switch 5*100/1000M, Unmanaged, 1*PD port(30W/60W/90W)+PoE af/at for port 1~4 No need to use extra power supply Ideal in CCTV security system |
