1-Port 802.3bt PoE++ to 4-Port 802.3af/at Gigabit Industrial PoE Extender
Specification of 90W PoE Extender
| Product Name |
10/100/1000Mbps Industrial PoE/PD Ethernet Switch(5TP) |
| Model No. |
IM-WPD054GE |
| Port |
5 x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Protocol |
IEEE 802.3(10Base-T)
IEEE 802.3u(100Base-TX)
IEEE 802.3ab(1000Base-TX)
IEEE 802.3af 15.4W(POE)
IEEE 802.3at 30W(POE+)
IEEE 802.3bt 90W(POE++)
|
| Switching features |
Transmission mode: Storage and forward
Forwarding delay: <10us
System bandwidth: 10Gbps(non-traffic jam)
Forwarding rate: 14.88Mpps
MAC: 2K
Packet buffer size: 1.75Mb
|
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
|
| LEDs |
Power, network
PWR: Power
Copper orange: Speed indicator
On:Working speed is 1000Mbps
Off:Disconnected or working speed is 10/100Mbps
Copper green: Link/Act indicator
On:transmission is normal
Blinking: in transmission
Off:transmission is NOT normal
|
| Power supply |
Single PoE input power: 30W/60W/90W(port 5)
Single PoE output power: 15.4W/30W(port 1~4)
Single PoE output voltage: DC48V(port 1~4)
|
| PoE wiring |
PoE af/at: 1/2 (V+), 3/6 (V-)
PoE bt: 1/2 (V+), 3/6 (V-), 4/5 (V+),7/8 (V-)
|
| Environment |
Working temperature: -40°～75°C
Storage temperature: -40°～85°C
Working humidity: 10%～90%, non-condensing
Storage humidity: 10%～95%, non-condensing
|
| Industry Standards |
ESD:IEC61000-4-2,±15KV air, ±6KV contact
EFT:IEC61000-4-4, General ±6KV
Surge: IEC61000-4-5,Differential ±2KV, Common±6KV
|
| Certification |
CE-EMC: EN 55032:2015+AC:2016+A1:2020+A11:2020
EN 55035:2017+A11:2020/EN IEC 61000-3-2:2019/A1:2021
EN 61000-3-3:2013/A2:2021/AC:2022
CE-LVD: EN IEC 62368-1:2020+A11:2020
FCC: 47 CFR FCC Part 15 Subpart B (Class B) ANSI C63.4:2014
|
| Mechanical information |
Shell: Corrugated metal shell
Safety class: IP40
Dimension: 114*93*35mm
Mounting method: Din-rail/Wall mounting
|
| Warranty |
Replacement within 1 year; 3 years repairing |
1. Q: Does this industrial 4-port PoE extender support 24VDC power output?
A: No, this product doesn't support passive 24VDC PoE devices, and it supports standard IEEE802.3af/at PoE 48VDC devices only.
A PoE splitter is required if you need to connect a 24VDC based PD device.
2. Q: Is it a managed industrial network switch?
A: It is unmanaged industrial PoE switch and no need any setting, plug and play, easy to use.
3. Q: Can I use it with one Non-PoE devices?
A: Yes, sure. If one Non-PoE devices is connected with this industrial 5port PoE switch.
The industrial 5 port PoE switch will provide data only, and don't provide power any more.
4. Q: Can it work with 10/100Mbps devices?
A: Yes, Ethernet port speed is auto-adaptive, it is seamless connection with extra settings.

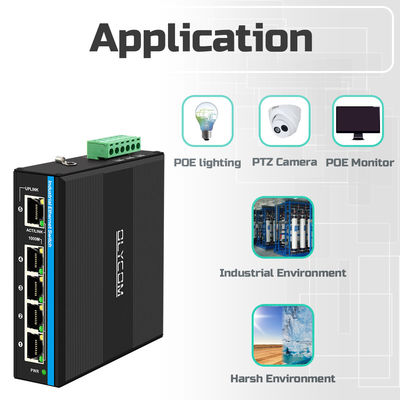

Application of 4-port PoE Switch
Key Features of Long Reach PoE Kit
- Support power on PoE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
- IEEE 802.3 af/at power on/to 1 ~ 4 RJ45 ports
- IEEE 802.3 af/at/bt power on port 5
- 5 x 10/100/1000Mbps Auto-sensing RJ45 ports
- 6 KV Ethernet surge protection, adapt to a harsh outdoor environment
- Support Auto MDI/MDIX
- Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
- IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
- A store-and-forward switching mechanism
- Operating environment temperature: -40℃~75℃
| IM-WS050GE |
Industrial Ethernet Switch
5*100/1000M, Unmanaged, Non-PoE, DC12V~DC52V dual input
Ideal in vehicle network or industrial automation system
|
| IM-WP054GE |
Industrial PoE Switch
5*100/1000M, Unmanaged, PoE af/at for port 1~4, 120W budget
DC48V~DC52V dual input
Ideal in CCTV security system
|
| IM-WP054BGE |
Industrial PoE Switch
5*100/1000M, Unmanaged, PoE af/at for port 1~4, 120W budget
DC12V~DC48V dual input, With internal power booster
Ideal in vehicle network or solar power system
|
|
IM-WPD054GE
|
Industrial PoE Switch
5*100/1000M, Unmanaged, 1*PD port(30W/60W/90W)+PoE af/at for port 1~4
No need to use extra power supply
Ideal in CCTV security system
|
| IM-WS050GM |
Industrial Web Managed Switch
5*100M/1000M, Web Managed(QoS, VLAN etc.), Non-PoE
DC12V~DC52V dual input
Ideal in industrial automation systems
|
| IM-WP054GM |
Industrial Web Managed PoE Switch
5*100M/1000M, Web Managed(QoS, VLAN etc.)
PoE af/at for port 1~4, 120W budget, DC48V~DC52V dual input
Ideal in industrial automation systems
|
