5U DWDM Optical Transmission Equipment System
Introduction of DWDM / OTN Transmission Platform

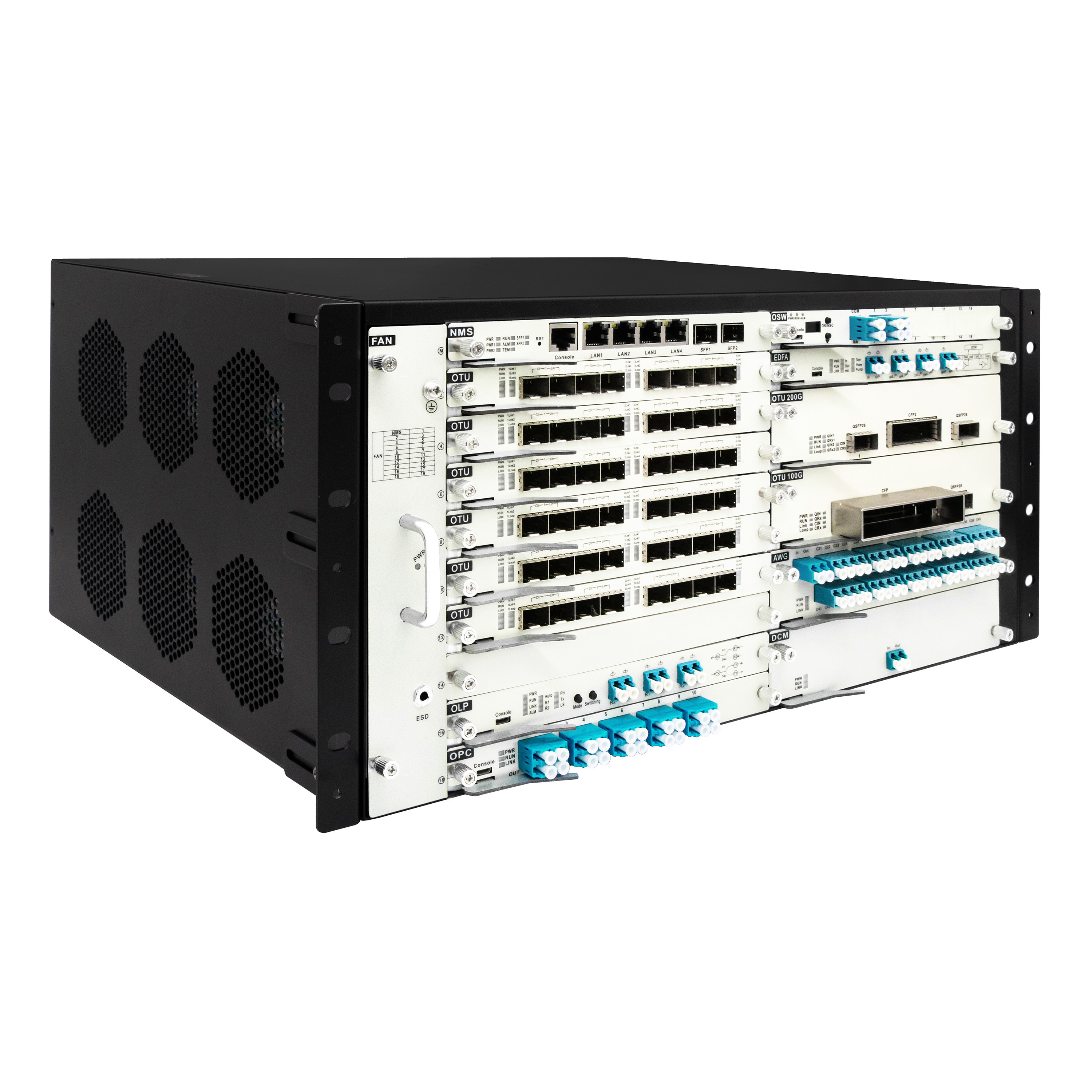

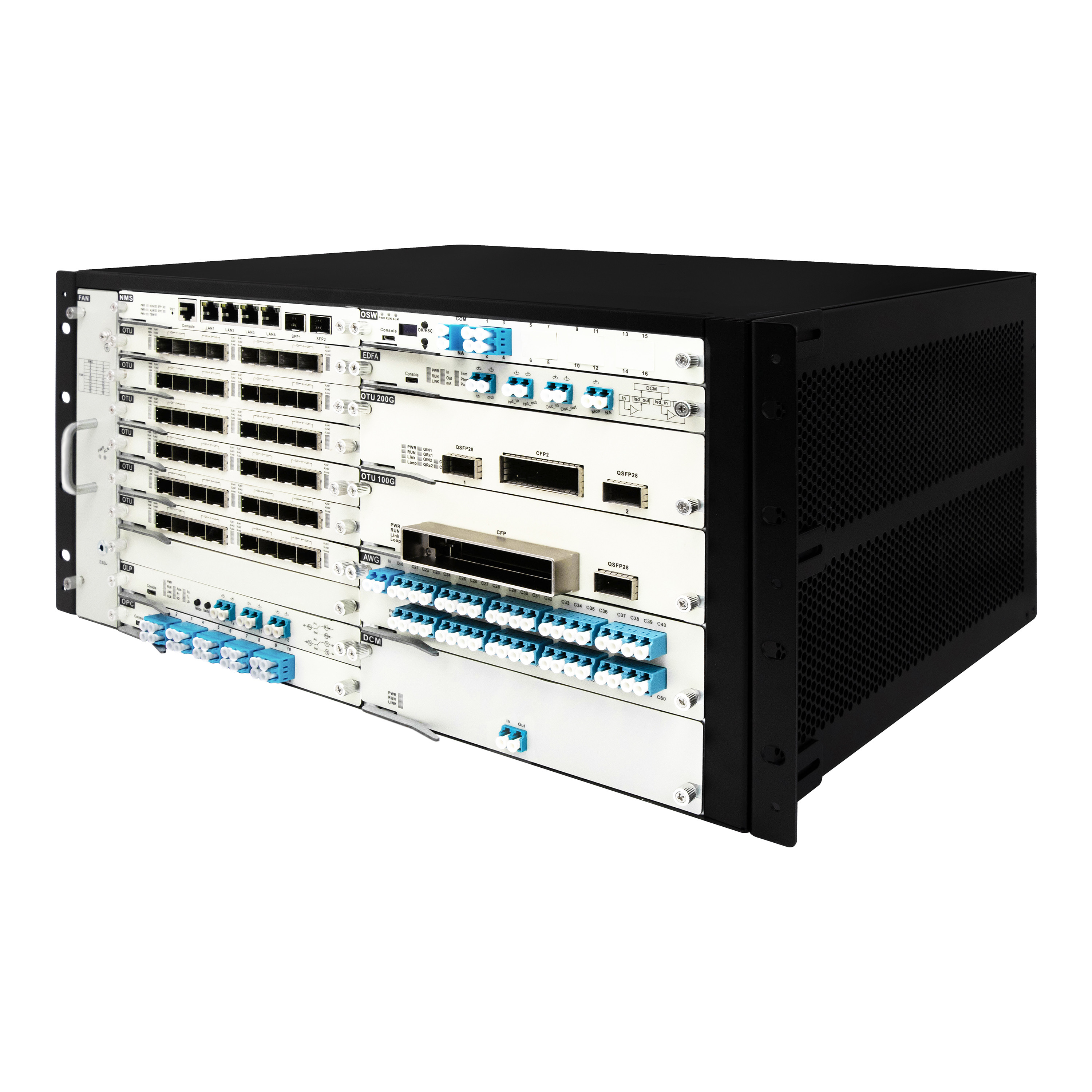

The OM3800-5U is designed with a standard 19-inch 5U rack-mounted, card-insertion structure, the single chassis provides 20 functional module slots, 2 power slots, and 1 fan slot. It adopts a front-panel fiber outlet design, placing all optical interfaces and network management interfaces on the front side. The airflow design adopts a right-to-left ventilation pattern, with an air inlet on the right side of the chassis. Cold air is drawn into the chassis by the cooling fan unit, and then expelled from the left side of the chassis.

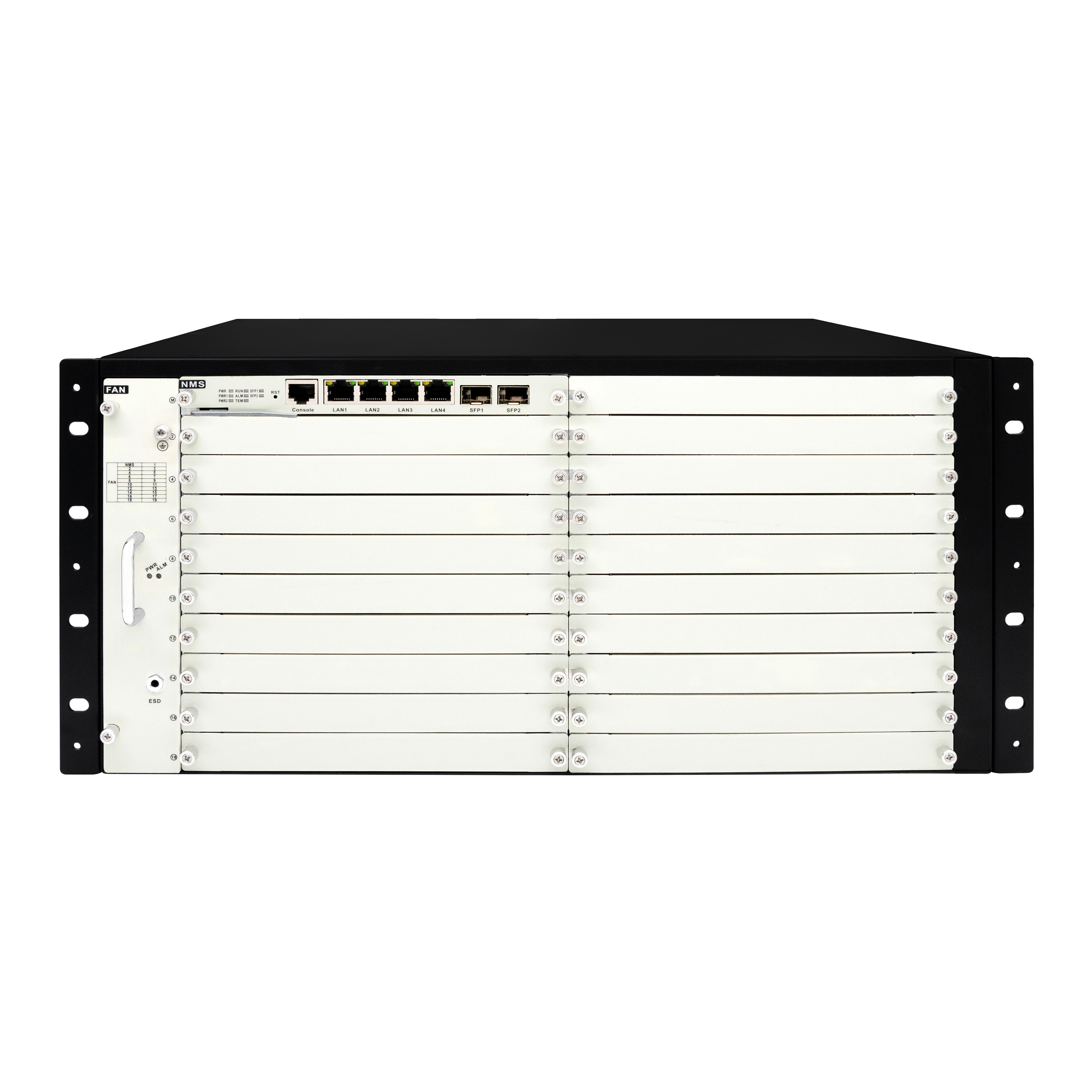

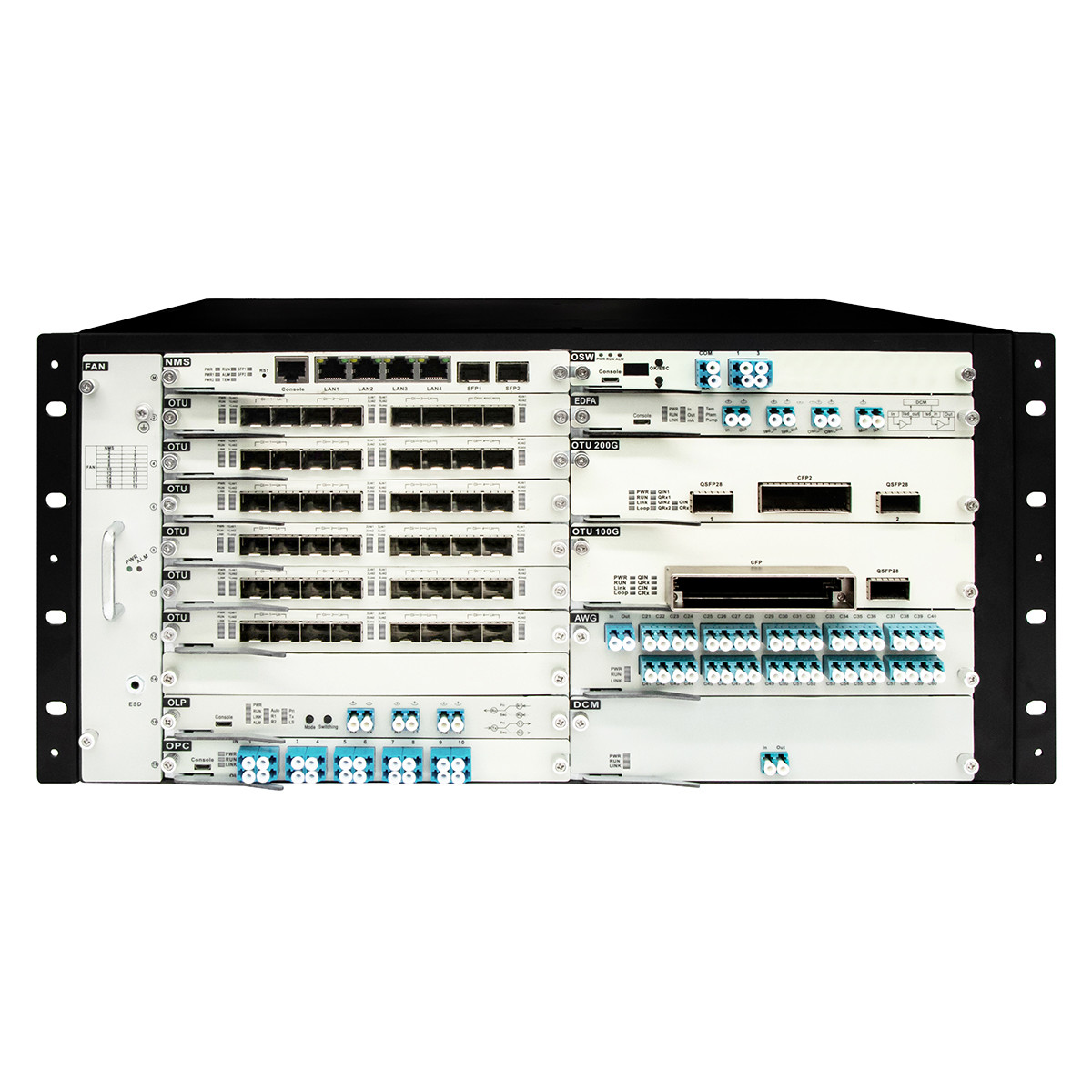

Front panel
Note:
1. SLOT1 is for inserting the NMS (Network Management System) control card, while SLOT2 to 19 can accommodate various types of business cards.
2. FAN Slot: Used for chassis cooling. The PWR indicator being on indicates normal power supply to the fan slot. If the ALM light is red, it signifies a fan malfunction. Normally, the ALM light should be off.
3. Indicator Lights:
- PWR: On - Normal power supply; Off - No power supply or abnormal.
- ALM: On - Fan malfunction or high-temperature alarm; Off - Normal.
Rear panel
1. The power supply (PIU) slot is located at the back of the device, supporting both alternating current (AC - APU) and direct current (DC - DPU) options. The power configuration is 1+1 hot backup, providing redundancy.
2. Indicator Lights:
- PWR-DC, PWR-AC: On - Normal power supply; Off - No power supply or abnormal.
Product Parameters
| Name |
Description |
| Transmission Capacity |
96x10Gbps /96x100Gbps |
| Network Management Unit |
EMS network management disk |
| OTU |
Support 1.25G ~10Gbps,100Gbps
- 1/2/4/8 /10Gbps Fibre Channel
- CPRI: 2/3/4/5/6/7
- 1G/10G Ethernet LAN or WAN PHY
- STM-4/16/64 SONET/SDH
|
| MUX/DEMUX |
Support 8ch/16ch/40ch/48ch |
| EDFA |
EDFA erbium doped fiber amplifier |
| DCM |
DCM:G.652/G655 Dispersion compensation fiber module |
| OLP |
OLP optical protection |
| Size |
Services Card |
191 ( W ) x 253 ( D ) x 20 ( H ) mm |
| 1U 4-slot Chassis |
482.5 ( W ) x 350( D ) x 44.5 ( H ) mm |
| 2U 8-slot Chassis |
482.5 ( W ) x 350( D ) x 89 ( H ) mm |
| 5U 20-slot Chassis |
482.5 ( W ) x 350( D ) x 222.5 ( H ) mm |
| Environment |
Operating Temperature |
-10℃ ~ 60℃ |
| Storage Temperature |
-40℃ ~ 80℃ |
| Relative Humidity |
5% ~ 95% Non-condensing |
| Power Supply Mode |
Dual power supply, AC220V/DC-48V optional |
| Power Consumption |
1U <120W, 2U<200W, 5U<400W |
FAQ
1. Are you a manufacturer?
Yes, we have our production line and R&D team.
Please visit us via below VR link to see our office and production area.
https://www.ecer.com/corp/uuu5b8d-industrialnetworkswitch/vr.html
2. What is the leadtime if I order?
After receiving the payment, we start production.
If you are ordering some popular models, we usually got stock. After some testings, we will ship the materials.
If we do not have stock, production time is usually 7~15 working days for less than 50pcs/pairs.
3. How will you ship my order?
We will send the goods by air(DHL, UPS or FEDEX) or by sea(for bulk order)
It is fine to ship purchased items via customer’s shipping account or forwarder.
It takes 3~5 calendar days to arrive at local customs for clearance.
4. What is MoQ?
1 Pc/Pair.
For many models, we have stock, it is easy to send samples for your testing.
5. Can I have a discount?
Yes and it is usually based on quantity and after sample testing.
