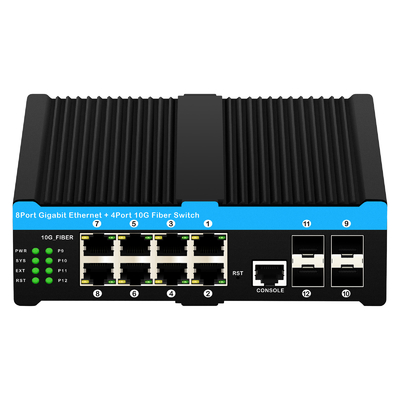

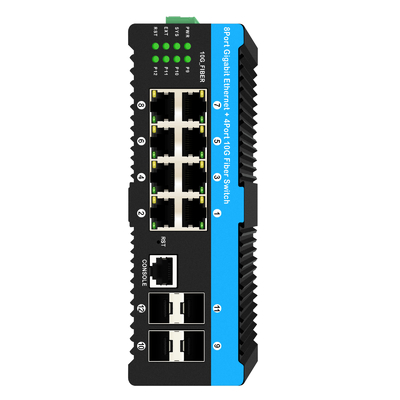

10G L2 L3 managed fiber switch with 8 port PoE
Basic Features of Industrial Managed Switch
- 8x 10/100/1000Base-T RJ-45 and
- 4x 100M/1G/2.5G/10GBase-FX SFP Fiber, one console port
- Support IEEE 802.3af/at power on to 1 ~ 8 RJ45 ports
- 6 KV Ethernet surge protection, adapt to a harsh outdoor environment
- Support Auto MDI/MDIX
- Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
- A store-and-forward switching mechanism
- Operating environment temperature: -40℃~75℃
Specification of 8 Port PoE Switch
| Product Name |
10G Managed Industrial POE Fiber Switch (4F+8TP) |
| Model No. |
IM-FP4X88GW |
| Port |
4x 10GBase-FX SFP+ Fiber
SM: 1310nm/1550nm, 20Km ;1490nm/1550nm, 40~120Km
MM: 1310nm, 2Km
8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
|
| Standard |
IEEE 802.3: 10Base-T 10Mbit/s Ethernet
IEEE 802.3u: 100Base-TX, Fast Ethernet
IEEE 802.3z: 1000Base-T Gbit/s Ethernet over fiber optic
IEEE 802.3ae for 10 Gigabit Ethernet
IEEE 802.1d: STP (Spanning Tree Protocol)
IEEE 802.1s: 100Base-TX, Fast Ethernet
IEEE 802.1w: RSTP (Rapid Spanning Tree Protocol )
ITU-T G.8032 :ERPS (Ethernet Ring Protection Switching)
IEEE 802.1Q: Virtual LANs (VLAN)
IEEE 802.1X: Port based and MAC based Network, Access Control,Authentication
IEEE 802.3ad: Link aggregation for parallel links with LACP(Link Aggregation Control Protocol)
IEEE 802.3x: Flow control for Full Duplex
IEEE 802.1ad: Stacked VLANs
IEEE 802.1p: LAN Layer 2 QoS/CoS Protocol for Traffic Prioritization
IEEE 802.1ab: Link Layer Discovery Protocol (LLDP)
IEEE 802.1az: EEE (Energy Efficient Ethernet)
IEEE802.3af: 15.4W
IEEE802.3at: 30W
|
| VLAND ID |
4094 IEEE802.1Q VLAN VID |
| Switch Architecture |
System bandwidth:176Gbps (non-traffic jam)
DRAM size: 4GB
Switching delay: <10us
Packet buffer :12Mbit
Throughput: 95.23Mpps
Jumbo frame :12KB
MAC function :16K L2
|
| Data Processing |
Store and Forward |
| Flow Control |
IEEE 802.3x for full duplex mode Back pressure for half duplex mode |
|
Network
Connector
|
8x 10/100/1000Base-TX RJ-45
Auto MDI/MDI-X function
|
| Console |
RJ-45 port |
| Network Cable |
UTP/STP above Cat. 5e cable |
| Protocols |
CSMA/CD |
|
Reverse Polarity
Overload Current
Protection
|
Supported
Supported
|
| CPU Watch Dog |
Supported |
| Power Supply |
Redundant DC48V (12~52VDC)
power (Removable Terminal Block )
|
|
Power
Consumption
|
8W(no-load)
18W (Full-load)
|
| LED |
Per unit: Power 1 (Red), SYS (Red), Reset(green)
RJ-45 port: Link/Active (Green) Speed(Yellow)
SFP Fiber port: Link/Active (Green)
Extension indicator
|
| Operating Temperature |
-40 ~ 75°C |
| Operating Humidity |
0% to 95% (Non-condensing) |
| Storage Temperature |
-40 ~ 85°C |
| Dimensions |
165 x 112 x 54mm |
| Weight |
0.85kg |

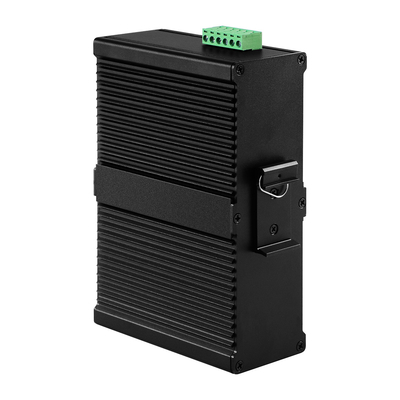

| Installation Mounting |
Din-rail mounting |
| Certification |
CE-EMC:EN 55032:2015+AC:2016+A1:2020+A11:2020
EN 55035:2017+A11:2020/EN IEC 61000-3-2:2019/A1:2021
EN 61000-3-3:2013/A2:2021/AC:2022
CE-LVD: EN IEC 62368-1:2020+A11:2020
FCC: 47 CFR FCC Part 15 Subpart B (Class B)ANSI C63.4:2014
|
| Software Specifications |
| Topology |
| VLAN |
IEEE 802.1q VLAN,up to 4094 802.1Q VLAN VID
IEEE 802.1q VLAN,up to 4094 Groups
IEEE 802.1ad
MAC-based VLAN,up to 256 entries
IP Subnet-based VLAN, up to 128 entries
Protocol-based VLAN(Ethernet, SNAP, LLC), up to 128 entries
VLAN Translation, up to 256 entries
GVRP (GARP VLAN Registration Protocal)
MVR ( Multicast VLAN Registration)
|
|
Link Aggregation
(Port Trunk)
|
Static (Hash with SA, DA, IP, TCP/UDP port), up to 5 trunk group
Dynamic (IEEE 802.3ad LACP), up to 5 trunk group
|
| Spanning Tree |
IEEE802.1d STP
IEEE802.1w RSTP
IEEE802.1s MSTP
|
|
POE/POE+
|
IEEE802.3at 30W
IEEE802.3af 15.4W
|
| Loop Protection |
Supported |
|
ITU-T G.8032
Y.1344 ERPS (Ethernet Ring
Protection)
|
Recovery time <50ms
Single Ring, Sub-Ring, Multiple ring topology network
|
| QoS Features |
| Class of Service |
IEEE802.1p 8 active priorities queues for per port |
| Traffic Classification QoS |
IEEE802.1p based CoS
IP Precedence based CoS
IP DSCP based CoS
|
| Traffic Classification QoS |
QCL(QoS Control List): Frame Type, Source/
Destination MAC, VLAN ID, PCP, DEI
QCE(QoS Control Entry): Protocol, Source IP, IP
Fragment, DSCP, TCP/UDP port number
|
| DiffServ (RF 2474) Remarking |
| Storm Control |
for Unicast, Broadcast, Multicast |
| IP Multicasting Features |
| IGMP / MLD Snooping |
IGMP Snooping v1, v2, v3 / MLD Snooping v1, v2
Port Filtering Profile
Throttling, Fast Leave
Maximum Multicast Group : up to 1022 entries
Query / Static Router Port
|
| Security Features |
|
IEEE 802.1X
|
Port-Based
MAC-Based
|
| ACL |
Number of rules : up to 256 entries
for L2 / L3 / L4
L2 : Mac address SA/DA/VLAN
L3: IP address SA/DA, Subnet
L4: TCP/UDP
|
| RADIUS authentication & accounting |
| TACACS+ authentication & accounting, TACACS+ 3.0 |
| HTTPS, HTTP |
Supported |
| SSL / SSH v2 |
Supported |
|
User Name Password
Authentication
|
Local Authentication
Remote Authentication (via RADIUS / TACACS+)
|
| Management Interface Access Filtering |
Web, Telnet / SSH , CLI RS-232 console
|
| Management Features |
| CLI |
Cisco® like CLI |
| Web Based Management |
| Telnet |
Server |
| SNMP |
V1, V2c, V3 |
|
SW & Configuration
Upgrade
|
TFTP, HTTP
Redundant firmware in case of upgrade failure
|
| Modbus/TCP |
Support for management and monitoring
|
| RMON |
RMON I , RMON II |
| MIB |
RFC1213 MIB II, Private MIB |
|
DHCP
|
Server, Client, Relay, Snooping
Snooping option 82
Relay option 82
|
| IP Source Guard |
Supported |
| Port Mirroring |
Supported |
| Event Syslog |
Syslog server (RFC3164) (Support 1 server ) |
| Warning Message |
System syslog, e-mail, alarm relay |
| NTP |
Client |
| DNS |
Client, Proxy |
| LLDP (IEEE 802.1ab) |
Link Layer Discovery Protocol LLDP-MED |
| IPv6 Features |
| IPv6 Management |
Telnet Server/ICMP v6 |
| SNMP over IPv6 |
Supported |
| SSH over IPv6 |
Supported |
| IPv6 NTP |
Client |
| IPv6 QoS |
Supported |
| HTTP over IPv6 |
Supported |
| IPv6 Telnet |
Supported |
| IPv6 TFTP |
Supported |
|
IPv6 ACL
|
Number of rules: up to 256 entries
for L2 / L3 / L4
L2 : Mac address SA/DA/VLAN
L3: IP address SA/DA, Subnet
L4: TCP/UDP
|
| L3 |
View route, static route,RIP,OSPF,VRRP,NQA |
| Others Features |
|
Green Ethernet
|
Supports IEEE802.3az EEE (Energy Efficient Ethernet)
Management to optimize the power consumption
Determine the cable length and lowering the power
for ports with short cables
Lower the power for a port when there is no link
LED Power Management :Adjustment LEDs intensity
|
| Cable Diagnostic |
Measuring UTP cable normal or broken point distance |
Accessories
| Industrial SFP Transceiver |
| OSPL1E06D-85 |
100BASE-FX (850nm) |
| OSPL1E06D |
100BASE-FX |
| OSPL1E20D |
100BASE-LX |
| OSPL1E40D |
100BASE-EX |
| OSBL1E20D-35 |
100BASE-BX-U (TX 1310 RX1550) |
| OSBL1E20D-53 |
100BASE-BX-D (TX 1550 RX1310) |
| OSPL1G05D |
1000BASE-SX |
| OSPL1G06D |
1000BASE-SX (1310nm) |
| OSPL1G20D |
1000BASE-LX |
| OSPL1G40D |
1000BASE-EX |
| OSBL1G20D-35 |
1000BASE-BX-U (TX 1310 RX1550) |
| OSBL1G20D-53 |
1000BASE-BX-D (TX 1550 RX1310) |
| Industrial Power Adapter Din-rail |
| IM-DAC220/DC48V2.5A |
AC220V to DC48V2.5A, -40～80℃ |
| IM-DAC220/DC48V5A |
AC220V to DC48V5A, -40～80℃ |
| IM-DAC220/DC48V10A |
AC220V to DC48V10A, -40～80℃ |
