Mini 5 Port Industrial Ethernet Switch with 6KV Surge Protection and Wide Temperature Range for Harsh Environments

1 pc
MOQ
Negotiable
Price
Mini 5 Port Industrial Ethernet Switch with 6KV Surge Protection and Wide Temperature Range for Harsh Environments
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Product Name: 5 Port Ethernet Switch
Brand: Olycom/customized/no Brand
Surge Protection: ±6KV
Housing: IP40 Protection Grade, DIN Rail Type
Sample: Available
Communication Mode: Full-Duplex & Half-Duplex
Highlight:

5 port industrial ethernet switch

,

dc12v/24v industrial ethernet switch

,

RJ45 Gigabit Unmanaged Switch
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Olycom
Certification: CE E-Mark
Model Number: IM-FS050GE V1
Payment & Shipping Terms
Packaging Details: 1pc in a box
Delivery Time: 3~5 working days
Payment Terms: T/T,PayPal
Supply Ability: 5000pcs/month
Product Description

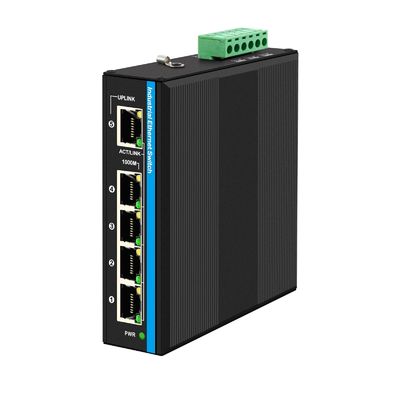

Mini 5 Port Industrial Ethernet Switch
Compact 4 RJ45 port to 1 uplink RJ45 gigabit unmanaged switch with DC12V/24V input and E-Mark certification for industrial applications.
Key Features
  • 4 x 10/100/1000Mbps Auto-sensing RJ45 ports
  • 1 x 10/100/1000Mbps uplink network port
  • 6 KV Ethernet surge protection for harsh outdoor environments
  • Auto MDI/MDIX support
  • Flow control: full duplex with IEEE 802.3x, half-duplex with Back pressure
  • IEEE 802.3 10Base-T and IEEE 802.3u 1000Base-TX compliant
  • Store-and-forward switching mechanism

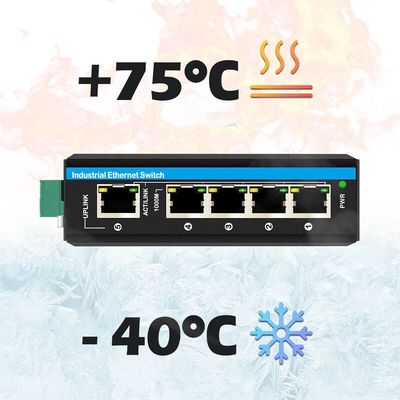

  • Operating temperature: -40°C to 75°C
Mini 5 Port Industrial Ethernet Switch with 6KV Surge Protection and Wide Temperature Range for Harsh Environments 0
Technical Specifications
Product Name 10/100/1000Mbps Industrial Network Switch (5TP)
Model No. IM-FS050GE
Port Configuration 1 x 10/100/1000Mbps uplink network port
4 x 10/100/1000M UTP RJ45 (Support MDI/MDIX auto-sensing)
Switching Features Transmission mode: storage and forward
System bandwidth: 40Gbps (non-traffic jam)
DRAM size: 128M
Flash size: 16M
Packet buffer size: 4Mb
Network Media 10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair (≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair (≤100m)
LED Indicators Power, network
Power Supply Input voltage: DC 12-52V
No-load power: 5W
Reverse connection: supported
Environmental Working temperature: -40°C to 75°C
Storage temperature: -40°C to 85°C
Working humidity: 10% to 90%, non-condensing
Storage humidity: 10% to 95%, non-condensing
Industry Standards EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS: EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8
Traffic Control: NEMA-TS2
Vibration: IEC 60068-2-6
Freefall: IEC 60068-2-32
Shock: IEC 60068-2-27
Rail Traffic: EN 50121-4
Safety CE Mark, commercial CE/LVD EN60950
Mechanical Information Shell: Corrugated metal shell
Safety class: IP40
Dimension: 113.8 x 93 x 34.9mm
Mounting method: Din-rail mounting
Warranty 3 years
Packaging Information
  • Product placed in ESD Bag, then in PE foams with outer carton packaging
  • Standard packing includes main device, warranty card, and user manual
  • Single unit packaging dimension: 23*16.5*5.8cm
  • Bulk packaging: 40pcs per box (67*33*47cm dimension)
Mini 5 Port Industrial Ethernet Switch with 6KV Surge Protection and Wide Temperature Range for Harsh Environments 1 Mini 5 Port Industrial Ethernet Switch with 6KV Surge Protection and Wide Temperature Range for Harsh Environments 2
Quality Production Process
  1. Welding: Weld necessary components onto PCB boards
  2. Cleaning: Remove dust and scraps to prevent dysfunction
  3. Assembling: Build up product components including panels, screws, and PCB boards
  4. Testing: Verify basic functionality after assembly
  5. Aging: 24-48 hour stress test to ensure long-term reliability and check LED indicators and voltage stability
  6. Testing: Validate data processing capabilities, transmission rates, and packet integrity
  7. QC Testing: Final quality check before packaging with product labeling
After completing all quality assurance procedures, products are ready for market distribution.
