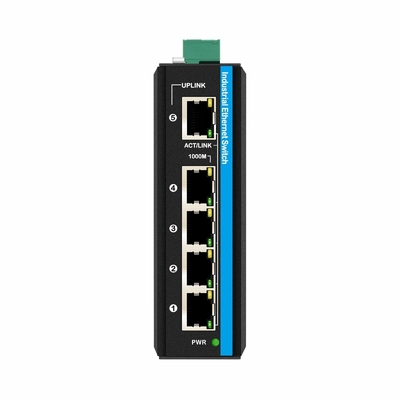

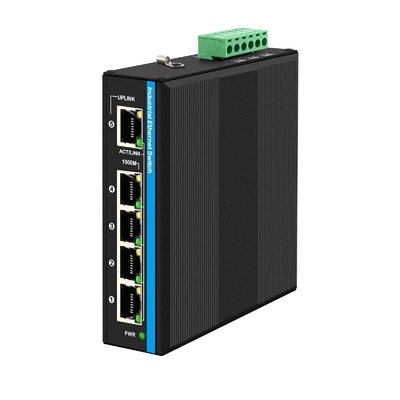

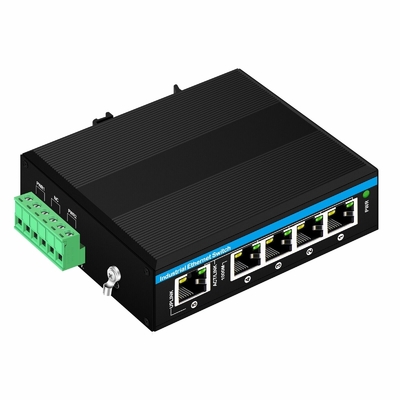

Mini 5 Port Industrial Ethernet Switch 4 RJ45 Port To 1 Uplink RJ45 Gigabit Unmanaged Switch Dc12v/24v Input

Mini 5 port industrial ethernet switch 4 RJ45 port to

1 uplink RJ45 gigabit unmanaged switch dc12v/24v input

Key Features of 5 port unmanaged switch:

• 4 x 10/100/1000Mbps Auto-sensing RJ45 ports
• 1 x 10/100/1000Mbps uplink network port
• 6 KV Ethernet surge protection, adapt to a harsh outdoor environment
• Support Auto MDI/MDIX
• Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
• IEEE 802.3 10Base-T and IEEE 802.3u 1000Base-TX compliant
• A store-and-forward switching mechanism

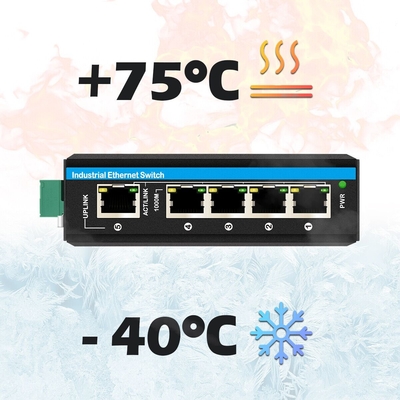

• Operating environment temperature:-40 ° ~75 ° c

Specification of voltage booster switch


Packing box of Din rail unmanaged switch:


• Put the product in an ESD Bag, then placed in PE foams with outer carton packaging.
• The standard packing usually contains a main device, a warranty card and a user manual.
• Packing box dimension for 1pc: 23*16.5*5.8cm
• 40pcs in a packing box of 67*33*47cm dimension.


Production Steps:


Welding: Weld the necessary components

Cleaning: To avoid any possible dysfunction due to dust or scraps on the PCB boards.

Assembling: Builds up components of a product, like panels, screws, PCB boards.

Testing: To make sure the product is basically working fine after assembling

Aging: To check if the product can work smoothly for long time without any minors such as LED indicators, voltage. This will usually last for 24 to 48 hours.

Testing: To test if the product can process data or video signals correctly. Any data loss? Transmission rate correct? Any data packet failure? Such questions would be verified in this procedure.

QC testing: This is the third and also last check of product quality. If it goes good, our packing staff will pack it up according to customer requirements and attach to the packing box a product label.

When all above is done, the product will go to market.
