Name: Cisco Compatible 100Gbps 100KM QSFP28 SFP Transceiver SM ZR4 Optical Transceiver Module
Brand: Shenzhen Olycom Technology Co., Ltd.
SKU: OQSPLHG80D
Price: 57.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: 100G SFP Module

Form Factor: QSFP28

Use: FTTH FTTB FTTX Network

Distance: 80km

Date Rate: 100G

Sample: Available

Highlight:

100KM QSFP28 SFP Transceiver

100Gbps QSFP28 SFP Transceiver

QSFP28 Optical Transceiver Module

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: Olycom

Certification: CE RoHS FCC ISO9001

Model Number: OQSPLHG80D

Payment & Shipping Terms

Packaging Details: 1pc in a box

Delivery Time: 3~5 working days

Payment Terms: T/T, PayPal

Supply Ability: 5000pcs/month

Gallery

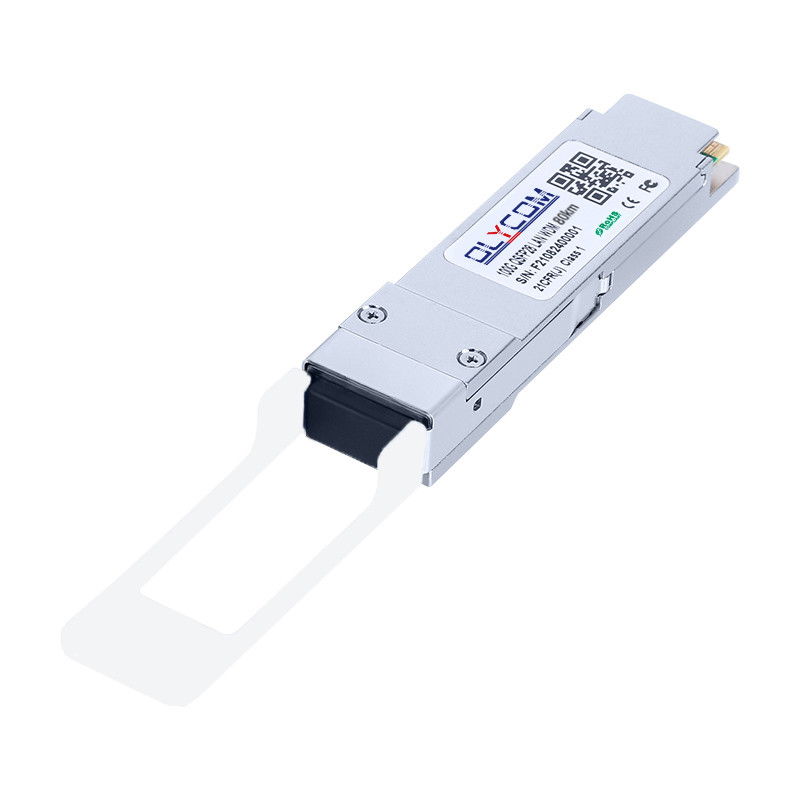

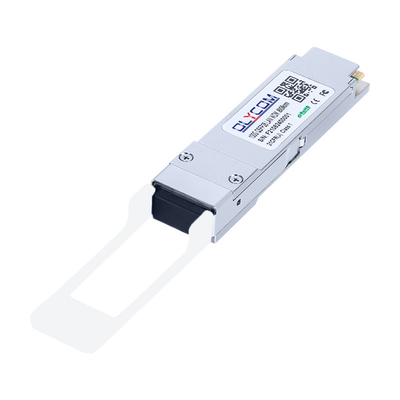

Cisco Compatible 100Gbps 100KM QSFP28 SFP Transceiver SM ZR4 Optical Transceiver Module

Product Description

Cisco Compatible 100Gbps 100KM

QSFP28 SFP Transceiver SM ZR4 Optical Transceiver Module

Key Features of 100Gpbs SFP Module

Support line rates from 103.125 Gb/s
Lane bit rate 25.78 Gb/s 100GE
Up to 80km transmission with KR4-FEC
LAN WDM EML laser and PIN receiver with SOA
Support Multi-Pin function with IntL/RxLOSL and LPMode/TxDIS
High speed I/O electrical interface (CAUI-4)
I2C interface with integrated Digital Diagnostic monitoring
QSFP28 MSA package with duplex LC connector
Single +3.3V power supply
Maximum power consumption 4.5 W
Complies with EU Directive 2015/863/EU
Operating case temperature: 0 to +70 °C

Absolute Maximum Ratings

Parameter	Symbol	Min.	Max.	Unit
Storage Temperature	TS	-40	+85	°C
Maximum Supply Voltage	VCC	-0.5	3.6	V
Operating Relative Humidity	RH		85	%

Recommended Operating Environment

Parameter	Symbol	Min.	Typical	Max.	Unit	Notes
Operating Case Temperature	T_C	0		+70	°C
Power Supply Voltage	V_CC	3.13	3.3	3.47	V
Power Supply Current	I_CC			1.82	A
Maximum Power Dissipation	P_D			4.5	W
Aggregate Bit Rate	BR_AVE		103.125		Gb/s
Lane Bit Rate	BR_LANE		25.78125		Gb/s
Transmission Distance	TD			80	km
Coupled fiber	Single mode fiber					9/125um SMF

Optical and Electrical Characteristics

Parameter	Symbol	Min.	Typical	Max.	Unit	Notes
Transmitter
Signaling Speed per Lane			25.78125		Gbps
Lane Wavelengt	L0	1294.53	1295.56	1296.59	nm
	L1	1299.02	1300.05	1301.09	nm
	L2	1303.54	1304.58	1305.63	nm
	L3	1308.09	1309.14	1310.19	nm
Total Launch Power, 100GE	P_T	7		12.5	dBm	1
Average Launch Power per Lane,	Pavg	1		6.5	dBm	1
OMA, each Lane	P_OMA	2		6.5	dBm	1
Difference in launch power between any two lanes(Average and OMA) between any Two Lanes (OMA)	Ptx,diff			3	dB
Average Output Power (Laser Turn off)	P_off			-30	dBm
Side Mode Suppression Ratio	SMSR	30			dB
Extinction Ratio, 100GE	ER	8.2			dB
RIN20OMA	RIN			-130	dB/Hz
Optical Return Loss Tolerance	TOL			20	dB
Transmitter Reflectance	R_T			-12	dB
Optical Eye Mask	{0.25,0.4, 0.45, 0.25, 0.28, 0.4}				%	2
Receiver
Signaling rate, each lane			25.78125		Gbps
Center Wavelength Lane 0	λ0	1294.53	1295.56	1296.59	nm
Center Wavelength Lane 1	λ1	1299.02	1300.05	1301.09	nm
Center Wavelength Lane 2	λ2	1303.54	1304.58	1305.63	nm
Center Wavelength Lane 3	λ3	1308.09	1309.14	1310.19	nm
Damage threshold , each lane	Pdamage	5.5			dBm
Average Receive Power, each lane		-28		-6	dBm	3
Receiver sensitivity Average, each lane	SEN			-27	dBm	3
Los Assert	LosA	-36			dBm
Los De-assert	LosDA			-28	dBm
Los Hysteresis	LosH	0.5		5	dB

Packing

Cisco Compatible 100Gbps 100KM QSFP28 SFP Transceiver SM ZR4 Optical Transceiver Module 1

Dimension

Cisco Compatible 100Gbps 100KM QSFP28 SFP Transceiver SM ZR4 Optical Transceiver Module 2

Ordering information

Part Number	Product Description
OQSPLHG80D	100Gbps QSFP28 ZR4, LC, 80km, 0°C~+70°C, with DDM

Advantage

1. Are you a manufacturer?

Yes, we have our production line and R&D team.

2. How will you ship my order?

We will send the goods by air(DHL, UPS or FEDEX) or by sea(for bulk order)

It is fine to ship purchased items via customer’s shipping account or forwarder.

It takes 3~5 calendar days to arrive at local customs for clearance.

3. What is MoQ?

1 Pc/Pair.

For many models, we have stock, it is easy to send samples for your testing.

4. Can I have a discount?

Yes and it is usually based on quantity and after sample testing.

5. What is your payment terms?

In most cases we do T/T wire transfer and full amount should be collected before shipment.

For sample orders, we receive PayPal payment for shorter processing time.

Sometimes Alipay or WeChat payment is fine, it depends on the cases.
