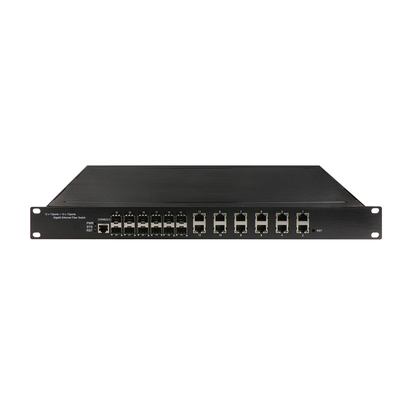

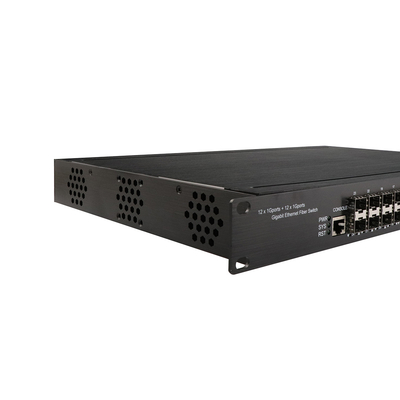

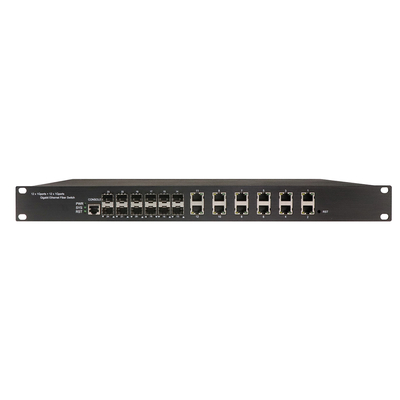

Factory 24 port gigabit oem/odm L2 managed
12rj45 12sfp 1U Rack-mount ethernet switch
Introduction of gigabit 24 port switch
IM-FP121212GW series is the 10/100/1000 Mbps industrial POE fiber switch, comply with IEEE802.3af, power on POE IP cameras through the Ethernet cable, operating temperature-40 ℃to + 85℃, support wide voltage dual power input, meet IP30 protection degree and EMC industrial grade requirements, support many managed functions, include RSTP IGMP, VLAN, Qos, IPV6, Loop protection, ERPS and so on. pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.
Specification of 24 ports POE Ethernet Switch
| Model No. |
IM-FP121212GW |
| Standard |
IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az |
| VLAND ID |
4096 |
| Jumbo Frame |
9.6KB |
| MAC Address Table Size |
8K |
| Poe Standard |
IEEE802.3af, total MAX power is 340W |
| Switching features |
Transmission mode:storage and forward
System bandwidth:58Gbps (non-traffic jam)
DRAM size: 128M Flash size: 16M Packet buffer size: 4Mb
|
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km
|
| LEDs |
Power, network, fiber |
| Power supply |
Input voltage:DC48V
Non-polar power input :support
|
| Environment |
Working temperature:-40°～ 75°C
Working humidity:5%～95%,non-condensing
|
| Industry Standards |
EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A, EN61000-6-4- Emission for industrial environment
EMS:EN61000-6-2-Immunity for industrial environment, EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8
Traffic Control:NEMA-TS2, Vibration:IEC 60068-2-6
Freefall:IEC 60068-2-32, Shock:IEC 60068-2-27
Rail Traffic:EN 50121-4
|
| Mechanical information |
Safety class:IP30
Dimension:483x 275 x 44.5mm
|
| Warranty |
3 years |
Dimension

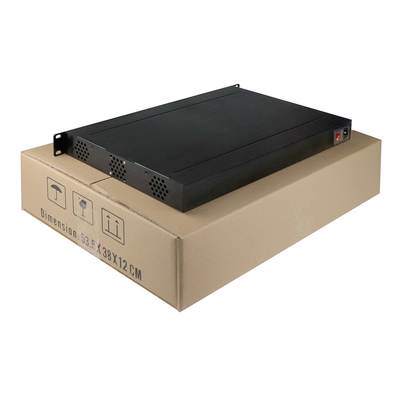

| PACKING LIST |
CONTENT |
QTY |
UNIT |
| 24-port gigabit managed industrial PoE+ switch |
1 |
SET |
| User Manual |
1 |
PC |
| Warranty Card |
1 |
PC |
| Removable Terminal Block |
1 |
PC |
| Note: Industrial POE Switch does not include the power supply and SFP module. |
FAQ:
1. What certification is available?
A: We have CE/FCC/RoHS certificates for our network switches.
2. How can I get a sample unit for testing?
A: We have many Amazon stores. Please search our brand Olycom or the model names if you know. You are also welcome to talk with us for a standard purchase.
3. What is your payment terms?
In most cases we do T/T wire transfer and full amount should be collected before shipment.
For sample orders, we receive PayPal payment for shorter processing time.
Sometimes Alipay or WeChat payment is fine, it depends on the cases.
4. What is the power surge?
A: 6KV. This is the popular standard on the market now.
5. Is it an option to just have PCBs from us?
A: Yes, as a source factory, we have many PCBs in stock, it is fine to supply boards with enclosure.
