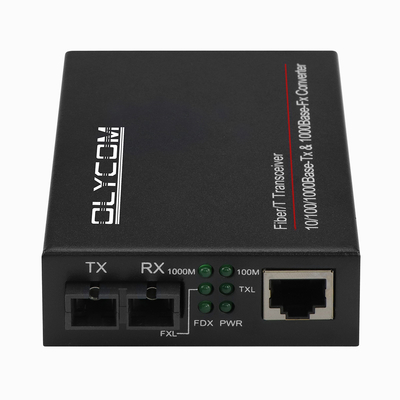

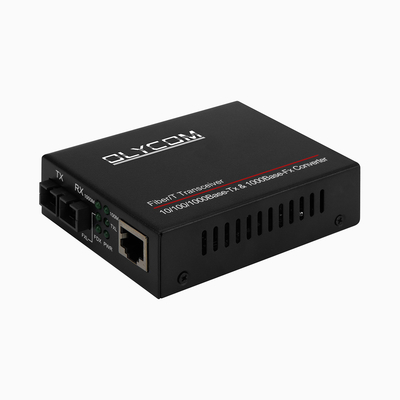

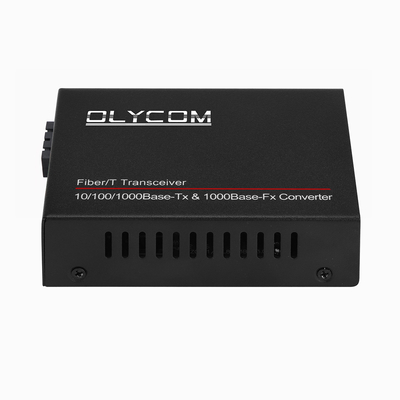

10/100/1000M Single Mode duplex SC Connector
80KM Fiber Media Converter optical fiber to RJ45 convert
Key Features of 10/100/1000mbps Fiber Optic Media Converter
- 10/100/1000Mbps autosensing, auto-MDI/MDIX
- 1600byte super data packet transmission
- Full duplex-flow control, Half duplex-back pressure
- Full- positioned LEDs to indicate power and network status
- Available for 14 slots rack
Specification of Single Mode 80km Transceiver
| Standard |
IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet),
IEE802.3z 1000BASE-SX/LX(Gigabit-Ethernet), IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree
|
| 10/100/1000BASE-T |
STP or UTP Category 5/5e/6 cable (Max. 100m) |
| 1000BASE-FX |
9/125um singlemode fiber cable (80km) |
| Conversion Mode / Delay Time |
Store-and-Forward < 10us, straight-through<0.9us |
| Flow control |
Full duplex-flow control, Half duplex-back pressure |
| RJ-45 Port |
Auto-MDI/MDIX |
| Fiber Connector |
SC standard, ST/FC optional |
| Wavelength |
1550nm |
| Dimensions |
70mm(W) x 93mm(D) x 25mm(H) |
| Weight |
Net weight : 0.16kg; Gross weight : 0.42kg |

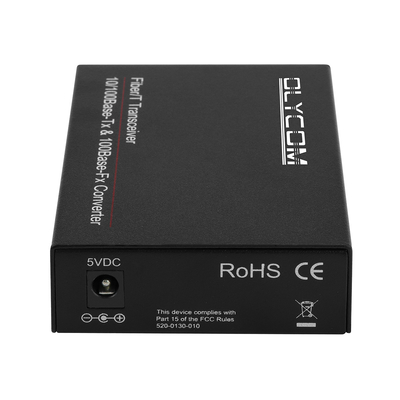

| Input Voltage |
DC 5V1A with External power adapter |
| Power Consumption |
<2.5W |
| MTBF |
50,000 hours |
| BER |
<1/1000000000 |
| MAC Address Table |
1K |
| Buffer Size |
128K |
| Operating Temperature |
0℃~50℃ |
| Storage Temperature |
-40℃~70℃ |
| Storage Humidity |
5%~90% non-condescending |
Application
- Telecommunication Networks
- Schools, offices, Cyber bars
Packing
Ordering Details:
| TA310G-GE/M05 |
10/100/1000M, Standalone, dual fiber, multimode, SC, 0.5km, external power supply |
| TA310G-GE/S20 |
10/100/1000M, Standalone, dual fiber, single mode, SC, 25km, external power supply |
| TA310G-GE/S40 |
10/100/1000M, Standalone, dual fiber, single mode, SC, 40km, external power supply |
| TA310G-GE/S60 |
10/100/1000M, Standalone, dual fiber, single mode, SC- 60km, external power supply |
| TA310G-GE/S80 |
10/100/1000M, Standalone, dual fiber, single mode, SC- 80km, external power supply |
| TA310G-GE/S100 |
10/100/1000M, Standalone, dual fiber, single mode, SC, 100km, external power supply |
| TA310G-GE/S120 |
10/100/1000M, Standalone, dual fiber, single mode, SC, 120km, external power supply |
FAQ:
1. Are you a manufacturer?
Yes, we have our production line and R&D team.
Please visit us via below VR link to see our office and production area.
https://www.ecer.com/corp/uuu5b8d-industrialnetworkswitch/vr.html
2. What is the leadtime if I order?
After receiving the payment, we start production.
If you are ordering some popular models, we usually got stock. After some testings, we will ship the materials.
If we do not have stock, production time is usually 3~5 working days for less than 50pcs/pairs.
3. How will you ship my order?
We will send the goods by air(DHL, UPS or FEDEX) or by sea(for bulk order)
It is fine to ship purchased items via customer’s shipping account or forwarder.
It takes 3~5 calendar days to arrive at local customs for clearance.
4. What is MoQ?
1 Pc/Pair.
For many models, we have stock, it is easy to send samples for your testing.
5. Can I have a discount?
Yes and it is usually based on quantity and after sample testing.
