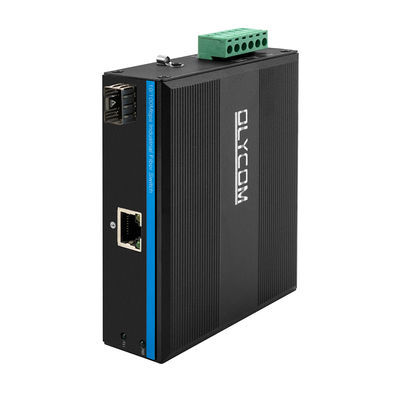

Mini 2 port 10/100mpbs Industrial fiber media converter
with 1RJ45+1SFP LC ethernet switch for outdoor use
Key Features of Industrial Fiber Media Converter
- 1×10/100 Mbps auto-negotiation RJ45 port
- 1×100 Mbps SFP fiber slot

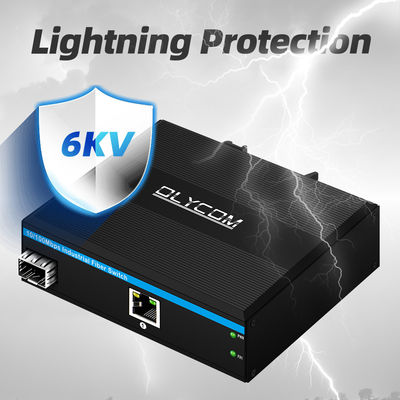

- Built-in 6KV Ethernet surge protection, suitable for harsh outdoor deployment scenarios
- Auto MDI/MDIX crossover detection supported
- Flow control: IEEE 802.3x standard for full-duplex mode; backpressure mechanism for half-duplex mode
- Compliant with IEEE 802.3 10Base‑T and IEEE 802.3u 100Base‑TX standards
- Adopts store-and-forward switching architecture
Specification of Ethernet switch for outdoor use
| Product Name |
10/100Mbps Industrial Fiber Media Converter (1TP+1F) |
| Model No. |
IM-MC110FE |
| Switching features |
Transmission mode:storage and forward
System bandwidth:40Gbps (non-traffic jam)
DRAM size: 128M Flash size: 16M
Packet buffer size: 4Mb
|
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100BASE-TX: CAT5 or above shielded twisted pair(≤100m)
SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km
|
| LEDs |
Power, network, fiber |
| Power supply |
Input voltage:DC 12-52V
No-load power:5W
Reverse connection:support
|
| Environment |

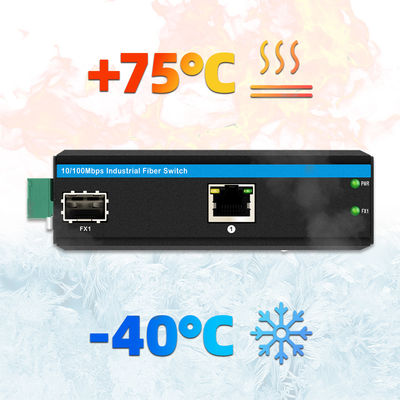

Working temperature:-40°～ 75°C
Storage temperature:-40°～ 85°C
Working humidity:10%～90%,non-condensing
Storage humidity:10%～95%,non-condensing
|
| Industry Standards |
EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A
EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8
Traffic Control:NEMA-TS2
Vibration:IEC 60068-2-6
Freefall:IEC 60068-2-32
Shock:IEC 60068-2-27
Rail Traffic:EN 50121-4
|
| Safety |
CE Mark ,commercial
CE/LVD EN60950
|

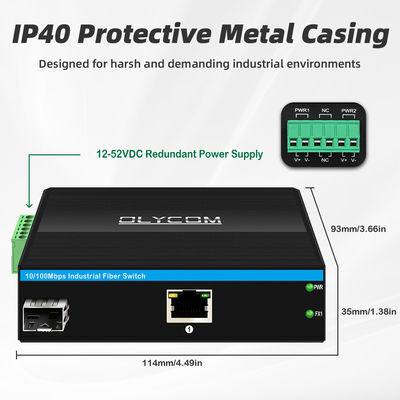

| Mechanical information |
Shell:Corrugated metal shell
Safety class:IP40
Dimension: 113.8 x 93 x 34.9mm

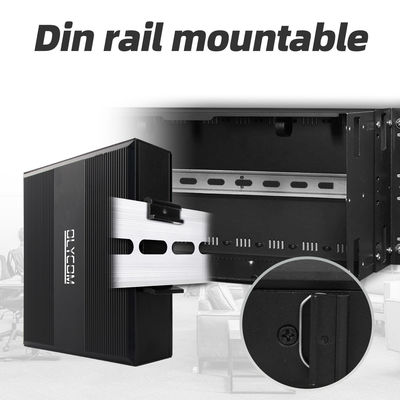

Mounting method:Din-rail mounting
|
| Warranty |
3 years |
Application
Packing of unmanaged switch
| PACKING LIST |
CONTENT |
QTY |
UNIT |
| 2-port 10/100mpbs Industrial Fiber Media Converter |
1 |
SET |
| User Manual |
1 |
PC |
| Warranty Card |
1 |
PC |
| Removable Terminal Block |
1 |
PC |
| Note: Industrial Switch does not include the power supply and SFP module. |
FAQ
1. What installation method does it support?
A: It supports Din Rail and wall mounting.
If a special mounting kit is required, it is OK, we dealt with it before.
2. Is it managed?
A: No, this series is unmanaged.
We have another managed series for your choice.
3. What is in the packing box?
A: there is a device, protective foam, user manual and warranty card.
For some models, there will be extra material like console cable or mounting hangers.
4. Can I have my logo on the device?
A: Yes, we are an OEM manufacturer.
Please just send your logo in PS/AI format, we will take care of the rest.
5. Can you help write the label content?
A: Yes,please let us know if you need to put your model name/logo/description on the label.
The standard language is English. If this is about some different languages like Korean, Italian or Russian, please just send the accurate format, we will copy and paste.
