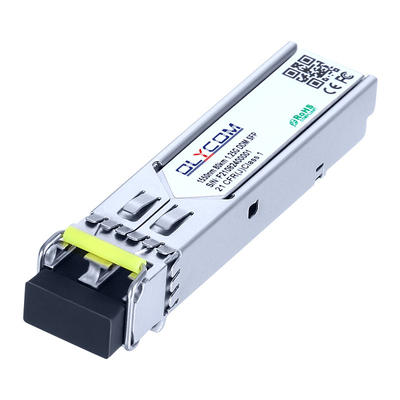

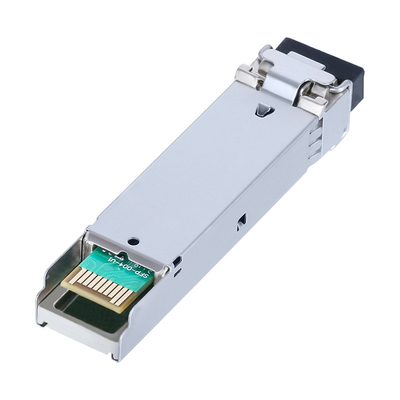

Cisco Compatible 1.25G 80Km 1550nm
SM duplex LC Fiber Optical Transceiver SFP module
Introduction of 1.25Gpbs SFP Module
- The SFP transceivers are high performance, cost effective modules supporting data rate of 1.25Gbps and 80km transmission distance with SMF.
- The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
- The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
Absolute Maximum Ratings
| Parameter |
Symbol |
Min |
Max |
Unit |
| Supply Voltage |
Vcc |
-0.5 |
4.5 |
V |
| Storage Temperature |
Ts |
-40 |
+85 |
°C |
| Operating Humidity |
- |
5 |
85 |
% |
Recommended Operating Environment
| Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
| Operating Case Temperature |
Standard |
Tc |
0 |
|
+70 |
°C |
| Extended |
-20 |
|
+80 |
°C |
| Industrial |
-40 |
|
+85 |
°C |
| Power Supply Voltage |
Vcc |
3.135 |
3.30 |
3.465 |
V |
| Power Supply Current |
Icc |
|
|
300 |
mA |
| Data Rate |
|
0.1 |
1.25 |
|
Gbps |
Optical and Electrical Characteristics
| Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
Notes |
| Transmitter |
| Centre Wavelength |
λc |
1530 |
1550 |
1570 |
nm |
|
| Spectral Width(-20dB) |
Δλ |
|
|
1 |
nm |
|
| Side-Mode Suppression Ratio |
SMSR |
30 |
- |
- |
dB |
|
| Average Output Power |
Pout |
0 |
|
+5 |
dBm |
1 |
| Extinction Ratio |
ER |
9.0 |
|
|
dB |
|
| Data Input Swing Differential |
VIN |
180 |
|
1200 |
mV |
2 |
| Input Differential Impedance |
ZIN |
90 |
100 |
110 |
Ω |
|
| TX Disable |
Disable |
|
2.0 |
|
Vcc |
V |
|
| Enable |
|
0 |
|
0.8 |
V |
|
| TX Fault |
Fault |
|
2.0 |
|
Vcc |
V |
|
| Normal |
|
0 |
|
0.8 |
V |
|
| Receiver |
| Centre Wavelength |
λc |
1260 |
|
1610 |
nm |
|
| Receiver Sensitivity |
|
|
|
-26 |
dBm |
3 |
| Receiver Overload |
|
-1 |
|
|
dBm |
3 |
| LOS De-Assert |
LOSD |
|
|
-27 |
dBm |
|
| LOS Assert |
LOSA |
-38 |
|
|
dBm |
|
| LOS Hysteresis |
|
0.5 |
|
4 |
dB |
|
| Data Output Swing Differential |
Vout |
600 |
800 |
1000 |
mV |
4 |
| LOS |
High |
2.0 |
|
Vcc |
V |
|
| Low |
|
|
0.8 |
V |
|
Mechanical Dimensions
Ordering information
| Part Number |
Product Description |
| OSPL1G80D |
1550nm, 1.25Gbps, LC, 80km, 0°C~+70°C, with DDM |
| OSPL1G80DI |
1550nm, 1.25Gbps, LC, 80km, -40°C~+85°C, with DDM |
