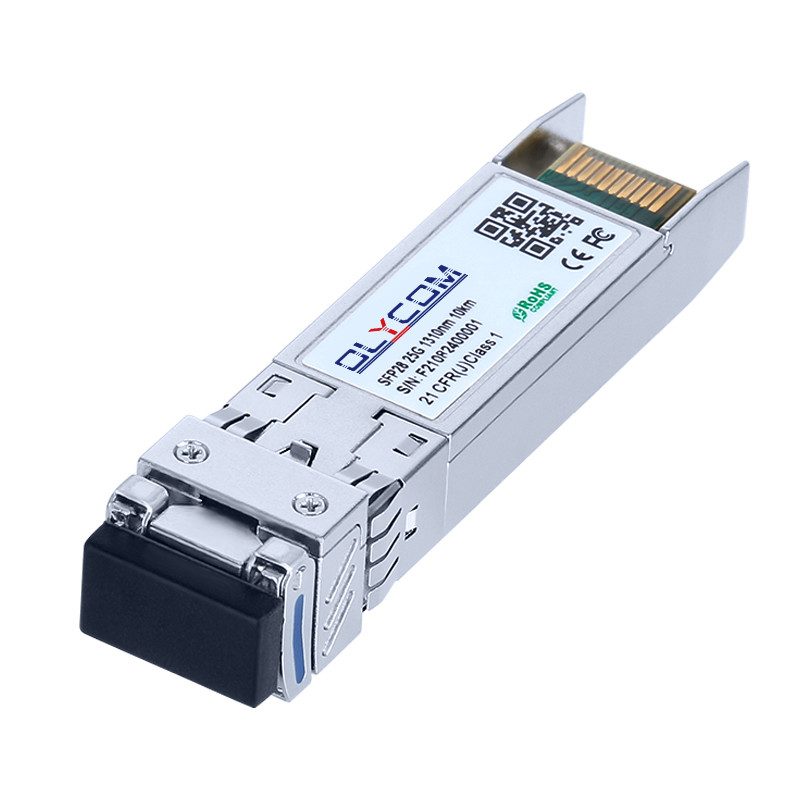

Name: 25Gpbs SFP28 Transceiver Single Mode 10km 1271~1371nm SFP Module With DDM
Brand: Shenzhen Olycom Technology Co., Ltd.
SKU: OSPLTG10D
Price: 57.00 USD
Availability: InStock

25Gpbs SFP28 Transceiver Single Mode 10km 1271~1371nm SFP Module With DDM

1 pc

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: 25G SFP Transceiver

Certificaiton: CE FCC ROHS Compliance

Wavelength: 1271~1371nm

Distance: 10km

Date Rate: 25G

Sample: Available

Highlight:

25Gpbs SFP28 Transceiver

SFP Module With DDM

10km SFP28 Transceiver

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: Olycom

Certification: CE RoHS FCC ISO9001

Model Number: OSPLTG10D

Payment & Shipping Terms

Packaging Details: 1pc in a box

Delivery Time: 3~5 working days

Payment Terms: T/T, PayPal

Supply Ability: 5000pcs/month

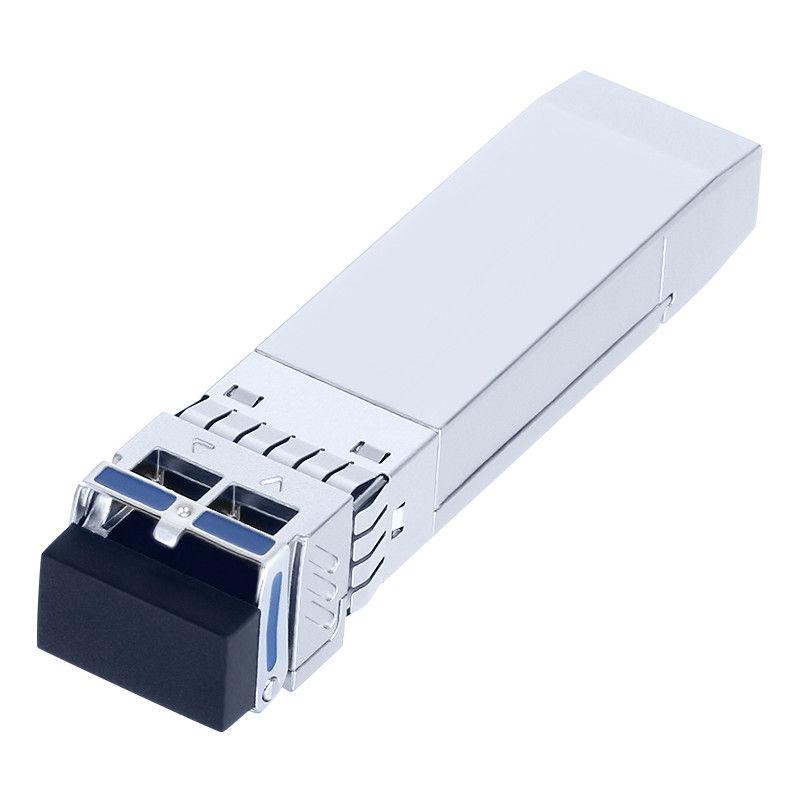

Gallery

25Gpbs SFP28 Transceiver Single Mode 10km 1271~1371nm SFP Module With DDM

Product Description

25Gpbs SFP28 Transceiver single mode

10km 1271~1371nm with DDM SFP module

Key Features of 25Gpbs SFP Module

Supports up to 25.78Gbps bit rates
Hot-pluggable SFP+ footprint
CWDM DFB laser and PIN photodiode, Up to 10km for SMF transmission
Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
Compatible with RoHS
Single +3.3V power supply
Real Time Digital Diagnostic Monitoring
Operating case temperature:
Standard: 0 to +70℃

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Supply Voltage	Vcc	-0.5	4.5	V
Storage Temperature	Ts	-40	+85	°C
Operating Humidity	-	5	85	%

Recommended Operating Environment

Parameter	Symbol	Min	Typical	Max	Unit
Operating Case Temperature	Tc	0		+70	°C
Power Supply Voltage	Vcc	3.135	3.30	3.465	V
Power Supply Current	Icc			400	mA
Data Rate			25.78		Gbps

Optical and Electrical Characteristics

Parameter		Symbol		Min	Typical	Max	Unit	Notes
Transmitter
Centre Wavelength			λc	λc-6.5	λc	λc+6.5	nm
Spectral Width(-20dB)			Δλ			1	nm
Side-Mode Suppression Ratio			SMSR	30	-		dB
Average Output Power			P_out	0		6	dBm	1
Extinction Ratio			ER	3.5			dB
Data Input Swing Differential			V_IN	180		850	mV	2
Input Differential Impedance			Z_IN	90	100	110	Ω
TX Disable	Disable			2.0		Vcc	V
TX Disable	Enable			0		0.8	V
TX Fault	Fault			2.0		Vcc	V
TX Fault	Normal			0		0.8	V
Receiver
Centre Wavelength			λc	1260		1620	nm
Receiver Sensitivity						-13.3	dBm	3
Receiver Overload						2	dBm	3
LOS De-Assert			LOS_D			-15	dBm
LOS Assert			LOS_A	-30			dBm
LOS Hysteresis				0.5			dB
Data Output Swing Differential			V_out	300		900	mV	4
LOS			High	2.0		Vcc	V
LOS			Low			0.8	V

Packing

25Gpbs SFP28 Transceiver Single Mode 10km 1271~1371nm SFP Module With DDM 1

Ordering information

Part Number	Product Description
OSPLTG10D	1271~1371nm, 25.78Gbps, LC, 10km, 0°C~+70°C, with DDM

λC Wavelength Guide
Code	λC	Unit	Code	λC	Unit	Code	λC	Unit	Code	λC	Unit
27	1271	nm	29	1291	nm	31	1311	nm	33	1331	nm
35	1351	nm	37	1371	nm

Advantage

1. Are you a manufacturer?

Yes, we have our production line and R&D team.

2. How will you ship my order?

We will send the goods by air(DHL, UPS or FEDEX) or by sea(for bulk order)

It is fine to ship purchased items via customer’s shipping account or forwarder.

It takes 3~5 calendar days to arrive at local customs for clearance.

3. What is MoQ?

1 Pc/Pair.

For many models, we have stock, it is easy to send samples for your testing.

4. Can I have a discount?

Yes and it is usually based on quantity and after sample testing.

5. What is your payment terms?

In most cases we do T/T wire transfer and full amount should be collected before shipment.

For sample orders, we receive PayPal payment for shorter processing time.

Sometimes Alipay or WeChat payment is fine, it depends on the cases.
