Olycom Managed Gigabit Industrial PoE++ Switch
Introduction of 2.5G PoE Switch

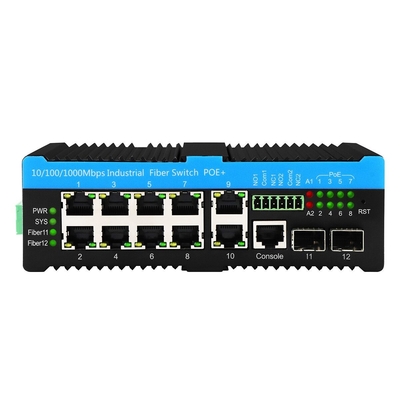

IM-FP21008GW is Gigabit Managed 10-port, L2 Gigabit Ethernet 90W PoE Ring Switch.
It provides IEEE802.3af/at/bt compliant up to 90W PoE power on 8 copper ports for a total power of 720W, enabling it to provide power for the most demanding PoE applications for PTz domes, LED lighting and wireless products.
It is compliant to G8032 ERPS V1/V2 Ring protocol.

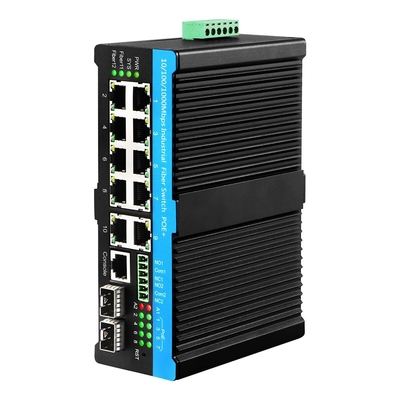

This Managed Ethernet Switch is uniquely designed for outdoor enclosure applications with a ribbed temperature disbursement chassis, 6kv surge protection and user programmable port thermal protection of over-temperature shut down to prevent damage to this PoE switch from excessive heat.
Specification of Managed Fiber Switch
| Product Name |
10/100/1000Mbps Managed Industrial POE Fiber Switch (2F+10TP) |
| Model No. |
IM-FP21008GW |
| Port |
2x 100/1000/2500Base-FX SFP Fiber
SM:1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM:1310nm, 2Km;
8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
|
|
Data Processing
|
Store and Forward
|
|
MAC Address Table
|
8K
|
|
Warning Message
|
System Syslog, alarm relay
|
|
Operating Temperature
|
-40 ~ 75°C
|
|
Dimensions
|
165 x 112 x 45.5mm
|
|
Weight
|
0.85kg
|
|
Installation Mounting
|

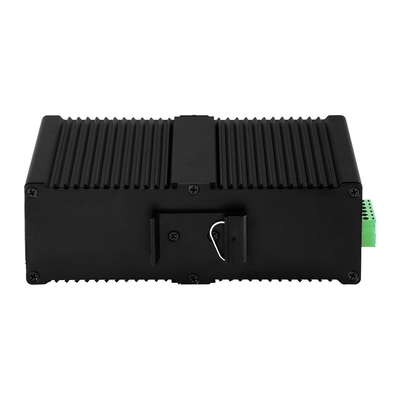

Din-rail mounting
|
|
6KV Surge Protection
|
Supported for UTP and Fiber port
|
|
CPU Watch Dog
|
Supported
|
|
Power Supply
|
Redundant DC48V (48~57VDC) Input or 100-240VAC

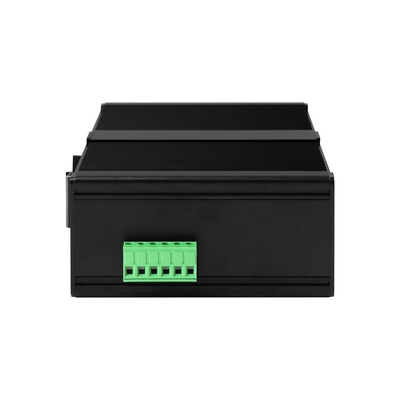

power (Removable Terminal Block )
|
|
Power
Consumption
|
3.5W(no-load)
|
|
LED
|
Per unit: Power 1 (Red), SYS (Red), Alarm
(Red) PoE(Green)
RJ-45 port: Link/Active (Green) Speed(Yellow)
SFP Fiber port: Link/Active (Green)
|
|
Jumbo Frame
|
9.6KB
|
|
IEEE802.3ac
|
Max frame size extended to 1522Bytes (allow Q-tag
in packet)
|
|
Operating Humidity
|
0% to 95% (Non-condensing)
|
| Industrial Optical Module |
| OSPL1E06D-85 |
100BASE-FX(850nm) |
| OSPL1E06D |
100BASE-FX |
| OSPL1E20D |
100BASE-LX |
| OSPL1E40D |
100BASE-EX |
| OSBL1E20D-35 |
100BASE-BX-U(TX 1310 RX1550) |
| OSBL1E20D-53 |
100BASE-BX-D(TX 1550 RX1310) |
| OSPL1G05D |
1000BASE-SX |
| OSPL1G06D |
1000BASE-SX(1310nm) |
| OSPL1G20D |
1000BASE-LX |
| OSPL1G40D |
1000BASE-EX |
| OSBL1G20D-35 |
1000BASE-BX-U(TX 1310 RX1550) |
| OSBL1G20D-53 |
1000BASE-BX-D(TX 1550 RX1310) |
| Industrial DIN Power Supply |
| IM-DAC220/DC48V2.5A |
AC220V to DC48V2.5A, -40℃～70℃ |
| IM-DAC220/DC48V5A |
AC220V to DC48V5A, -40℃～70℃ |
| IM-DAC220/DC48V10A |
AC220V to DC48V10A, -40℃～70℃ |
Management Features of L2+ Managed Switch
- Support cable diagnosis and can locate the fault point
- Support IEEE802.3az EEE(Energy Efficient Ethernet) Management, optimize power consumption
- Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
- Support QoS, transport classification QoS, CoS, bandwidth control(input/output direction), storm suppression, differentiated services
- Support IEEE802.1q VLAN, VLAN port, based Mac VLAN, IP subnet VLAN, Protocol VLAN, VLAN convert, MVR
- Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation
- Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
- Support IGMP agent report, MLD snooping
- Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+, HTTP/HTTPS, SSL/SSH v2
- Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
- Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
- Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
- Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
- Support IPV6 Telnet server/ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP, TFTP, QoS, ACL
FAQ of 90W PoE Switch
1. What is MoQ?
1 Pc/Pair.
For many models, we have stock, it is easy to send samples for your testing.
2. Can I have a discount?
Yes and it is usually based on quantity and after sample testing.
3. What is your warranty period?
For commercial models like fiber Ethernet media converter or fiber optic PoE switch, it is 1 year.
For industrial grade products, it is 3 years.
We do lifetime technical support if the models are from Olycom company.
4. Can I have my own packing box?
Yes, the standard packing box does have not have Chinese letters or logo.
Its fine to customize your own version like putting your logo, model name or slogans on it.
5. What is your payment terms?
In most cases we do T/T wire transfer and full amount should be collected before shipment.
For sample orders, we receive PayPal payment for shorter processing time.
Sometimes Alipay or WeChat payment is fine, it depends on the cases.
Application
