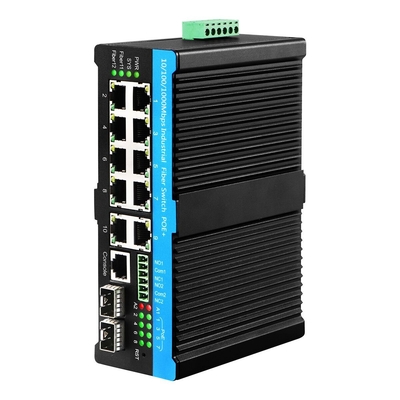

Olycom Managed Gigabit Industrial POE++ Switch
Introduction of Managed PoE Switch
IM-FP21008GW is Gigabit Managed 10-port, L2 Gigabit Ethernet 90W PoE Ring Switch. IM-FP21008GW provides IEEE802.3af/at/bt compliant up to 90W PoE power on 8 copper ports for total power of 750W, This enables it to provide power for the most demanding PoE applications for PTz domes, LED lighting and wireless products. It is compliant to G8032 ERPS V1/V2 Ring protocol. The IM-FP21008GW is uniquely designed for outdoor enclosure applications with a ribbed temperature disbursement chassis, 6kv surge protection and user programmable port thermal protection of over temperature shut down to prevent damage to the IM-FP21008GW from excessive heat.
Specification of Managed PoE Switch
| Product Name |
10/100/1000Mbps Managed Industrial POE Fiber Switch (2F+10TP) |
| Model No. |
IM-FP21008GW |
| Port |
2x 100/1000/2500Base-FX SFP Fiber
SM:1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM:1310nm, 2Km;
8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
|
|
Data Processing
|
Store and Forward
|
|
MAC Address Table
|
8K
|
|
Warning Message
|
System Syslog, alarm relay
|
|
Operating Temperature
|
-40 ~ 75°C
|
|
Dimensions
|
165 x 112 x 45.5mm
|
|
Weight
|
0.85kg
|
|

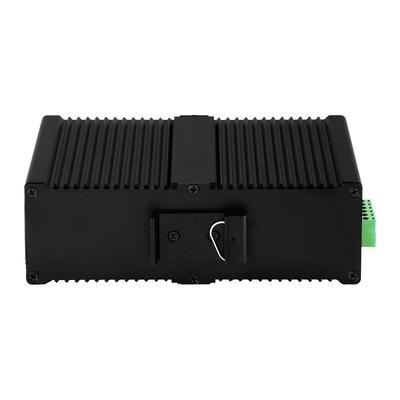

Installation Mounting
|
Din-rail mounting
|
|
6KV Surge Protection
|
Supported for UTP and Fiber port
|
|
CPU Watch Dog
|
Supported
|
|

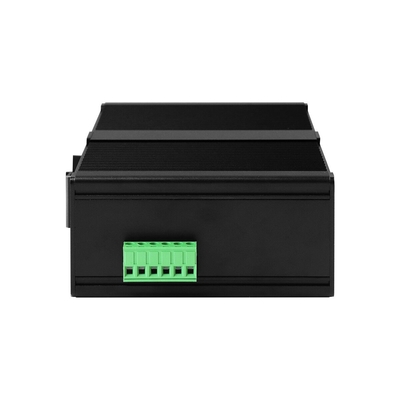

Power Supply
|
Redundant DC48V (48~57VDC) Input or 100-240VAC
power (Removable Terminal Block )
|
|
Power
Consumption
|
3.5W(no-load)
|
|
LED
|
Per unit: Power 1 (Red), SYS (Red), Alarm
(Red) PoE(Green)
RJ-45 port: Link/Active (Green) Speed(Yellow)
SFP Fiber port: Link/Active (Green)
|
|
Jumbo Frame
|
9.6KB
|
|
IEEE802.3ac
|
Max frame size extended to 1522Bytes (allow Q-tag
in packet)
|
|
Operating Humidity
|
0% to 95% (Non-condensing)
|
Management Features of Managed PoE Switch
- Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
- Support Qos, transport classification Qos, Cos, bandwidth control
- (input/output direction), storm suppression ,differentiated services
- Support IEEE802.1q VLAN,VLAN port ,based Mac VLAN,IP subnet VLAN, Protocol VLAN,VLAN convert, MVR
- Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation
- Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
- Support IGMP agent report, MLD snooping
- Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+,HTTP/HTTPS, SSL/SSH v2
- Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
- Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
- Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
- Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
- Support IPV6 Telnet server /ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP,TFTP, QoS, ACL.
FAQ of Managed PoE Switch
1. What is MoQ?
1 Pc/Pair.
For many models, we have stock, it is easy to send samples for your testing.
2. Can I have a discount?
Yes and it is usually based on quantity and after sample testing.
3. What is your warranty period?
For commercial models like fiber Ethernet media converter or fiber optic PoE switch, it is 1 year.
For industrial grade products, it is 3 years.
We do lifetime technical support if the models are from Olycom company.
4. Can I have my own packing box?
Yes, the standard packing box does have not have Chinese letters or logo.
Its fine to customize your own version like putting your logo, model name or slogans on it.
5. What is your payment terms?
In most cases we do T/T wire transfer and full amount should be collected before shipment.
For sample orders, we receive PayPal payment for shorter processing time.
Sometimes Alipay or WeChat payment is fine, it depends on the cases.
Application of Managed PoE Switch
