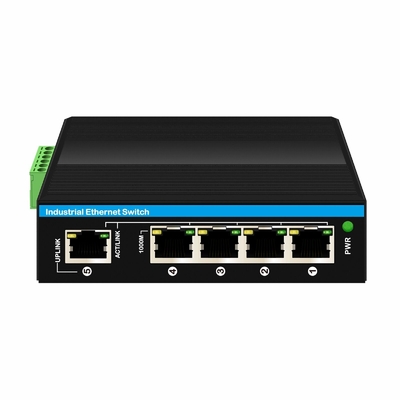

5 Port Gigabit Voltage Booster 12-48VDC Input Industrial Poe Network Switch

5 port gigabit voltage booster switch

12-48VDC input industrial poe network switch

Key Features of POE network switch:

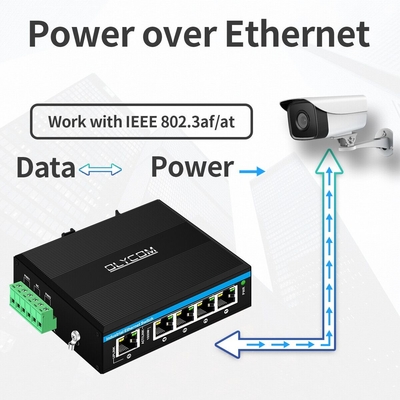

• Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.

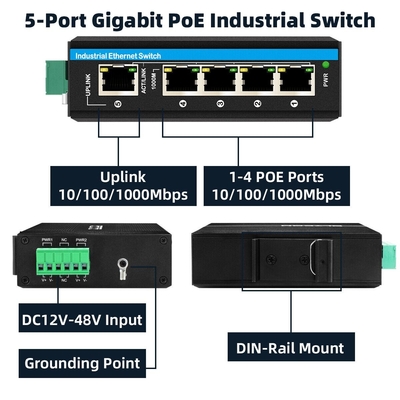

• IEEE 802.3af/at power on to 1 ~ 4 RJ45 ports
• 4 x 10/100/1000Mbps Auto-sensing RJ45 ports
• 1 x 10/100/1000Mbps uplink network port

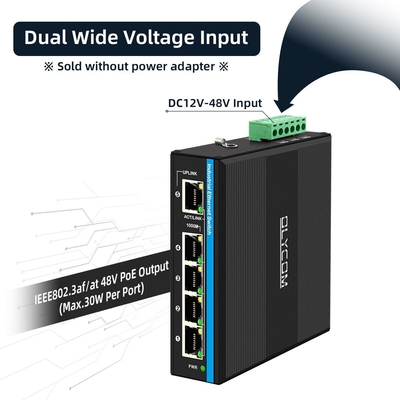

• Built-in voltage booster for DC12-48V input which can be used for solar power/Trunk/VoIP system/CCTV security system
• 6 KV Ethernet surge protection, adapt to a harsh outdoor environment
• Support Auto MDI/MDIX
• Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
• IEEE 802.3 10Base-T and IEEE 802.3u 1000Base-TX compliant
• Max power to15.4W under af standard, 30W under at standard to each PoE port
• Detect the PoE models of electrical equipments.
• Operating environment temperature:-40 ° ~75 ° c

Specification of voltage booster switch


Application of unmanaged switch


Packing box of Din rail unmanaged switch:


• Put the product in an ESD Bag, then placed in PE foams with outer carton packaging.
• The standard packing usually contains a main device, a warranty card and a user manual.
• Packing box dimension for 1pc: 23*16.5*5.8cm
• 40pcs in a packing box of 67*33*47cm dimension.



FAQ:

Q1. Can I have a sample order for Industrial poe switch?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.

Q3. Do you have any MOQ limit for optical fiber switch order?
A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to deal with the faulty?
A: Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
