OTN DWDM 5U Chassis 20 Service Slots For 100G 200G 400G Transmission Dual Power Input

5U Rack Transmission Platform For OM3800 Series Service Cards

Product Parameters

Product Description

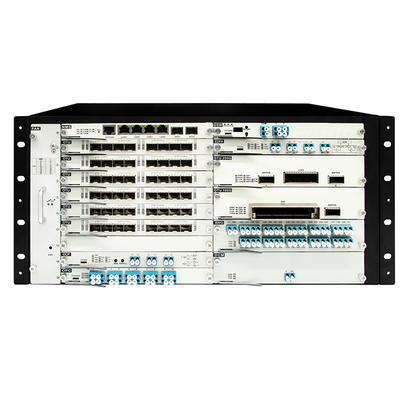

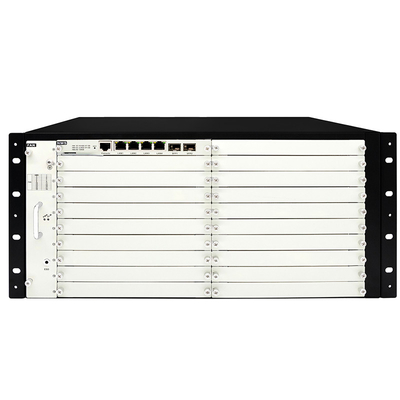

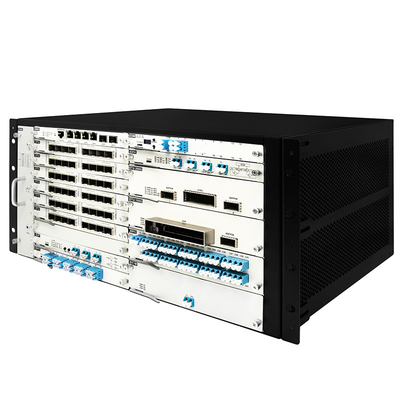

• The OM3800-5U is designed with a standard 19-inch 5U rack-mounted, card-insertion structure.
• The single chassis provides 20 functional module slots, 2 power slots, and 1 fan slot.
• It adopts a front-panel fiber outlet design, placing all optical interfaces and network management interfaces on the front side.
• The airflow design adopts a right-to-left ventilation pattern, with an air inlet on the right side of the chassis.
• Cold air is drawn into the chassis by the cooling fan unit, and then expelled from the left side of the chassis.

1. SLOT1 is for inserting the NMS (Network Management System) control card, while SLOT2 to 19 can accommodate various types of business cards.

2. FAN Slot: Used for chassis cooling. The PWR indicator being on indicates normal power supply to the fan slot. If the ALM light is red, it signifies a fan malfunction. Normally, the ALM light should be off.

3. Indicator Lights:

- PWR: On - Normal power supply; Off - No power supply or abnormal.

- ALM: On - Fan malfunction or high-temperature alarm; Off - Normal.

1. The power supply (PIU) slot is located at the back of the device, supporting both alternating current (AC - APU) and direct current (DC - DPU) options. The power configuration is 1+1 hot backup, providing redundancy.

2. Indicator Lights:

- PWR-DC, PWR-AC: On - Normal power supply; Off - No power supply or abnormal.

Product Features

• Standard 19-inch, 5U height;
• High integration: Single rack supports 19 general-purpose business slots, 1 network management slot;
• Unified platform: Supports various business card mix-ins, unified network management;
• High reliability: Power supply supports both AC and DC simultaneously, with support for 1+1 power supply protection;
• Excellent heat dissipation performance: Designed with 6 high-performance, high-speed fans to ensure effective heat dissipation.

Application

• Telecom
• Data center
• 5G Network
• Long Haul Network

Olycom DWDM transmission solution

• DWDM chain network case
• DWDM Ring network case
• DWDM+OLP optical line protection Case
• DWDM ultra long distance solution
• DWDM peer-to-peer case
• DWDM single fiber bidirectional networking case
