DWDM EDFA Card Booster Line Optical Amplifier For 48-Wave C-Band WDM System

1pc
MOQ
negotiable
Price
DWDM EDFA Card Booster Line Optical Amplifier For 48-Wave C-Band WDM System
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Erbium-Doped Fiber Amplifier Card
Application: DWDM System
Classification: BA, LA, PA
Wavelength: C-band, Max 48 Channels
Highlight:

EDFA Card DWDM Line Optical Amplifier

,

Line Optical Amplifier For WDM System
Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Olycom
Model Number: OM3800-EDFA
Document: DWDM OTN SYSTEM OLYCOM.pdf
Payment & Shipping Terms
Packaging Details: 1 piece in a box, 1Kg G.W.
Delivery Time: 4~7 days
Payment Terms: T/T, PayPal
Supply Ability: 2000pcs/month
Product Description

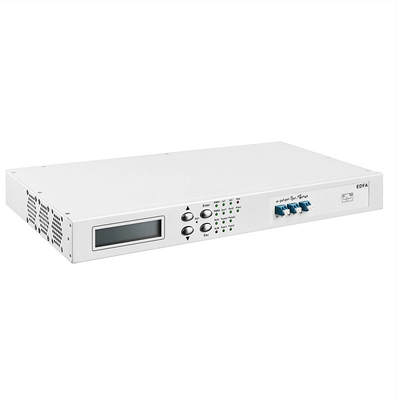

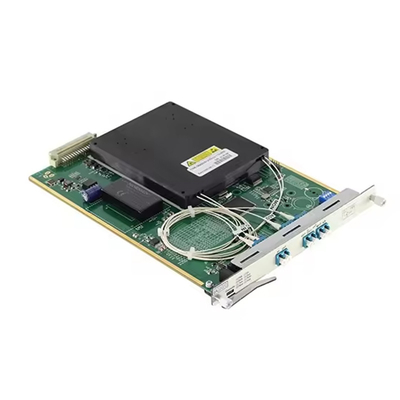

EDFA 1U Rack or Card type Erbium doped fiber amplifier board



Product specification

Function Description
Working wavelength range Standard type: 1529nm~1561nm Extended type: 1528nm~1568nm
EDFA type OBA Power Amplification OPA Power Amplification
Min input optical power -22dBm -32dBm
Max output optical power +20dBm +16dBm
Max gain 17dB 20dB
Noise Figure ＜5.5dB
Gain flatness ＜1.5dB
Proprietary technology Support gain locking, gain adjustable, transient control technology, output optical power automatic shutdown
Network management function

Support real-time monitoring of EDFA working status, including: optical power, pumping, temperature, etc.

Support pump shutdown threshold and automatic recovery time setting function
Number of occupied slots Support OSP3800 full series chassis, occupying 1 slot, (0.5U)
Optical interface LC/UPC
Max power consumption 15W
MTBF ＞100,000 hours



Product Features



(1) support C-band DWDM system optical amplification

(2) support optional OSC signal input amplification function

(3) support power amplification, line amplification (secondary optical amplification), pre-amplification

(4) support IP-based graphical SNMP network management, network management methods CLI, Web

(5) can monitor: pump drive current, pump output power, pump switch, pump temperature, input optical power, output optical power, module temperature

(6) support configurable pump switch, AGC mode and APC mode (adjustable input and output optical power)

(7) support optical monitoring port (MON).



DWDM EDFA Card Booster Line Optical Amplifier For 48-Wave C-Band WDM System 0



Interface definition



Interface Item Function/Description
In EDFA input interface Small signal optical power input port
Out EDFA output interface EDFA Amplification output optical port.
OSC_IN Monitoring channel input port Link to the network management card SFP TX to transmit network management information.
OSC_Out Monitoring channel output port Link to the network management card SFP RX to transmit network management information.
MON monitoring port EDFA performance monitoring interface, link OPM or spectrometer.



Indicator description



Interface Item Description
PWR EDFA power indicator On, EDFA power supply is normal; off, power supply failure.
RUN EDFA operation indicator On, EDFA is operating normally; off, the operation is faulty.
In EDFA input alarm indicator On, the input is abnormal; off, the input is normal.
Out EDFA output alarm indicator On, the output is abnormal; off, the output is normal.
Tem EDFA module temperature alarm indicator On, the temperature of the EDFA module is abnormal; off, the temperature of the module is normal.
Ptem Pump temperature alarm indicator On, the pump temperature is abnormal; off, the pump temperature is normal.
Pump Pump warning indicator On, the pump is off; off, the pump is on.
Pam Pump current alarm indicator On, the pump current is abnormal; off: the pump current is normal.



Introduction



  • The main function of the EDFA (Erbium Doped Fiber Amplifier) optical amplifier card is to perform power compensation on the signal light in the transmission link, and can simultaneously amplify up to 48 channels (channel spacing is 100GHz) or 96 channels (channel spacing is 50GHz) in the C-band.
  • The optical signal has the characteristics of flat gain, adjustable gain, and small noise index.
  • It is an indispensable and important part of DWDM system, future high-speed system, and all-optical network long-distance transmission.



DWDM EDFA Card Booster Line Optical Amplifier For 48-Wave C-Band WDM System 1



DWDM EDFA Card Booster Line Optical Amplifier For 48-Wave C-Band WDM System 2
