2/4/8 Channel C21~C28 Optical Add Drop Multiplexer Card
Product Features
(1) Support 2/4/8 channel add and drop
(2) Plug'n play: requires no configuration
(3) Green product: completely passive, needs no power and no cooling
(4) Low insertion loss
2CH maximum insertion loss ≤1.5dB
4 CH maximum insertion loss ≤3dB
8CH maximum insertion loss ≤4.5dB
Specification
| Function |
CWDM OADM |
DWDM OADM |
| Channel number |
1 |
2 |
4 |
8 |
16 |
1 |
2 |
4 |
8 |
16 |
| Operating wavelength(nm) |
1260~1620 |
1525~1565 |
| Business Type |
ITU-T Grid |
ITU-T Grid |
| Center wavelength (nm) |
20 |
0.8nm(100GHz) |
| Channel insertion loss (dB) |
In—Drop |
≤0.8 |
≤1.2 |
≤1.8 |
≤2.6 |
≤4.5 |
≤0.8 |
≤1.2 |
≤1.8 |
≤2.6 |
≤4.5 |
| Add---Out |
≤0.8 |
≤1.2 |
≤1.8 |
≤2.6 |
≤4.5 |
≤0.8 |
≤1.2 |
≤1.8 |
≤2.6 |
≤4.5 |
| In---out |
≤0.8 |
≤1.2 |
≤1.8 |
≤2.6 |
≤4.5 |
≤0.8 |
≤1.2 |
≤1.8 |
≤2.6 |
≤4.5 |
| Flatness (dB) |
ITU±6.5 |
|
| Adjacent channel isolation (dB) |
≤0.5 |
| Non-adjacent channel isolation (dB) |
≥30 |
| Return loss (dB) |
≥40 |
| Flatness (dB) |
≥50 |
| Occupied slot number |
Support OSP3800 series chassis, occupy 1 slot, (0.5U) |
| Optical interface |
LC/UPC |
| Max power consumption |
5W |
| MTBF |
＞100000 hours |

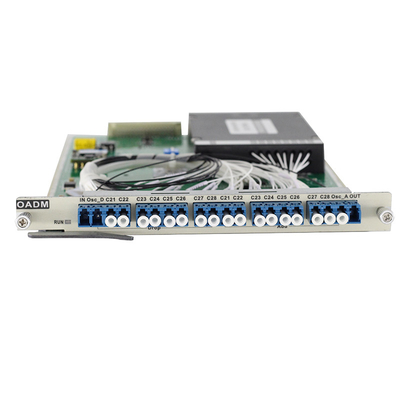

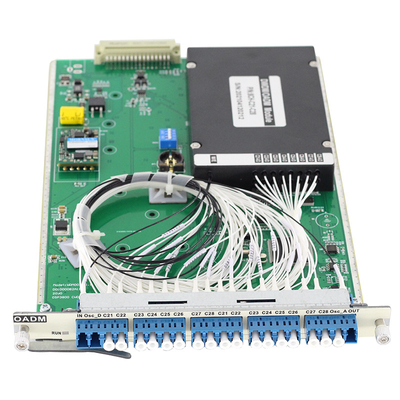

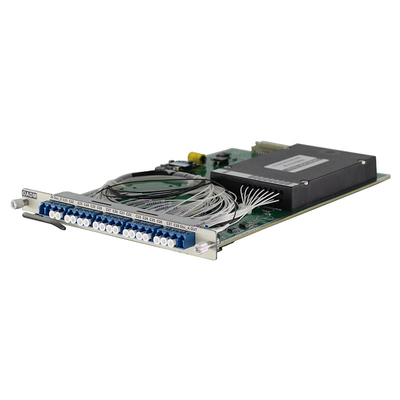

Product Diagram
Introduction
OADM board is an important part of WDM system.
It can realize the dynamic reconfiguration of optical wavelength channel by OADM module.
That is to say, it can dynamically adjust the wavelength resource and fiber path in optical path layer according to the change of traffic and demand in transmission network path and make the most effective use of network resources.
