OM3800 Series Plug and Play Web Management DWDM NMS Board
Product Features
- Adopt high-speed ARM processor, provide powerful data processing capability, collect status information, alarm events and performance parameters of each single-board functional module, convert, process and store, and transmit control and management information to other functional blocks of the device .
- Provide a Console interface to support emulation terminal operation.
- Provide 4 RJ45 Ethernet interfaces, support IP-based graphical SNMP network management.
- Provide 2 SFP optical module interfaces, support in-band management of equipment, realize the processing of 2 optical monitoring channels, and complete the receiving and sending processing of optical signals of optical monitoring channels at each site.
- The network management module supports hot swapping, and it will not affect the normal operation of the current business module after failure
Specification
| Function |
Description |
| Local management serial port |
Support 1 Micro-USB local management serial port |
| Remote management Ethernet port |
Support 4 RJ45 Ethernet interfaces
the interface rate is 10/100M adaptive
|
| OSC optical monitoring port |
Support 2 pluggable optical port SFP, the interface is LC type |
| Management method |
Support CLI, Telnet, SNMP, Web and other network management methods |
| Switching function |
Support IP communication function between devices to realize comprehensive management of multiple devices |
| Protection |
Hot swapping or failure of the network management card will not affect the existing business |
| Maintenance |
Support local or remote software online upgrade |
| Reset |
Support operating buttons to reset the hardware of the local NMS board |
| Initialization |
Support operation buttons to initialize the local NMS board hardware |
| Operating temperature |
-10℃~+60℃ |
| Working humidity |
5%~95% |
| Number of occupied slots |
Support OSP3800 full series chassis, occupying 1 slot, (0.5U) |
| Max power consumption |
5W |
| MTBF |
＞100,000 hours |
| Factory default IP address |
192.168.1.188 |

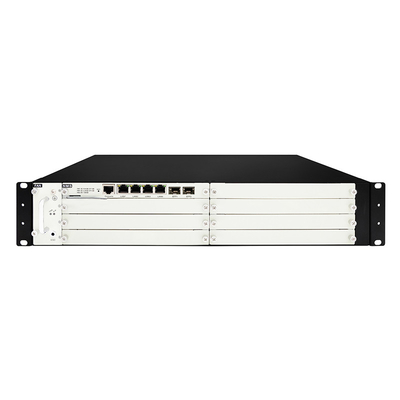

Product Photo
Interface Definition
| Item |
Interface screen printing |
Description/Function |
|
Ethernet port
|
LAN1 |
Connect with the network management computer through the network cable to realize the management of the OSP3800 by the network management system 4 LAN1, LAN2, LAN3, LAN4 interfaces, realize the cascading management of multiple network elements and realize the transmission of network management information at the same time. |
| LAN2 |
| LAN3 |
| LAN4 |
| SFP optical port |
SFP1 |
The transmission optical cable is connected through the OSC interface to realize the aggregation of branch node network management information to the network management center, and the dual optical ports realize transmission in two directions and realize 1+1 protection |
| SFP2 |
| Serial port |
CON |
Provide local serial port network management function |
Indicator Description
| Interface |
Item |
Description |
| PWR |
NMS power indicator |
On, NMS power supply is normal, off, power supply failure |
| PWR1/PWR2 |
Device power indicator |
On, device power supply is normal, off, power supply failure |
| RUN |
NMS system indicator |
On, NMS operation is normal, off, NMS operation failure |
| ALM |
Alarm indicator |
1.on: The rack type unknown alarm
2.on: Any power failure alarm
3.on: Any fan failure alarm
4.on:Temperature alarm
5.on: Unknown card message alarm
|
| TEM |
Temperature warning indicator |
When working temperature is higher than configured value, it gives an alarm |
| SFP1 |
Optical port 1 indicator |
Flashing, the data link is normal, off, the data link is not normal |
| SFP2 |
Optical port 2 indicator |
Flashing, the data link is normal, off, the data link is not normal |

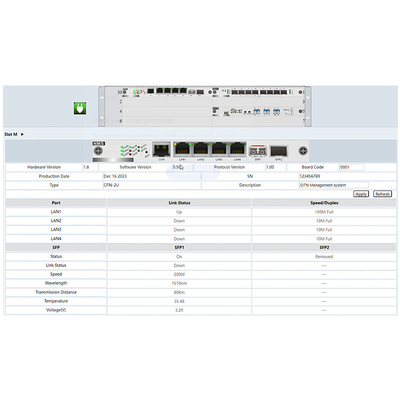

GUI Photos
