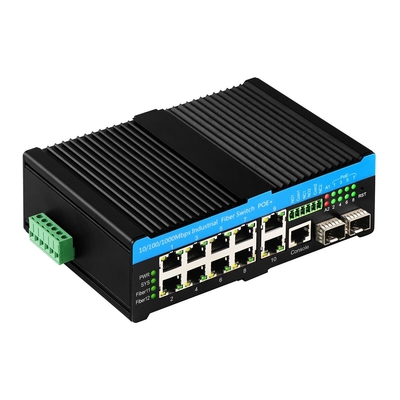

Olycom 2.5G Manageable CCTV PoE Fiber Switch
| Port |
2*100/1000/2500Mpbs SFP ports
SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km
MM: 1310nm, 2Km; 850nm, 500-meter
10*100/1000M UTP RJ45 Uplink(Support MDI/MDIX auto-sensing)
8*UTP PoE Downlink(PoE af/at/bt)
1*Console port

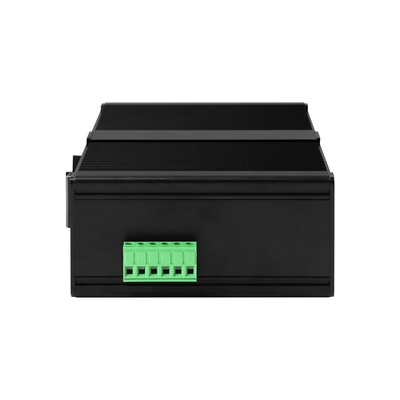

1*6-PIN power terminal block
2*Alarm output
|
| Protocol |
IEEE 802.3
IEEE802.3U
IEEE802.3ab
IEEE802.3z
IEEE802.1d STP
IEEE802.1w RSTP
IEEE802.1s MSTP
ITU-T G.8023 EPR/Y.1344
IEEE802.1Q
IEEE802.1X
IEEE802.3ad
IEEE802.3x
IEEE802.1ad
IEEE802.1p
IEEE802.1ab
IEEE802.3az
IEEE802.3af
IEEE802.3at
IEEE802.3bt
|
| Switching Features |
Transmission mode: storage and forward
Forwarding delay: <10us
System bandwidth: 40Gbps(non-traffic jam)
Forwarding rate: 22.321Mpps
DRAM size: 128M
Flash size: 16M
Packet buffer size: 4Mb
VLAND ID: 4096
MAC Address Table Size: 8K
Jumbo Frame: 9.6KB
|
| Network Media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
|
| LEDs |
Power, System, Network, PoE, Fiber, Alarm
PWR: Power, red
SYS: System, red
Network Link/Activity: Green LED
Network Data rate : Orange LED (ON for 1G)
PoE: Green Active
Fiber Link: Green
LED Alarm: Red Flashing
|
| Power Supply |
Input voltage: 48V(max 57V)
PoE output voltage: 48V
Single PoE output power: 15.4W/30W/60W/90W(port 1~8)
Working Temperature: -40°C to +75°C(at 240W PoE Output)
Working Temperature: -40°C to +55°C(at 480W PoE Output)
Max budget: 720W(Not suggested considering service life and dissipation)
Reverse connection: support
|
| PoE Wiring |
PoE af/at: 1/2(V+), 3/6(V-)
PoE bt: 1/2 (V+), 3/6 (V-), 4/5 (V+), 7/8 (V-)
|
| Environment |
Storage temperature: -40°C～85°C
Working humidity: 10%～90%, non-condensing
Storage humidity: 10%～95%, non-condensing
|
| Industry Standards |
ESD: IEC61000-4-2, ±15KV air, ±6KV contact
EFT: IEC61000-4-4, General ±6KV
Surge: IEC61000-4-5, Differential ±2KV, Common±6KV
|
| Certification |
CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020
EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021
EN 61000-3-3: 2013/A2: 2021/AC:2022
CE-LVD: EN IEC 62368-1: 2020+A11:2020
FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014
|
| Mechanical information |
Shell: Corrugated metal shell, IP40 grade level
Dimension: 165*112*45.5mm

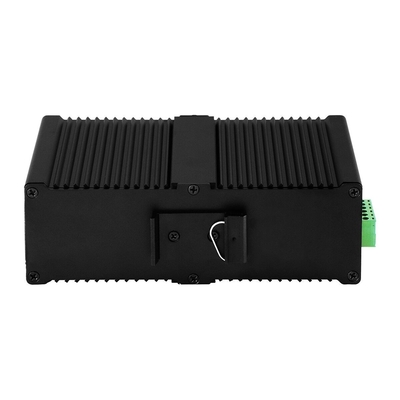

Mounting method: Din-rail mounting
Weight: 0.75Kg/0.9Kg(Net/Gross)
|
| Warranty |
3 years, lifetime technical support |
Key Features
1. Real-time display of voltage, current, power and PD level and full indicators
2. Enable/disable the PoE ports, set the PoE power-on delay and PoE output power
Programmable PoE parameters: Primary Power Supply, PoE Mode, Priority, Max Power etc.
3. Support relay alarm output and alarm status light display(2 way-from dry contact)
It is I/O ports, there is no serial communication
Clink all in the management interface
Connect those 2 alarm ports to an external bell or Siren
The bell/siren rings to warm the users if any port is down(remote real-time monitoring)
Software Feature
- Support cable diagnosis and can locate the fault point
- Support IEEE802.3az EEE(Energy Efficient Ethernet) Management, optimize power consumption
- Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
- Support QoS, transport classification QoS, CoS, bandwidth control(input/output direction), storm suppression, differentiated services
- Support IEEE802.1q VLAN, VLAN port, based Mac VLAN, IP subnet VLAN, Protocol VLAN, VLAN convert, MVR
- Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation
- Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
- Support IGMP agent report, MLD snooping
- Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+, HTTP/HTTPS, SSL/SSH v2
- Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
- Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
- Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
- Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
- Support IPV6 Telnet server/ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP, TFTP, QoS, ACL
- Please contact us for web manual or CLI manual
Application
- Supply power to power-hungry devices
- Optical Telecommunication
- Remote controlling and monitoring
- Outdoor CCTV security surveillance
- Broadband private network
FAQ
1, What chip is it based?
Olycom: Vitesse
2, Can I customize it?
Olycom: Yes
We support OEM services like logo, model name, label, PVC mask and product parts(mounting kit, power terminal block etc.)
3, Can I connect it with 10/100M devices?
Olycom: Yes
For LAN ports, they are 10/100/1000M auto-sensing
For Fiber ports, please configure 100Mbps speed via Web GUI or CLI
4, Can I shut down PoE function for some ports when necessary?
A: Yes
All the PoE managed switches in this series support PoE management
Please just set PoE status via Web GUI or CLI
5, Do you do SKD/CKD?
A: Yes
As a factory, we have dealt with this many times.
