Name: DWDM/CWDM Transmission 8*Sfp+ 10G OTU Transponder Card C Band 50GHz 96 Waves
Brand: Shenzhen Olycom Technology Co., Ltd.
SKU: OLY8000
Price: 57.00 USD
Availability: InStock

DWDM/CWDM Transmission 8*Sfp+ 10G OTU Transponder Card C Band 50GHz 96 Waves

1 pc

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: 10G OTU Transponder Card

Type: Card

Card Type: 10G OTU-3R, 10G OTU-2R

Sample: Available

Brand: Olycom/customized/no Brand

Highlight:

8*Sfp+ 10G OTU Transponder Card

96 waves 10G OTU Transponder Card

10G OTU Transponder Card

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: Olycom

Certification: CE RoHS FCC ISO9001

Model Number: OLY8000

Payment & Shipping Terms

Packaging Details: 1pc in a box

Delivery Time: 3~5 working days

Payment Terms: T/T, PayPal

Supply Ability: 5000pcs/month

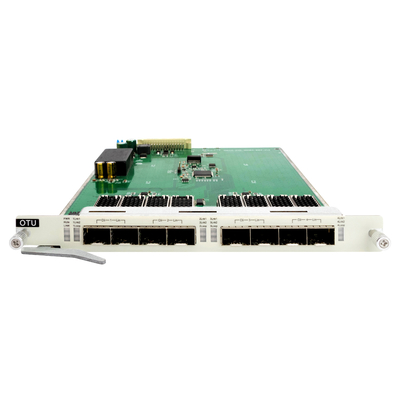

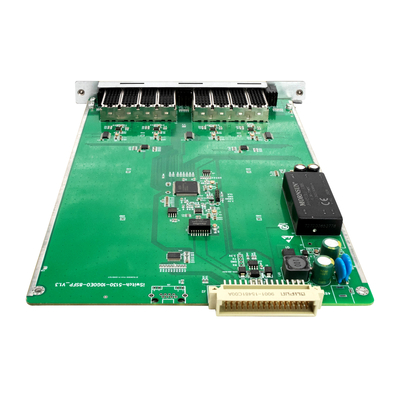

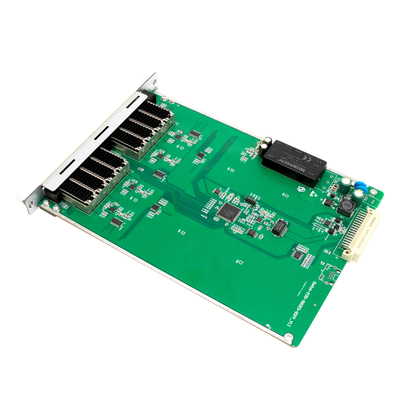

Gallery

DWDM/CWDM Transmission 8*Sfp+ 10G OTU Transponder Card C Band 50GHz 96 Waves

Product Description

DWDM Transmission 8*sfp+ 10G OTU Transponder

Product specification of OTU Transponder

Function	Note
Card type	10G OTU-3R	10G OTU-2R
interface	Client-side interface: 4 SFP+ hot-pluggable, compatible with SFP WDM-side interface: 4 SFP+ hot-pluggable, compatible with SFP
Line mode	Supports transparent transmission of any type of service in four 42M~11.3G rate ranges, and converts four service optical signals into four WDM standard wavelength optical signals.
Relay mode	Support 42M~11.3G wavelength electrical relay
Support service type	GE, 10GE 1/2/4/8/10G FC STM-16/64 CPRI-2/3/6/7	FE, GE, 10GE 1/2/4/8/10G FC STM-1/4/16/64,OTU1/OTU2/OTU2e CPRI-1~8, 42M~11.3G Any
WDM technology	Support CWDM: 18 waves Support DWDM: C band 50GHz 96 waves
Occupied slot number	Support OSP3800 series chassis, occupy 1 slot,(0.5U)
Network management function	Support real time monitoring of the port working state, including: transmitting optical power and receiving optical power, temperature, etc.
Power consumption	16W (max, including transceiver)
MTBF	＞100000 hours

Introduction

10G OTU service card launched by Shenzhen Olycom Technology Co. ,Ltd. supports four types of service access with 42M~11.3G rates.,its main function is to finish the 3R regeneration of any 4-channel signals under any protocol within the rate of 1.25 Gbit/s~11.3 Gbit/s to be accessed, and then convert them to optical signals of a standard DWDM wavelength or standard CWDM wavelength, so that the multiplexing unit can conduct WDM for optical signals of different wavelengths and also achieve the inverse process of the above process. It’s applicable to the wavelength division transmission solution for any access of services with the rate of 11.3G or below.

Product diagram

DWDM/CWDM Transmission 8*Sfp+ 10G OTU Transponder Card C Band 50GHz 96 Waves 0

Functional structure

DWDM/CWDM Transmission 8*Sfp+ 10G OTU Transponder Card C Band 50GHz 96 Waves 1

FAQ:

1 Q: What is your lead time?

A:It usually takes 3~5 working days to produce and then will send goods.

2 Q: How will you send my goods?

A: We will send the goods by DHL, TNT, UPS or FEDEX, please check the delivery details by the tracking number.

3 Q: Please tell me something about your MOQ

A: Our MOQ is 1 Pcs/Pair based on USD or EUR terms.

4 Q: Something about pricing.

A: Good quality components for our products. Low prices for big and repeat orders.

5 Q: What is warranty time?

A: 1 year for commercial products and 3 years for industrial products. Technical support will be offered free.

Shipping:

For small quantity order, you can choose DHL/UPS/ FedEx/ by your account or by our agent.
For big quantity order, we can use ocean freight or by air cargo upon your requirement.

What is an OTU Transponder?

An Optical Transponder Unit (OTU) board converts client-side services into optical signals carried over ITU-T–compliant WDM wavelengths after performing mapping, multiplexing, convergence, and other operations.
