Industrial Fiber Bypass Switch
Product Features of Optical Bypass Module
- Low Insertion Loss
- Wide Wavelength Range
- Low Channel Crosstalk
Specification of Optical Bypass Module
| Product Name |
4 channel Bypass Switch
|
| Power Interface |
Standard industrial terminal block. |
| Polarity Protection |
Support |
| Optical Fiber Interface |
LC |
| Wavelength Range |
850±40/1300±40nm; 1260~1650nm |
| Test Wavelength |
850/1300nm; 1310/1550nm |
| Insert Loss |
Typ:0.6 dB Max:1.0 dB ; Typ:0.6dB Max:1.0 dB |
| Return Loss |
MM≥30 dB SM≥50 dB |
| Channel Crosstalk |
MM≥35 dB SM≥55 dB |
| Polarization Loss |
≤0.05 dB |
| Wavelength Loss |
≤0.05 dB |
| Temperature Loss |
≤0.05 dB |
| Repeatability |
≤0.05 dB |
| Service life |
≥100000000 times |
| Switching time |
≤10 ms |
| Transmission optical power |
≤500 mw |
| Environment |
Working temperature:-20°～ 70°C
Storage temperature:-40°～ 85°C
|
Product Introduction of Optical Bypass Module
The Fiber Bypass has the characteristics of low loss, high stability and high reliability. For different optical path needs, optical switch modules can be customized to meet the optical path needs of complex test systems and improve product test efficiency. It is an indispensable core product for the monitoring and protection of optical communication systems, which can be connected to high-density optical communication systems.

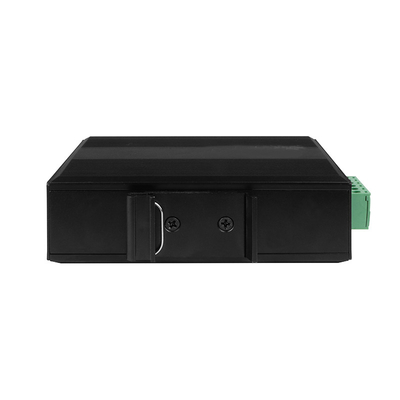

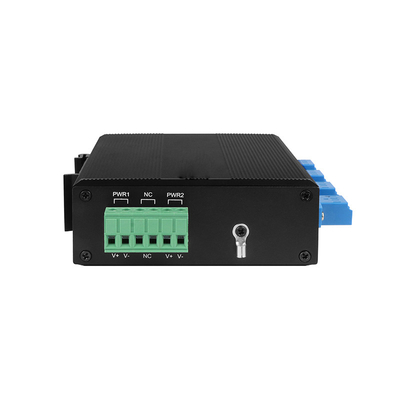

Actual Photos of Optical Bypass Module
FAQ of Optical Fiber Bypass
1 Q: What is your lead time?
A:It usually takes 2~4 working days to produce and then will send goods.
2 Q: How will you send my goods?
A: We will send the goods by DHL, UPS or FEDEX, please check the delivery details by the tracking number.
3 Q: Please tell me something about your MOQ
A: Our MOQ is 1 Pcs/Pair based on USD or EUR terms.
4 Q: Something about pricing.
A: Good quality components for our products. Low prices for big and repeat orders.
Connection diagram of Optical Fiber Bypass
Packing list of Optical Fiber Bypass
When using the product for the first time, please first check whether the package is complete and whether the accessories are complete!
- 1 × Main equipment
- 1 × Instruction manual
- 1 × Warranty card
▲Special Notes: There are special needs for the product, please make special explanation!
Caution of Optical Fiber Bypass
The equipment has built-in precision components, please avoid violent vibration, please handle with care, so as not to affect the performance of the equipment. If you find that the equipment has been damaged or any parts are lost during transportation, please inform our offices or dealers, and we will solve it for you as soon as possible.
