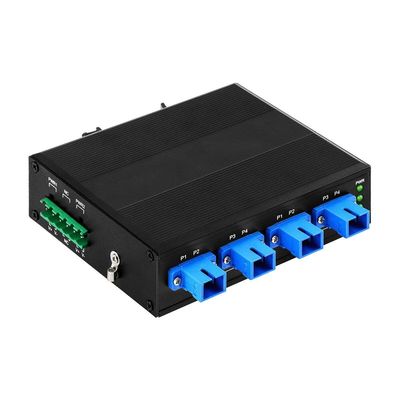

Name: 4 Channel Industrial Optical Bypass Switch with Din Rail DC24V Input and Low Insertion Loss for Telecom Communication
Brand: Shenzhen Olycom Technology Co., Ltd.
SKU: OM-FBS-22SC V1
Price: 57.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Industiral Optical Bypass Switch

Power Supply: DC12~52V

Application: Telecom Communication

Test Wavelength: 850/1300nm; 1310/1550nm

Optical Fiber Interface: SC/LC

Highlight:

Din rail industrial optical bypass switch

4 channel industrial optical bypass switch

DC24V industrial optical bypass switch

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: Olycom

Certification: CE RoHS FCC ISO9001

Model Number: OM-FBS-22SC V1

Payment & Shipping Terms

Packaging Details: 1pc in a box

Delivery Time: 3~5 working days

Payment Terms: T/T,PayPal

Supply Ability: 5000pcs/month

Gallery

4 Channel Industrial Optical Bypass Switch with Din Rail DC24V Input and Low Insertion Loss for Telecom Communication

Product Description

4 Channel Industrial Optical Bypass Switch 2X2B Din Rail DC24V Input SM/MM

Product Overview

This 4-channel industrial optical bypass switch features 2X2B DIN rail mounting with DC24V input, supporting both singlemode and multimode fiber configurations for reliable network protection during power failures.

Key Features

Low Insertion Loss
Wide Wavelength Range
Low Channel Crosstalk
Operating Environment Temperature: -20°C to 70°C

Technical Specifications

Product Name	Fiber Bypass
Power Interface	Standard industrial terminal block
Polarity Protection	Support
Optical Fiber Interface	SC
Wavelength Range	850±40/1300±40nm; 1260~1650nm
Test Wavelength	850/1300nm; 1310/1550nm
Insert Loss	Typ:0.6 dB Max:1.0 dB ; Typ:0.6dB Max:1.0 dB
Return Loss	MM≥30 dB SM≥50 dB
Channel Crosstalk	MM≥35 dB SM≥55 dB
Polarization Loss	≤0.05 dB
Wavelength Loss	≤0.05 dB
Temperature Loss	≤0.05 dB
Repeatability	≤0.05 dB
Operating Voltage	3.3V-5V
Service Life	≥100,000,000 times
Switching Time	≤10 ms
Transmission Optical Power	≤500 mw
Environment	Working Temperature: -20°C to 70°C Storage Temperature: -40°C to 85°C

Application Scenarios

Packaging

What is an Optical Bypass Switch?

The Optical Bypass Switch automatically bypasses faulty network nodes during power outages, ensuring continuous optical fiber communication in ring or linear network architectures.

Working Modes

Normal Mode: When powered on, the switch forwards Ethernet packets between three switches
Bypass Mode: During power failure, directly forwards Ethernet packets between two fiber switches, bypassing the middle switch

Frequently Asked Questions

What is an optical bypass switch?

Also known as a bypass TAP, it automatically switches faulty nodes during power outages or failures to secure complete optical transmission.

Where is it used?

Primarily used to prevent network outages and protect networking systems in optical telecommunications. Suitable for ring or linear fiber network architectures including railway communication systems, factory automation, and power substations.

What are the ordering options?

Available in SC connector singlemode (4 port), LC singlemode (4 port and 8 port), and LC multimode (4 port and 8 port) configurations.

Can your optical bypass units work with different switches?

Yes, this device operates at the optical transmission level without involving network protocols. Compatible with any switches supporting optical rates from 100M to 100G.

What types of optical bypass units do you offer?

Olycom offers two types: standalone units that connect with optical ports of different speeds and brands, and integrated bypass switches combining industrial managed Ethernet switches with optical switching functionality.
