4 Channel Industrial Optical Bypass Switch D2X2B Din Rail DC24V Input SM/MM For Power Failure

1 pc
MOQ
Negotiable
Price
4 Channel Industrial Optical Bypass Switch D2X2B Din Rail DC24V Input SM/MM For Power Failure
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Industiral Optical Bypass Switch
Power Supply: DC12~52V
Application: Telecom Communication
Test Wavelength: 850/1300nm; 1310/1550nm
Optical Fiber Interface: SC/LC
Highlight:

Din rail industrial optical bypass switch

,

4 channel industrial optical bypass switch

,

DC24V industrial optical bypass switch

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Olycom
Certification: CE RoHS FCC ISO9001
Model Number: OM-FBS-22SC V1
Payment & Shipping Terms
Packaging Details: 1pc in a box
Delivery Time: 3~5 working days
Payment Terms: T/T, PayPal
Supply Ability: 5000pcs/month
Product Description

4 Channel Industrial Optical Bypass Switch

D2X2B Din Rail DC24V Input SM/MM



Key Features of Optical Bypass Switch



  • Low Insertion Loss
  • Wide Wavelength Range
  • Low Channel Crosstalk
  • Operating environment temperature: -20 ° ~70 ° c



Specification of 4 Channel Industrial bypass switch



Product Name Fiber Bypass
Power Interface Standard industrial terminal block.
Polarity Protection Support
Optical Fiber Interface SC
Wavelength Range 850±40/1300±40nm; 1260~1650nm
Test Wavelength 850/1300nm; 1310/1550nm
Insert Loss Typ:0.6 dB Max:1.0 dB ; Typ:0.6dB Max:1.0 dB
Return Loss MM≥30 dB SM≥50 dB
Channel Crosstalk MM≥35 dB SM≥55 dB
Polarization Loss ≤0.05 dB
Wavelength Loss ≤0.05 dB
Temperature Loss ≤0.05 dB
Repeatability ≤0.05 dB
Operating voltage 3.3V-5V
Service life ≥100000000 times
Switching time ≤10 ms
Transmission optical power ≤500 mw
Environment

Working temperature:-20°~ 70°C

Storage temperature:-40°~ 85°C





Application

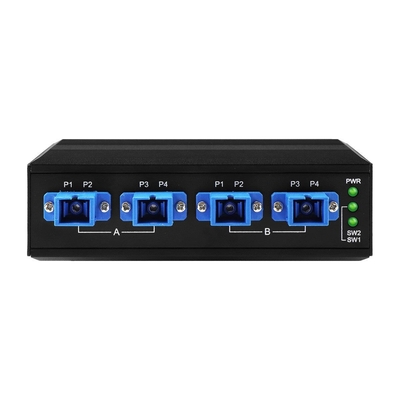

4 Channel Industrial Optical Bypass Switch D2X2B Din Rail DC24V Input SM/MM For Power Failure 0

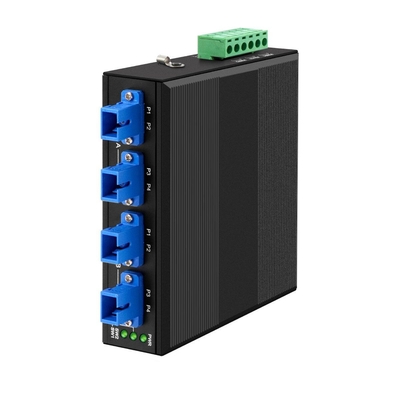

4 Channel Industrial Optical Bypass Switch D2X2B Din Rail DC24V Input SM/MM For Power Failure 1



Packing

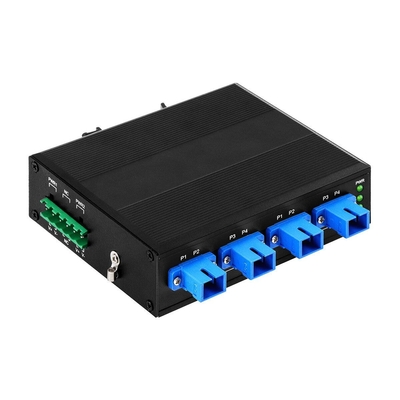

4 Channel Industrial Optical Bypass Switch D2X2B Din Rail DC24V Input SM/MM For Power Failure 2



What is an optical bypass switch?



The Optical Bypass Switch is capable of automatically bypassing faulty network nodes in the event of a power outage. It is used in optical fiber communications and fits ring or linear fiber network architectures.

It has two working mode:



  • When the power is on, the optical bypass switch operates in the normal mode and forwards ethernet packets between the three switches
  • When the power failure occurs, the optical bypass switch operates in the bypass mode the directly forwards ethernet packet between the two fiber switches and bypass the middle fiber switch.



FAQ:



1 Q: What is your lead time?

A:It usually takes 3~5 working days to produce and then will send goods.



2 Q: How will you send my goods?

A: We will send the goods by DHL, TNT, UPS or FEDEX, please check the delivery details by the tracking number.



3 Q: Please tell me something about your MOQ

A: Our MOQ is 1 Pcs/Pair based on USD or EUR terms.



4 Q: Something about pricing.

A: Good quality components for our products. Low prices for big and repeat orders.



5 Q: What is warranty time?

A: 1 year for commercial products and 3 years for industrial products. Technical support will be offered free.
