Name: 10G/100G CWDM DWDM Optical Transponder Platform Data Centers Otn Transmission Equipment Platform 1U 2U 5U Rack
Brand: Shenzhen Olycom Technology Co., Ltd.
SKU: OLY8000
Price: 57.00 USD
Availability: InStock

10G/100G CWDM DWDM Optical Transponder Platform Data Centers Otn Transmission Equipment Platform 1U 2U 5U Rack

1 pc

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: OTN Transmission Equipment Platform

Model: 1U/2U/5U

MUX/DEMUX: Support 8ch/16ch/40ch/48ch

OTU: Support 1.25G ~10Gbps,100Gbps

Power Supply Mode: Dual Power Supply, AC220V/DC-48V Optional

OEM/ODM: Supported

Highlight:

100G CWDM DWDM Optical transponder Platform

1U CWDM DWDM Optical transponder Platform

5U CWDM DWDM Optical transponder Platform

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: Olycom

Certification: CE RoHS FCC ISO9001

Model Number: OLY8000

Payment & Shipping Terms

Packaging Details: 1pc in a box

Delivery Time: 3~5 working days

Payment Terms: T/T, PayPal

Supply Ability: 5000pcs/month

Gallery

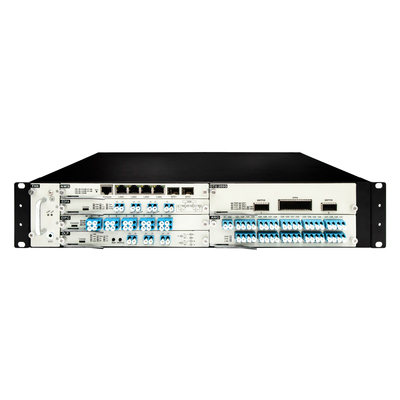

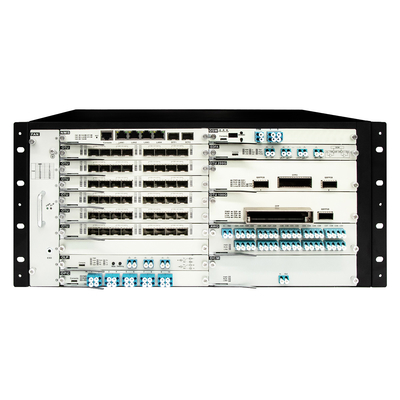

10G/100G CWDM DWDM Optical Transponder Platform Data Centers Otn Transmission Equipment Platform 1U 2U 5U Rack

Product Description

10G/100G CWDM DWDM Optical transponder Platform data centers

OTN transmission equipment platform 1U 2U 5U rack

Key Features

Super T-bit Capacity
Intelligent Protection
High Reliability
Flexible and Transparent Access to Multiple Services
Large Capacity
Intelligent Transmission
Easy to Operate
Simple Maintenance
Intelligent Management Platform

Introduction

OLY8000-1U/2U/5U is a compact, high-capacity, low-cost OTN optical transmission system which introduced by OLYCOM. It adopts CWDM / DWDM common platform design, supports multi-service transparent transmission, and has flexible networking and access capabilities.
Applicable to the national backbone network, provincial backbone network, metro backbone network and other core networks, to meet the needs of large-capacity nodes above 1.6T, is the industry‘s most cost-effective transmission application platform. Build alarge-capacity WDM transmission expansion solution for IDC and ISP operators.

Specification

Name		Description
Transmission Capacity		96x10Gbps /96x100Gbps
Network Management Unit		EMS network management disk
OTU		Support 1.25G ~10Gbps,100Gbps 1/2/4/8 /10Gbps Fibre Channel CPRI: 2/3/4/5/6/7 1G/10G Ethernet LAN or WAN PHY STM-4/16/64 SONET/SDH
MUX/DEMUX		Support 8ch/16ch/40ch/48ch
EDFA		EDFA erbium doped fiber amplifier
DCM		DCM:G.652/G655 Dispersion compensation fiber module
OLP		OLP optical protection
Size	Services Card	191 ( W ) x 253 ( D ) x 20 ( H ) mm
	1U 4-slot Chassis	482.5 ( W ) x 350( D ) x 44.5 ( H ) mm
	2U 8-slot Chassis	482.5 ( W ) x 350( D ) x 89 ( H ) mm
	5U 20-slot Chassis	482.5 ( W ) x 350( D ) x 222.5 ( H ) mm
Environment	Operating Temperature	-10℃ ~ 60℃
	Storage Temperature	-40℃ ~ 80℃
	Relative Humidity	5% ~ 95% Non-condensing
Power Supply Mode		Dual power supply, AC220V/DC-48V optional
Power Consumption		1U <120W, 2U<200W, 5U<400W

Network positioning

Advantage:

1. Manufacturing: We are a powerful factory and has been in this industry about 19 years

2. Professional R＆D center: We have a professional and independent R＆D team. Most our engineers have more than 5 years experience.

3. Fast dispatch: Most of the products are in stock. Below 10pcs can arrange delivery with 3 days.

4. Small order accepted: Low MOQ accepted. 1pcs are available.

5. OEM/ODM service: Customized products is available.We have very strict quanlity control system.
