Olycom L2+ Ring Managed Gigabit Industrial POE++ Switch


Specification of Managed PoE++ Switch

Introduction of Industrial Fiber Switch

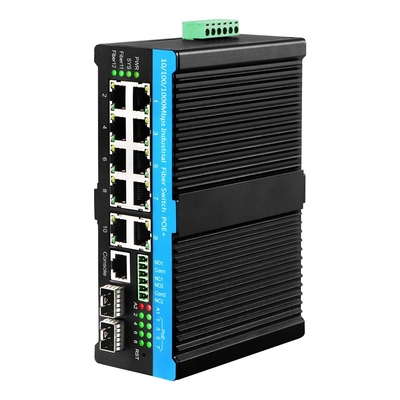

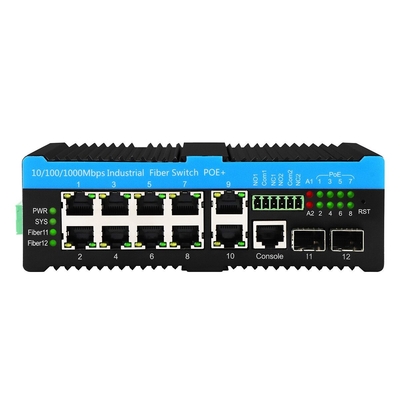

• IM-FP21008GW is Gigabit Managed 10-port,L2 Gigabit Ethernet 90W PoE Ring Switch.
• It provides IEEE802.3af/at/bt compliant up to 90W PoE power on 8 copper ports for total power of 750W
• This enables it to provide power for the most demanding PoE applications for PTz domes, LED lighting and wireless products.
• It is compliant with G.8032 ERPS V1/V2 Ring protocol.

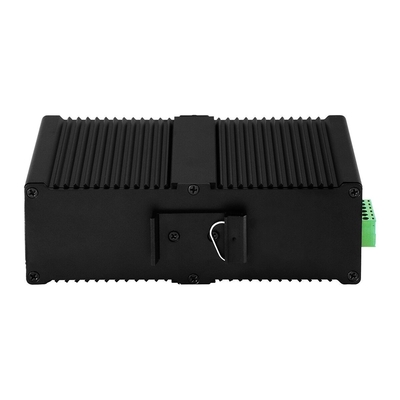

• It is uniquely designed for outdoor enclosure applications with a ribbed temperature disbursement chassis, 6kv surge protection and user programmable port thermal protection of over temperature shut down to prevent damage to the IM-FP21008GW from excessive heat.

Management Features of L2 Managed Switch

1. Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
2. Support Qos, transport classification Qos, Cos, bandwidth control
3. (input/output direction), storm suppression ,differentiated services
4. Support IEEE802.1q VLAN,VLAN port ,based Mac VLAN,IP subnet VLAN, Protocol VLAN,VLAN convert, MVR
5. Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation
6. Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
7. Support IGMP agent report, MLD snooping
8. Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+,HTTP/HTTPS, SSL/SSH v2
9. Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
10. Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
11. Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
12. Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
13. Support IPV6 Telnet server /ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP,TFTP, QoS, ACL.

Application

• Supply power to power-hungry devices
• Optical Telecommunication
• Remote controlling and monitoring
• Outdoor CCTV security surveillance
• Broadband private network

FAQ

1, What chip is it based?

Olycom: Vitesse

2, Can I customize it?

Olycom: Yes

We support OEM services like logo, model name, label, PVC mask and product parts(mounting kit, power terminal block etc.)

3, Can I connect it with 10/100M devices?

Olycom: Yes

For LAN ports, they are 10/100/1000M auto-sensing

For Fiber ports, please configure 100Mbps speed via Web GUI or CLI

4, Can I shut down PoE function for some ports when necessary?

A: Yes

All the PoE managed switches in this series support PoE management

Please just set PoE status via Web GUI or CLI

5, Do you do SKD/CKD?

A: Yes

As a factory, we have dealt with this many times.
