Olycom 20 Port L2 Managed Din Rail Gigabit Managed Fiber Switch
Key Features
Introduction

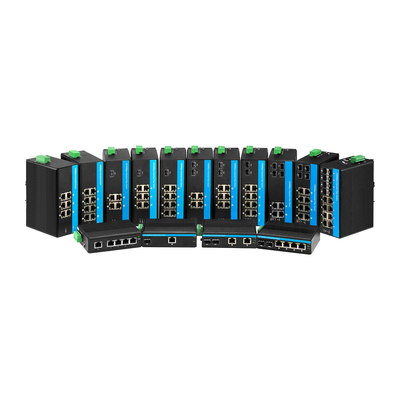

IM-FS041600GW series is the 10/100/1000Mbps Managed industrial fiber switch
Meet IP40 protection degree and EMC industrial grade requirements

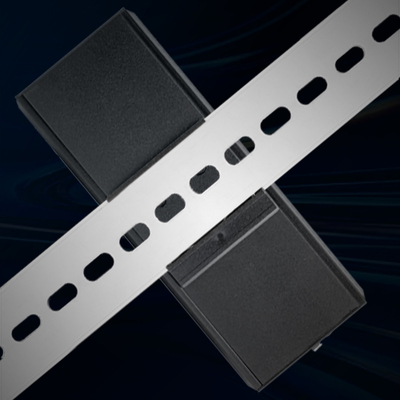

DIN rail installation
Pass through dangerous environmental certification and comply with FCC and CE standards
Specification
| Product Name | 10/100/1000Mbps Managed Industrial Fiber Switch (4F+16TP) |
| Model No. | IM-FS041600GW |
| Port |
4 x 1000Mpbs SFP port SM: 1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km MM: 1310nm, 2Km; 850nm, 500m 16x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Standard |
IEEE802.3 IEEE802.3u IEEE802.3z IEEE802.3ab IEEE802.3x IEEE802.3az IEEE802.3ah IEEE802.1X IEEE802.1Q |
| MAC address table | 8K |
| Maximum packet length | Up to 10k Bytes |
| Packet forwarding rate | 1488100 (64Byte) |
| Packet buffer | 4M |
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km |
| LEDs | Power, network, fiber |
| Environment |
Working Temp: -40°～ 85°C Storage Temp: -40°～ 85°C Working humidity: 10%～90%, non-condensing Storage humidity: 10%～95%, non-condensing |
| Industry Standards |
EMI: FCC Part 15 Subpart B Class A,EN 55022 Class A EMS: EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8; Traffic Control: NEMA-TS2; Vibration: IEC 60068-2-6; Freefall: IEC 60068-2-32; Shock: IEC 60068-2-27; Rail Traffic: EN 50121-4 |
| Safety | CE Mark ,commercial ; CE/LVD EN60950 |
| Mechanical information |
Shell: Corrugated metal shell Safety class: IP40 Dimension: 160 x 130 x 70mm Weight: 1.2kg Mounting method: Din-rail mounting |
| Warranty | Replacement within 1 year; 3 years repairing |
Dimension
Packing List
FAQ
How can I install the device?
A: Each model in this series supports DIN35/Wall mounting.
It requires necessary accessories in installation like screws, mounting kit etc., some of them are included in the packing box, some are not.
If possible to write the label as I want?
A: Yes, please just send the content and format, we will print a sample piece for your confirmation.
The label is usually attached on the side panel.
What is the packing list?
A: There is a device, protective foam, a user manual, a warranty card and a console cable in the box.
But SFP modules and power supply are NOT included, please purchase it from us separately.
Do you have any certification?
Yes, our company is ISO9001 certified.
We have CE/FCC/RoHS/E-mark/CCC certificates for our models.
What does the label look like?
There will be 2 copies for each piece of manufactured product. One is attached on the device, the other is on the packing box.
It is available in different languages and contents, so you can add your logo or model name in it.
Do you support OEM&ODM?
Yes, this is our competitive advantage.
There is a detailed introduction in the below link.
https://www.industrialnetworkswitch.com/factory.html
What incoterms do you support?
We are an EXW factory, EXW term is our focus.
Sometimes we do FOB/CIF for bulk orders, this depends on cases. Please talk with us for more information.
