19" 3U 18slots Chassis Video Data Fiber Converter Rack Mount Chassis Dual Power Supply

1 pc
MOQ
Negotiable
Price
19" 3U 18slots Chassis Video Data Fiber Converter Rack Mount Chassis Dual Power Supply
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Video Converter Rack
Operating Voltage: Dual Power Supply, 220V/-48V
MTBF: ≥ 5*104 Hours
Dimension: 485(L)*300(W)*135(H) Mm
Slots Quantity: 18 Slots
High Light:

19'' Video Data fiber Converter

,

Rack mount Video Data fiber Converter

,

18slots Video Data fiber Converter

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Olycom
Certification: CE RoHS FCC
Model Number: OM1918V
Payment & Shipping Terms
Packaging Details: 1pc in a box
Delivery Time: 3~5 working days
Payment Terms: T/T, PayPal
Supply Ability: 5000pcs/month
Product Description

19" 3U 18slots Chassis Video Data fiber Converter

Rack mount chassis dual power supply

Introduction

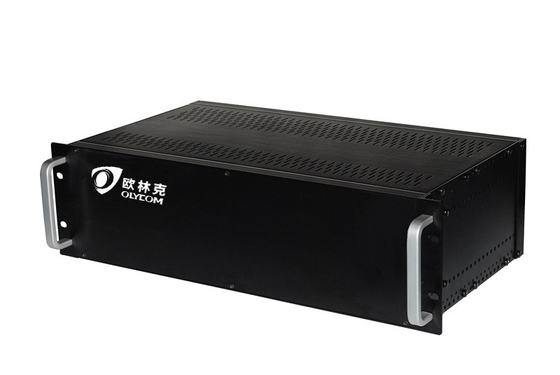

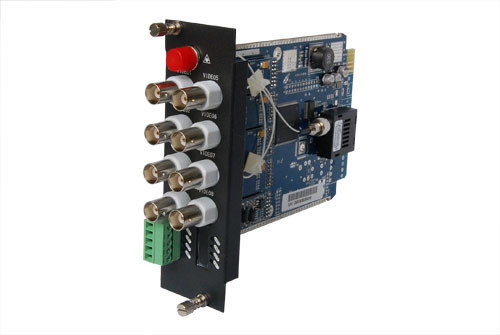

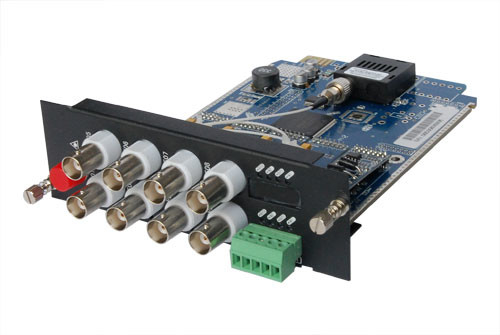

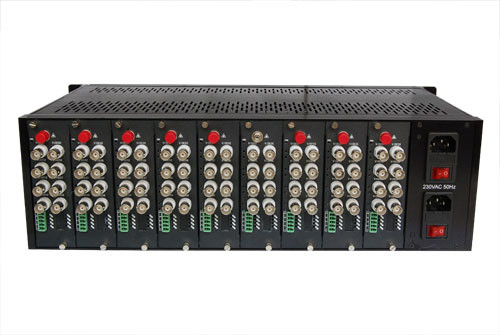

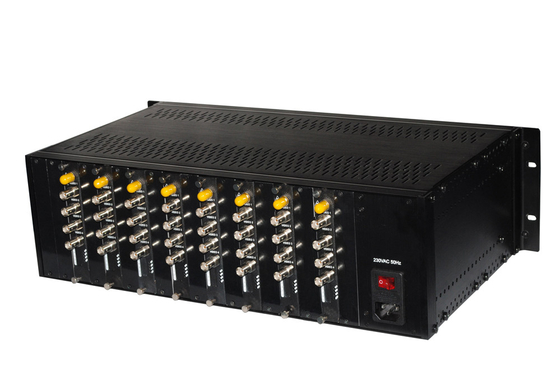

OLYCOM 19'' 3U video converter rack OM1918V is designed to concentrate OM620 series 1~8 channel video optical receiver cards. The play-and-plug design provides great convenience in installation. It can hold 18 pieces of 1~4-ch cards, or 9 pieces of 8-ch cards.



19" 3U 18slots Chassis Video Data Fiber Converter Rack Mount Chassis Dual Power Supply 0

19" 3U 18slots Chassis Video Data Fiber Converter Rack Mount Chassis Dual Power Supply 1

19" 3U 18slots Chassis Video Data Fiber Converter Rack Mount Chassis Dual Power Supply 2







Key Features

  • Lightning-proof solution
  • Dual power supply
  • Robust metal casing
  • Hot plug-and-play with switch power supply
  • Maximum convenience for centralized control



Specification



Slots
Slots quantity 18 slots
Compatibility(with cards) 1~4ch cards(18pcs); 8ch cards(9pcs)
Flexibility Support mixed installation
Power. Environmental. Mechanical
Operating voltage Dual power supply, 220V/-48V
Operating temperature -30℃~+75℃
Storage temperature -40℃~+85℃
MTBF ≥ 5*104 hours
Dimension-standalone 485(L)*300(W)*135(H) mm
Weight 5.12kg/piece (Net Weight), 6.12kg/piece (Gross Weight)







Application

  • Express way security protection and toll station system
  • City traffic monitoring system
  • Building and campus monitoring system
  • Industrial monitoring (airport, chemical plant, railway, etc.)
  • Military monitoring (frontier defense, national defense)
  • Electronic power oil field, TV station program broadcasting



19" 3U 18slots Chassis Video Data Fiber Converter Rack Mount Chassis Dual Power Supply 3

Production Steps:

  • Welding: Weld the necessary components
  • Cleaning: To avoid any possible dysfunction due to dust or scraps on the PCB boards.
  • Assembling: Builds up components of a product, like panels, screws, PCB boards.
  • Testing: To make sure the product is basically working fine after assembling
  • Aging: To check if the product can work smoothly for long time without any minors such as LED indicators, voltage. This will usually last for 24 to 48 hours.
  • Testing: To test if the product can process data or video signals correctly. Any data loss? Transmission rate correct? Any data packet failure? Such questions would be verified in this procedure.
  • QC testing: This is the third and also last check of product quality. If it goes good, our packing staff will pack it up according to customer requirements and attach to the packing box a product label.
  • When all above is done, the product will go to market.
