Industrial Managed Ethernet Switch 8 Port Gigabit Network 2.5G SFP Fiber

8 Port 2.5G Fiber Industrial Managed Ethernet Switch

Key Features of Managed Switch 8 Port

• 8 x 10/100/1000Mbps Auto-sensing RJ45 ports
• 2 x 100/1000/2500Mbps SFP fiber port
• 6 KV Ethernet surge protection, adapt to a harsh outdoor environment
• Support Auto MDI/MDIX
• Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
• IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
• A store-and-forward switching mechanism
• Operating environment temperature:-40 ° ~75 ° c
• Support cable diagnosis and can locate the fault point
• Support IEEE802.3az EEE (Energy Efficient Ethernet) Management, and optimize power consumption

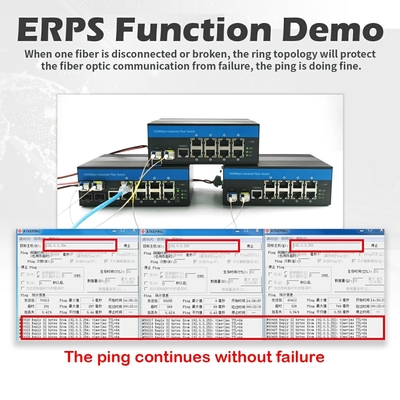

• Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
• Support Qos, transport classification Qos, Cos, bandwidth control (input/output direction), storm suppression , differentiated services
• Support IEEE802.1q VLAN, VLAN port , based Mac VLAN, IP subnet VLAN, Protocol VLAN ,VLAN convert, MVR
• Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation
• Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
• Support IGMP agent report, MLD snooping
• Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+,HTTP/HTTPS, SSL/SSH v2
• Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
• Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
• Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
• Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
• Support IPV6 Telnet server /ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP, TFTP, QoS, ACL

Specification of 2.5G Fiber Switch

Mechanical Information of Gigabit Ethernet Switch

• Shell: Corrugated metal shell
• Safety class: IP40
• Dimension: 158 x 114.8 x 60mm
• Mounting method: Din-rail mounting

Lead Time of Industrial Fiber Switch

FAQ of Managed Switch

A: Yes, we provide OEM service. If you have requirements for the customized product, we also provide it.

Q: Is a small DIN rail included?

A: This is a DIN rail switch, but the DIN rail is not included.

Q: Do you have CE, FCC, ROHS?

A: Yes.

Q: How do you guarantee the quality?

A: We absolutely never use old and refurbished materials. Always a pre-production sample before mass production; 48 hours aging test before delivery. Always final Inspection before shipment.

Introduction of Olycom Industrial Switch

• The IM-FS280GW series, manufactured by Shenzhen Olycom Technology Co., Ltd., is a top-of-the-line 10/100/1000 Mbps industrial managed fiber switch specifically designed for businesses operating in challenging environments.

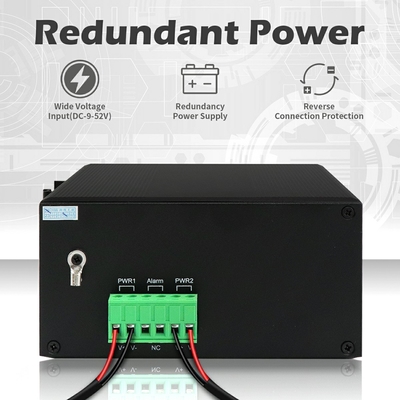

• With a wide temperature range (from -40 ℃ to + 75 ℃), support for dual power input, web management capabilities, and IP40 protection degree, this device is built to last.
• In addition, the IM-FS280GW series is EMC industrial grade certified, has undergone rigorous testing to secure compliance with FCC and CE standards, and is equipped with a DIN rail installation system for easy setup. By choosing this reliable industrial-grade switch, businesses can be assured of the continuous and stable operation of their automation systems even under the most demanding conditions.

Application of 2.5G Ring Switch
