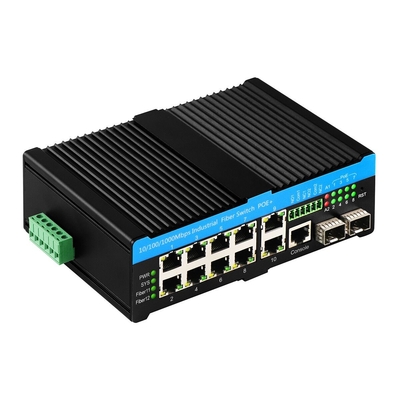

8 Port Layer 2 Managed Gigabit 90W PoE Switch
Specification of Industrial Fiber Switch
| Port |
2*100/1000/2500Mpbs SFP ports
SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km
MM: 1310nm, 2Km; 850nm, 500-meter
8*UTP PoE Downlink(PoE af/at/bt)
1*Console port

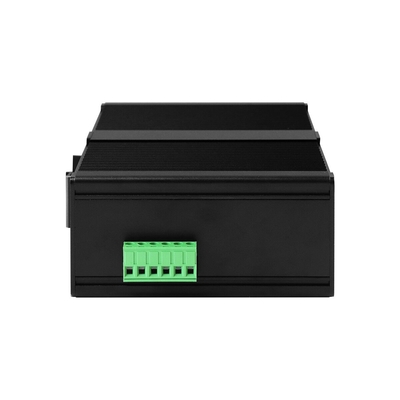

1*6-PIN power terminal block
2*Alarm output
|
| Protocol |
IEEE 802.3
IEEE802.3U
IEEE802.3ab
IEEE802.3z
IEEE802.1d STP
IEEE802.1w RSTP
IEEE802.1s MSTP
ITU-T G.8023 EPR/Y.1344
IEEE802.1Q
IEEE802.1X
IEEE802.3ad
IEEE802.3x
IEEE802.1ad
IEEE802.1p
IEEE802.1ab
IEEE802.3az
IEEE802.3af
IEEE802.3at
IEEE802.3bt
|
| Switching Features |
Transmission mode: storage and forward
Forwarding delay: <10us
System bandwidth: 36Gbps(non-traffic jam)
DRAM size: 128M
Flash size: 16M
Packet buffer size: 4Mb
VLAND ID: 4096
MAC Address Table Size: 8K
Jumbo Frame: 9.6KB
|
| Network Media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
|

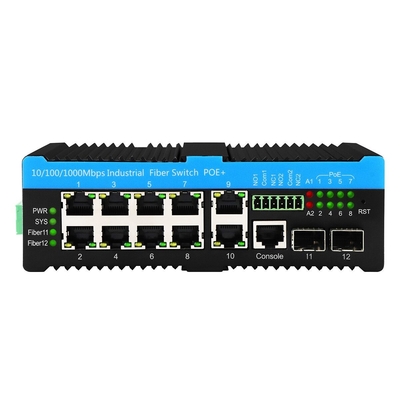

| LEDs |
Power, System, Network, PoE, Fiber, Alarm
PWR: Power, red
SYS: System, red
Network Link/Activity: Green LED
Network Data rate : Orange LED (ON for 1G)
PoE: Green Active
Fiber Link: Green
LED Alarm: Red Flashing
|
| Power Supply |
Input voltage: 48V(max 57V)
PoE output voltage: 48V
Single PoE output power: 15.4W/30W/60W/90W(port 1~8)
Working Temperature: -40°C to +75°C(at 240W PoE Output)
Working Temperature: -40°C to +55°C(at 480W PoE Output)
Max budget: 720W(Not suggested considering service life and dissipation)
Reverse connection: support
|
| PoE Wiring |
PoE af/at: 1/2(V+), 3/6(V-)
PoE bt: 1/2 (V+), 3/6 (V-), 4/5 (V+), 7/8 (V-)
|
| Environment |
Storage temperature: -40°C～85°C
Working humidity: 10%～90%, non-condensing
Storage humidity: 10%～95%, non-condensing
|
| Industry Standards |
ESD: IEC61000-4-2, ±15KV air, ±6KV contact
EFT: IEC61000-4-4, General ±6KV
Surge: IEC61000-4-5, Differential ±2KV, Common±6KV
|
| Certification |
CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020
EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021
EN 61000-3-3: 2013/A2: 2021/AC:2022
CE-LVD: EN IEC 62368-1: 2020+A11:2020
FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014
|
| Mechanical information |
Shell: Corrugated metal shell, IP40 grade level
Dimension: 165*112*45.5mm

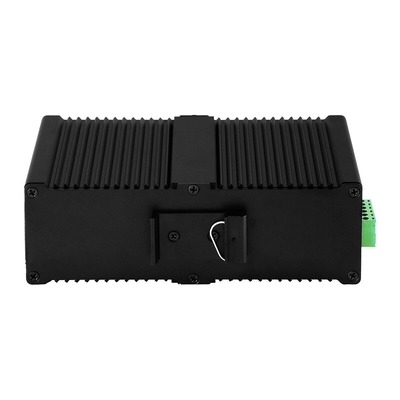

Mounting method: Din-rail mounting
Weight: 0.75Kg/0.9Kg(Net/Gross)
|
| Warranty |
3 years, lifetime technical support |
Web GUI
- Support cable diagnosis and can locate the fault point
- Support IEEE802.3az EEE(Energy Efficient Ethernet) Management, optimize power consumption
- Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
- Support QoS, transport classification QoS, CoS, bandwidth control(input/output direction), storm suppression, differentiated services
- Support IEEE802.1q VLAN, VLAN port, based Mac VLAN, IP subnet VLAN, Protocol VLAN, VLAN convert, MVR
- Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation
- Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
- Support IGMP agent report, MLD snooping
- Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+, HTTP/HTTPS, SSL/SSH v2
- Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
- Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
- Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
- Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
- Support IPV6 Telnet server/ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP, TFTP, QoS, ACL
Introduction to L2 Managed Switch
IM-FP21008GW sets a new standard for Industrial Network Switches(INS) with a data rate up to 2.5G* for handling fiber optics uplink ports.
It operates at temperatures ranging from -40ºC to +75ºC and is able to monitor and report individual port temperatures.
It accepts 57VDC power up to 495W to provide IEEE 802.3bt compliant up to 90W PoE power on 8 copper ports for a total power of 480W. This enables it to provide power for the most demanding PoE applications for PTZ domes, LED lighting, and wireless products.
It is compliant with G.8032V1/V2 Rapid Ring protocol.
It is tested for critical transportation and traffic applications. Its intelligent PoE management allocates the maximum power priority starting from port 1. Dual copper and fiber uplinks enable drop and insert for Ring Network configurations used for roads and perimeter security scenario.
It is uniquely designed for outdoor enclosure applications with a ribbed temperature disbursement chassis, 6KV surge protection, and user-programmable port thermal protection of over-temperature shut down to prevent damage from excessive heat.
It is an ideal solution for a wide variety of projects especially for IDF to MDF applications.
Application of CCTV PoE Switch
FAQ
1, What chip is it based?
Olycom: Vitesse
2, Can I customize it?
Olycom: Yes
We support OEM services like logo, model name, label, PVC mask and product parts(mounting kit, power terminal block etc.)
3, Can I connect it with 10/100M devices?
Olycom: Yes
For LAN ports, they are 10/100/1000M auto-sensing
For Fiber ports, please configure 100Mbps speed via Web GUI or CLI
4, Can I shut down PoE function for some ports when necessary?
A: Yes
All the PoE managed switches in this series support PoE management
Please just set PoE status via Web GUI or CLI
5, Do you do SKD/CKD?
A: Yes
As a factory, we have dealt with this many times.
