Product Name: AWG 40 Wavelengths MuX/Demux Card
Channel Spacing: 0.8nm (100GHz)
Use: WDM
Brand: Olycom/customized/no Brand
Max Power Consumption: 3W
High Light:

1U rack AWG Card

,

40 Wavelengths AWG Card

,

100GHZ AWG Card

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Olycom
Certification: CE RoHS FCC
Model Number: OM3800-OD40-C21-100-A0
Payment & Shipping Terms
Packaging Details: 1pc in a box
Delivery Time: 3~5 working days
Payment Terms: T/T, PayPal
Supply Ability: 5000pcs/month
Product Description

1U rack 100GHZ AWG 40 Wavelengths Multiplexing/Demultiplexing Card

for high-capacity DWDM systems

Introduction



AWG split-wave card launched by Shenzhen Olycom Technology Co. ,Ltd. is mainly used in the DWDM system to complete 40 optical wavelength multiplexing and demultiplexing functions in the C-band range,
which can multiplex different wavelengths of light into one. Multiple optical channels multiplexed on the same fiber are separated by wavelength on the fiber. It is based on waveguide grating technology on silicon substrates and features a unique heatless package design for precise channel coupling, low insertion loss, high channel isolation and high stability for 40- or 80-wave high-capacity DWDM systems.

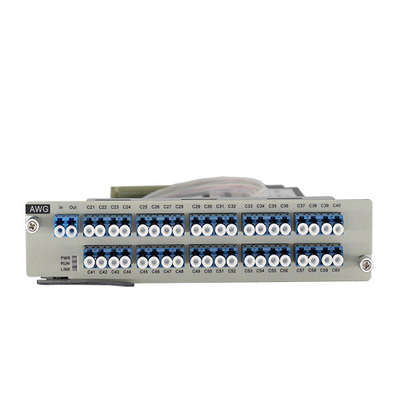

1U rack 100GHZ AWG 40 Wavelengths Multiplexing/Demultiplexing Card for high-capacity DWDM systems 0

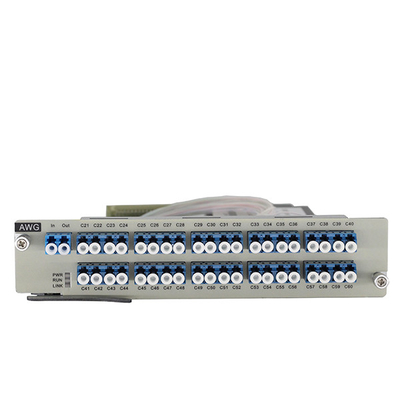

1U rack 100GHZ AWG 40 Wavelengths Multiplexing/Demultiplexing Card for high-capacity DWDM systems 1

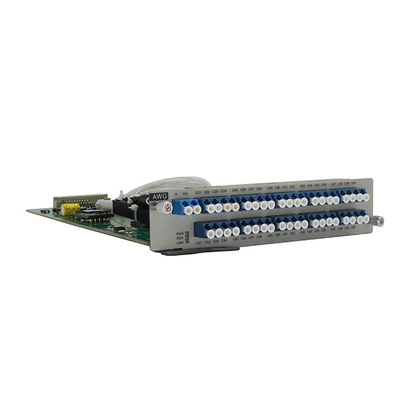

1U rack 100GHZ AWG 40 Wavelengths Multiplexing/Demultiplexing Card for high-capacity DWDM systems 2

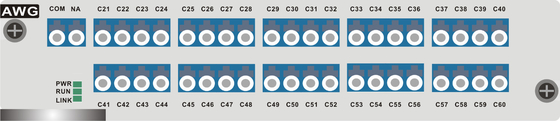

Product Diagram

1U rack 100GHZ AWG 40 Wavelengths Multiplexing/Demultiplexing Card for high-capacity DWDM systems 3



Specification of Multiplexing/Demultiplexing Card

Function Note
Optical channel number 40 channel, support C band (C_EVEN), (C_ODD)
Channel spacing 0.8nm (100GHz)
Channel frequency ±12.5 GHz
Wavelength accuracy ≤0.05nm
Channel insertion loss ≤5.5dB
-1dB bandwidth ≤0.34dB
-3dB bandwidth ≤0.51dB
Adjacent channel isolation ratio ≥25dB
Non-adjacent channel isolation ratio ≥30dB
Total isolation ≥23dB
Flatness ≤1.5dB
Return loss ≥45dB
Directivity ≥50dB
Occupied slot number Support OSP3800 series chassis,occupy 2 slot,(1U)
Optical interface LC/UPC
Extend function Support C band(C_EVEN)40 channel and(C_ODD)40 channel through Interleaver extend to 80 channel
Max power consumption 3W
MTBF >100000 hours


Packing

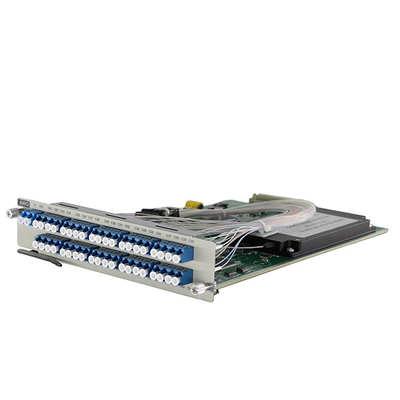

1U rack 100GHZ AWG 40 Wavelengths Multiplexing/Demultiplexing Card for high-capacity DWDM systems 4
