Name: Industrial Unmanaged PoE Switch Fast Ethernet SFP Fiber Rugged Network 120W DC48V
Brand: Shenzhen Olycom Technology Co., Ltd.
SKU: IM-FP244FE
Price: 57.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: 4 Port Fast Ethernet PoE Switch

Fiber: 2*100M SFP Slots

Network: 4*10/100M Auto-sensing RJ45

PoE Budget: 120W

PoE Distance: 100-meter

Customization: Yes

Highlight:

Industrial Unmanaged POE Switch

2 SFP Unmanaged POE Switch

4 RJ45 Unmanaged POE Switch

Basic Infomation

Place of Origin: Shenzhen, China

Brand Name: OLYCOM

Certification: CE, FCC, RoHS

Model Number: IM-FP244FE

Document: OLYCOM Industrial Networkin...24.pdf

Payment & Shipping Terms

Packaging Details: One unit device and one user manual are inside one box , sealed and well protected.

Delivery Time: 3-5 working days

Payment Terms: T/T, PayPal

Supply Ability: 2000 pieces per month

Gallery

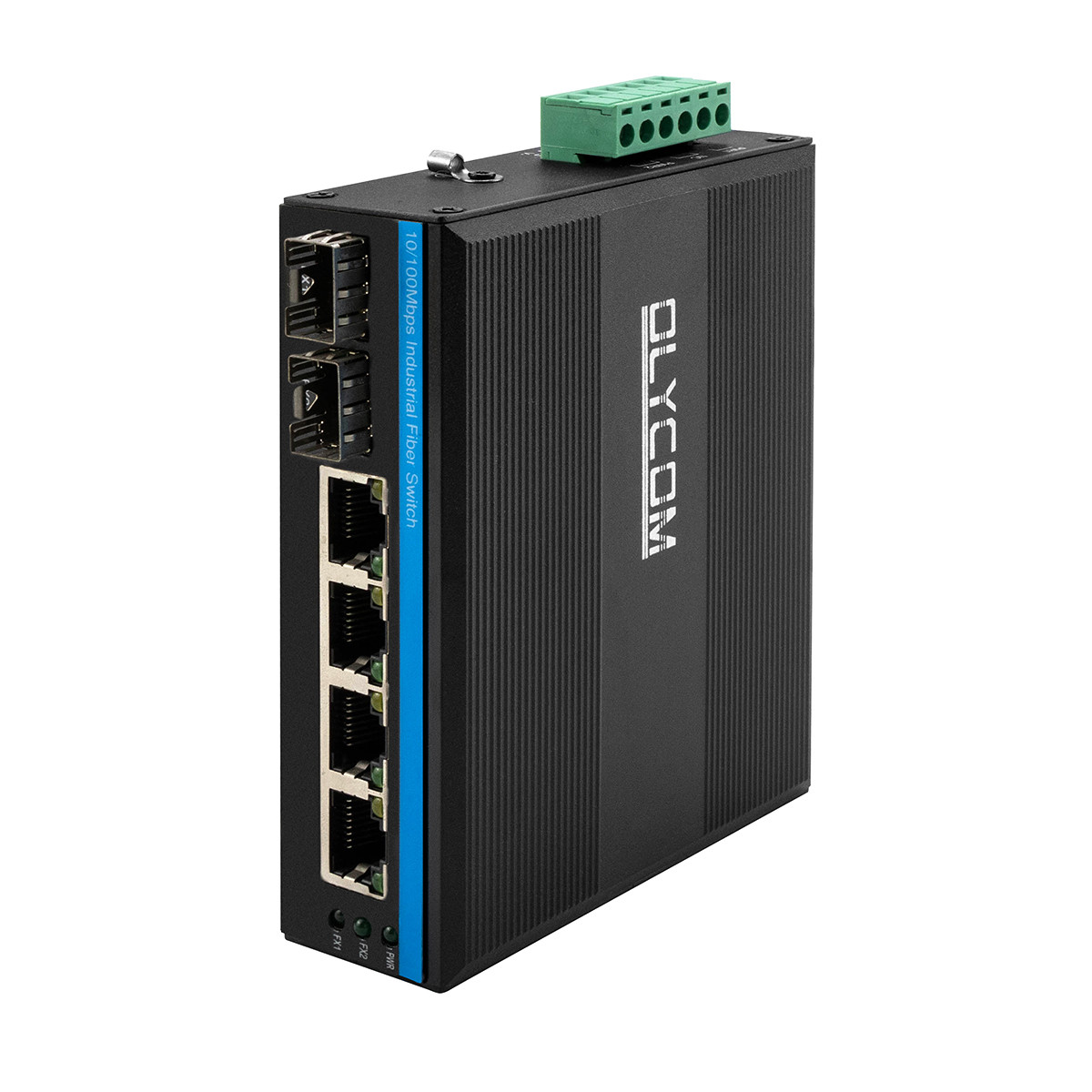

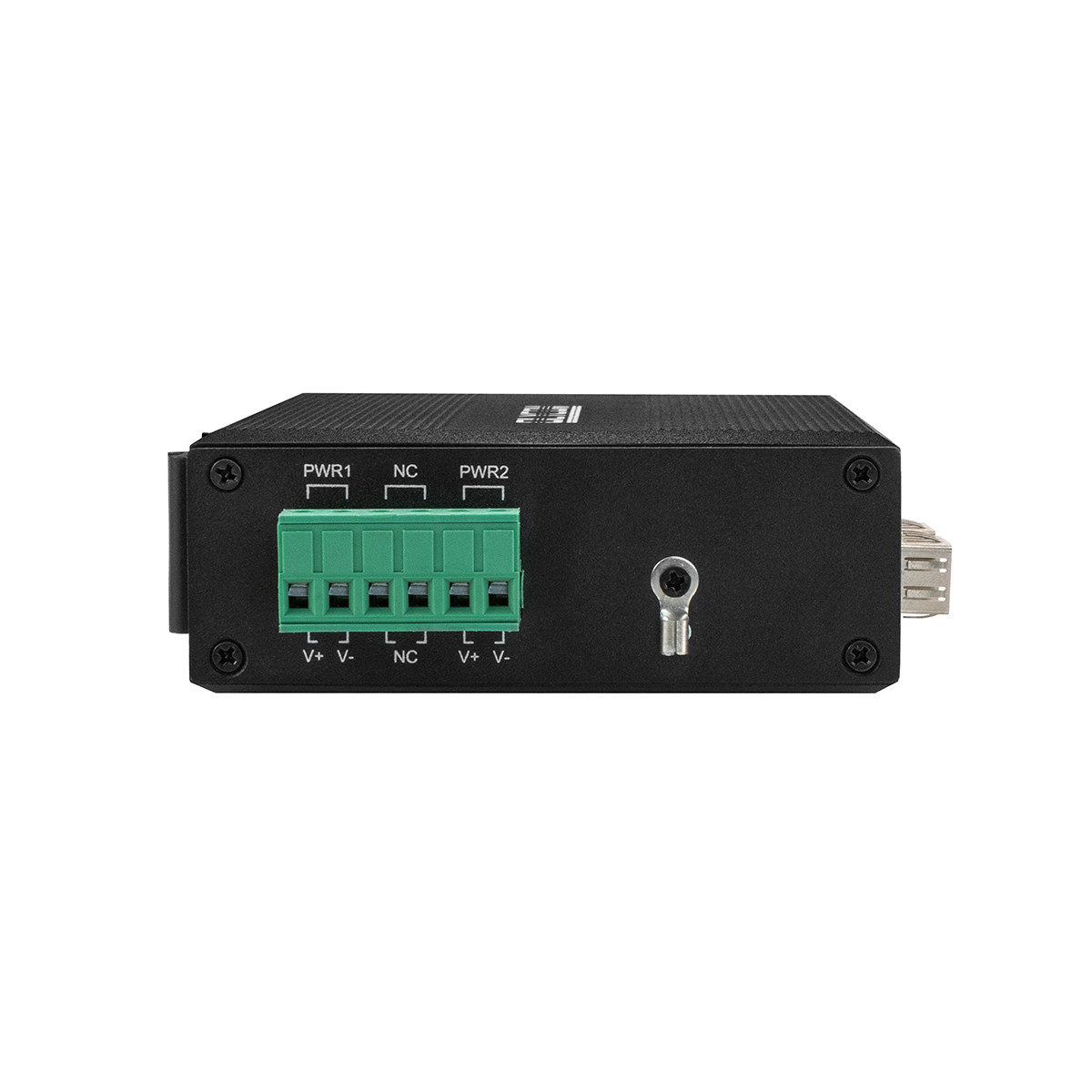

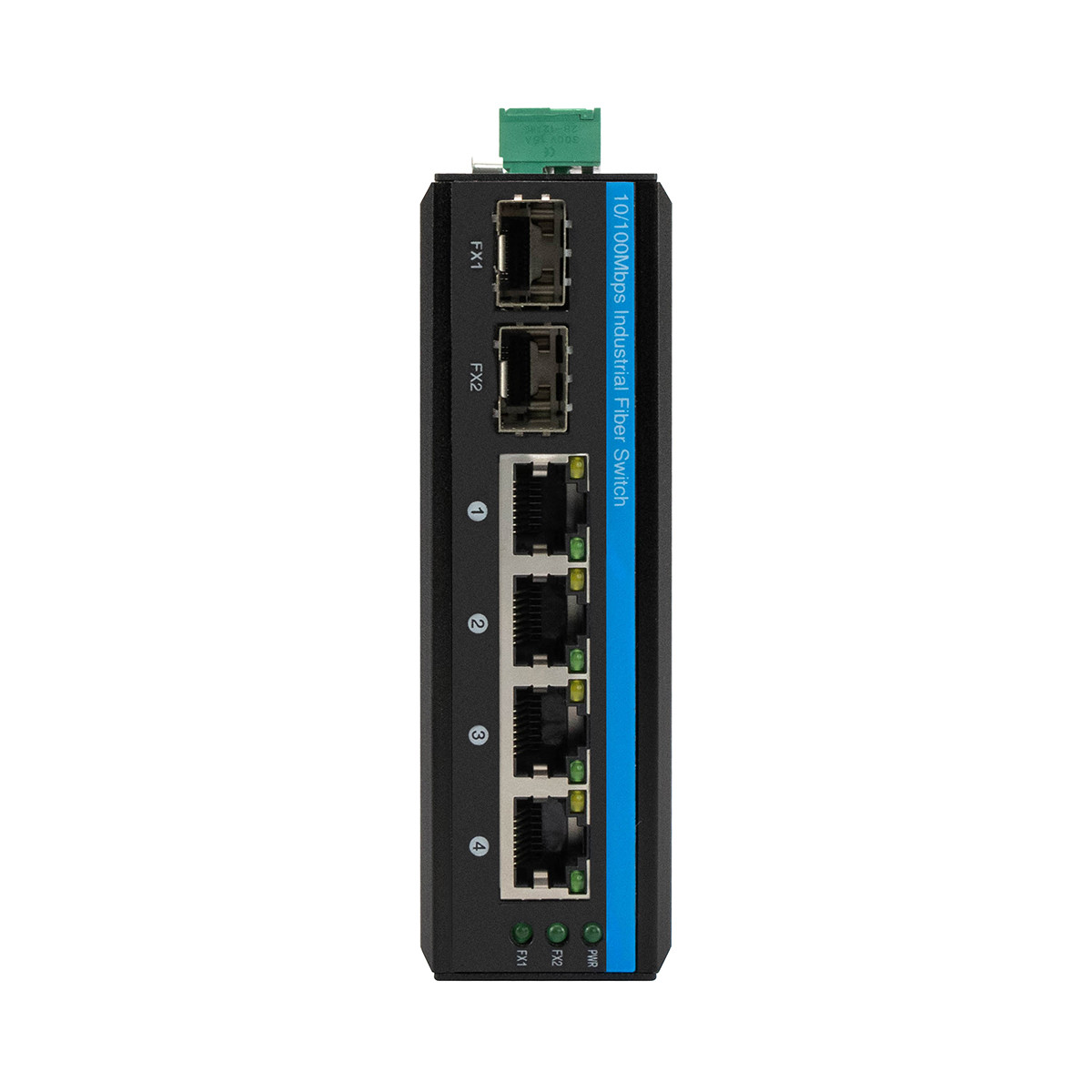

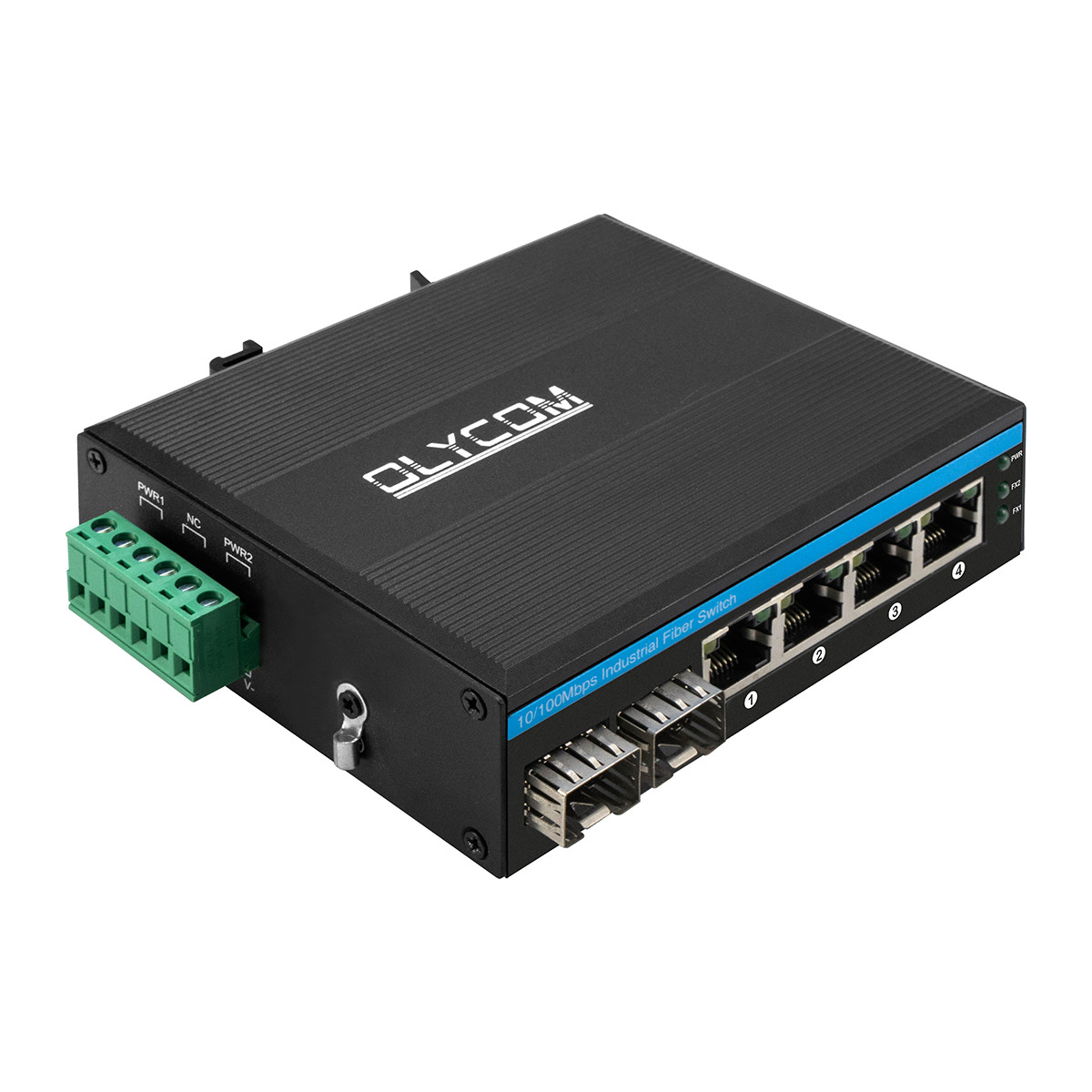

Industrial Unmanaged PoE Switch Fast Ethernet SFP Fiber Rugged Network 120W DC48V

Product Description

10/100Mbps PoE Industrial Fiber Switch 4 Port

Specification of Industrial PoE Switch

Product Name	10/100Mbps Industrial PoE Fiber Switch (2F+4TP)
Model No.	IM-FP244FE
Port	2 x 100Mpbs SFP ports SM: 1310 nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km MM: 1310nm, 2Km 4x10/100M UTP RJ45(Support MDI/MDIX auto-sensing)
Switching features	Transmission mode: storage and forward System bandwidth: 1.2Gbps (non-traffic jam)
Network media	10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km
LEDs	Power, network, fiber
Power supply	PoE power supply input voltage: 48V (max 52V) Single PoE power supply output power: 30W (port 1~4) Total budget: 120W PoE output voltage: 48V Reverse connection: support PoE Wiring: PoE Wiring
Environment	Working temperature: -40°C～75°C Storage temperature: -40°C～85°C Working humidity: 10%～90%, non-condensing Storage humidity: 10%～95%, non-condensing
Industry Standards	ESD: IEC61000-4-2, ±15KV air, ±6KV contact EFT: IEC61000-4-4, General ±6KV Surge: IEC61000-4-5, Differential ±2KV, Common±6KV
Certification	CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020 EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021 EN 61000-3-3: 2013/A2: 2021/AC:2022 CE-LVD: EN IEC 62368-1: 2020+A11:2020 FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014
Mechanical information	Shell: Corrugated metal shell, IP40 grade level Dimension: 1149335mm Mounting method: Din-rail/Wall mounting Weight: 0.35Kg/0.45Kg(Net/Gross)
Warranty	Replacement within 1 year; 3 years repairing

Introduction to Olycom Fiber Switch

Supply active PoE(DC48V) to PoE IP cameras, WAPs etc. through Cat5 or above copper cable
2x100Mbps Auto-sensing SFP fiber ports
4x10/100Mbps Auto-sensing RJ45, IEEE 802.3af/at power on to 1~ 4 ports
Detect the PoE modes(Non-PoE, 802.3af/at compliant) of connected electrical equipment
6KV Ethernet surge protection, adapt to a harsh outdoor environment
Support Auto MDI/MDIX
Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
DIN rail or Wall installation
Power range up to 100 meters
Comply with FCC and CE standards
A store-and-forward switching mechanism
Operating environment temperature: -40°C～75°C

Application of CCTV PoE Switch

Industrial Unmanaged PoE Switch Fast Ethernet SFP Fiber Rugged Network 120W DC48V 0

Dimension and Mounting

Industrial Unmanaged PoE Switch Fast Ethernet SFP Fiber Rugged Network 120W DC48V 1

Industrial Unmanaged PoE Switch Fast Ethernet SFP Fiber Rugged Network 120W DC48V 2

Accessory

Industrial Optical Module
OSPL1E06D-85	100BASE-FX(850nm)
OSPL1E06D	100BASE-FX
OSPL1E20D	100BASE-LX
OSPL1E40D	100BASE-EX
OSBL1E20D-35	100BASE-BX-U(TX 1310 RX1550)
OSBL1E20D-53	100BASE-BX-D(TX 1550 RX1310)
Industrial DIN Power Supply
IM-DAC220/DC48V2.5A	AC220V to DC48V2.5A, -40～70℃
IM-DAC220/DC48V5A	AC220V to DC48V5A, -40～70℃
IM-DAC220/DC48V10A	AC220V to DC48V10A, -40～70℃

FAQ

1, What chip is it based?

Olycom: Realtek

2, Can I customize it?

Olycom: Yes

We support OEM services like logo, model name, label, PVC mask and product parts(mounting kit, power terminal block etc.)

3, Can I connect it with 10/100M devices?

Olycom: Yes

All ports are 10/100/1000M auto-sensing

4, Is it managed?

Olycom: No

Its just simple plug-and-play, but we have a managed model(IM-FP244GM)
