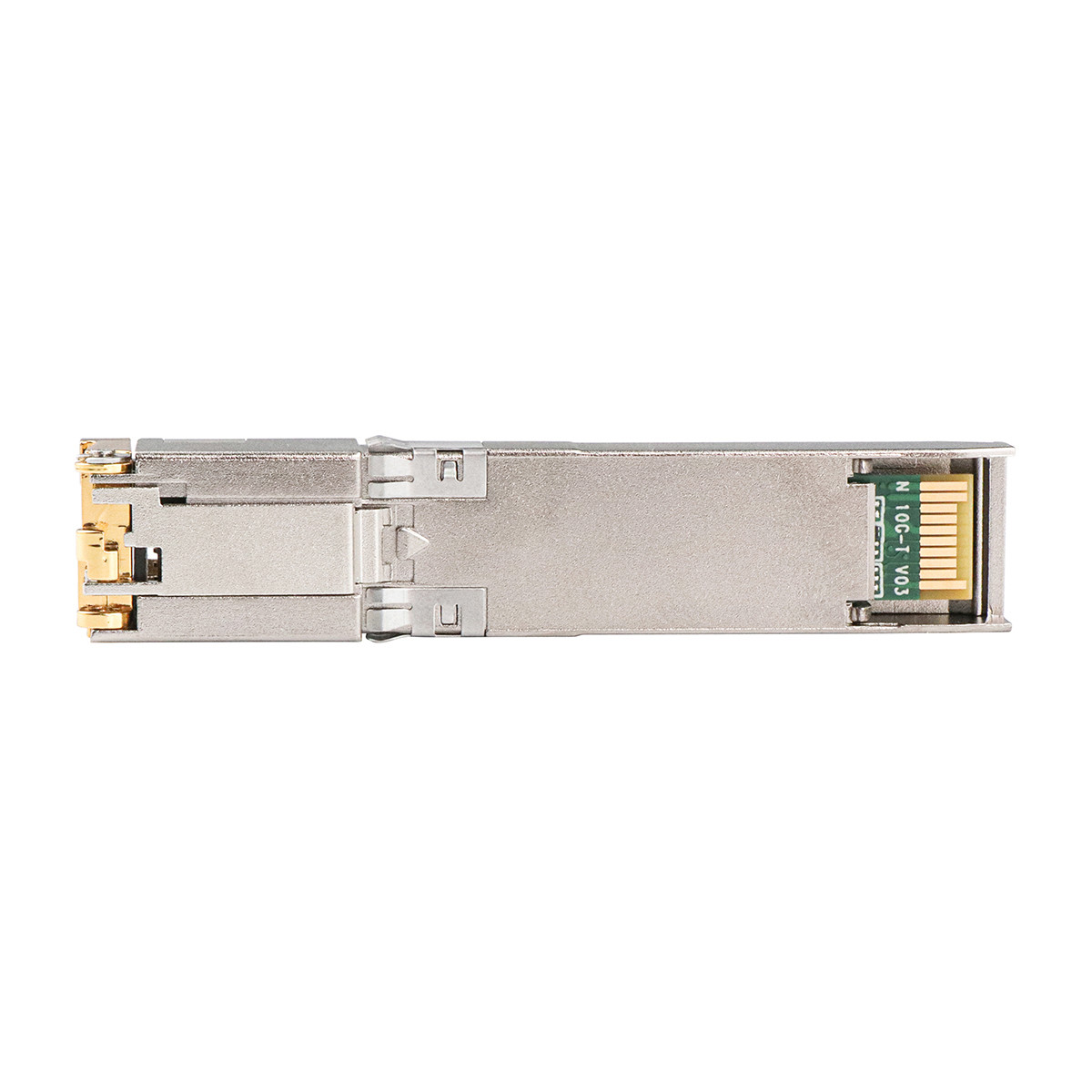

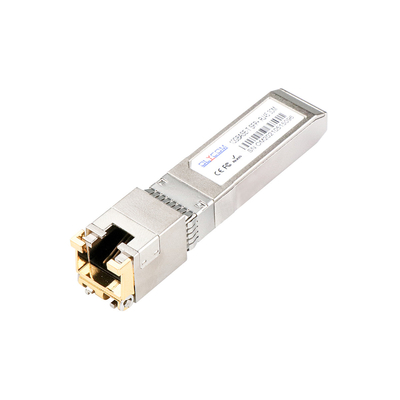

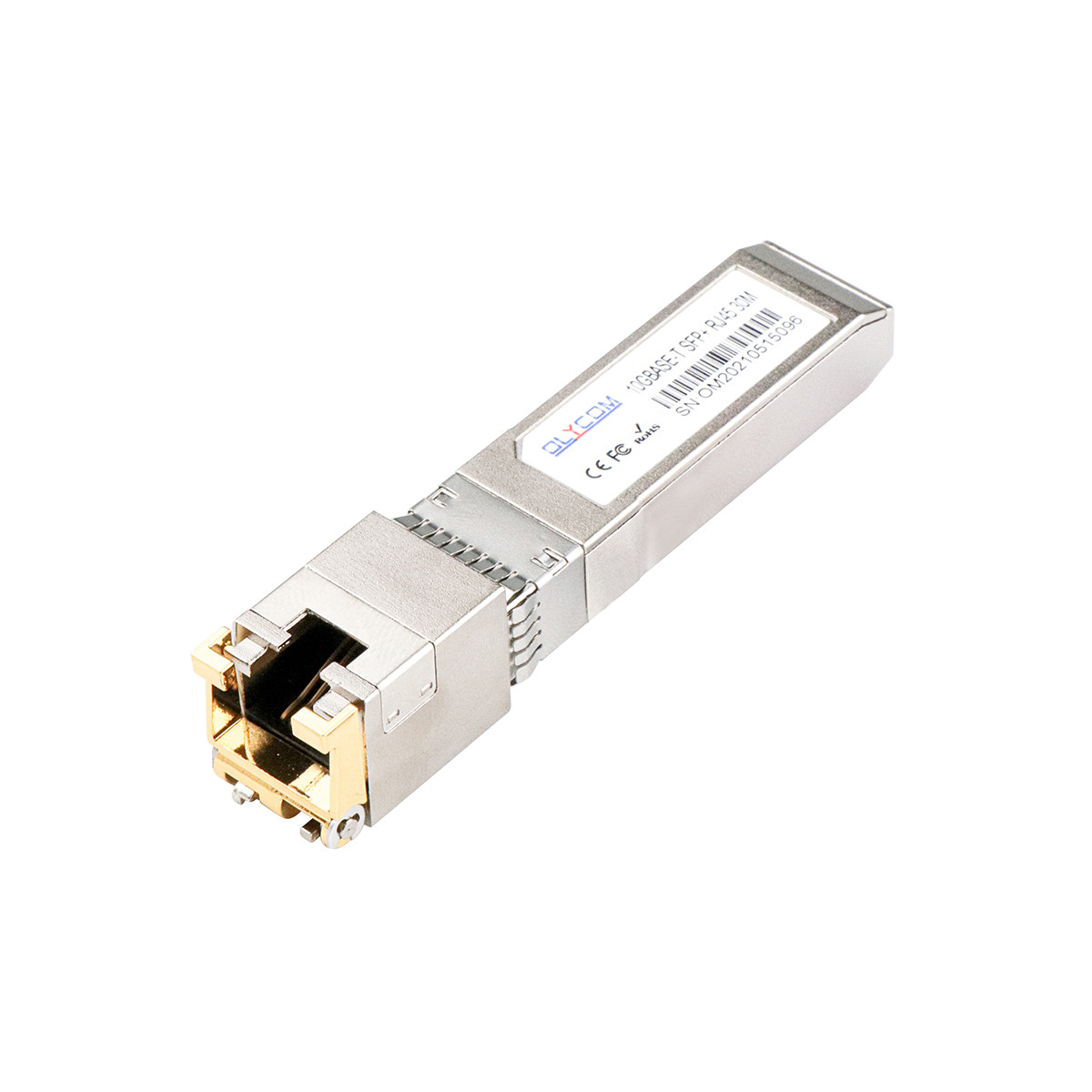

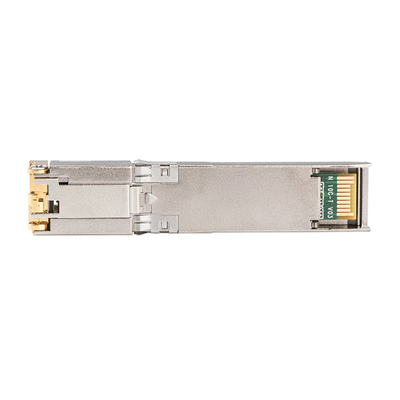

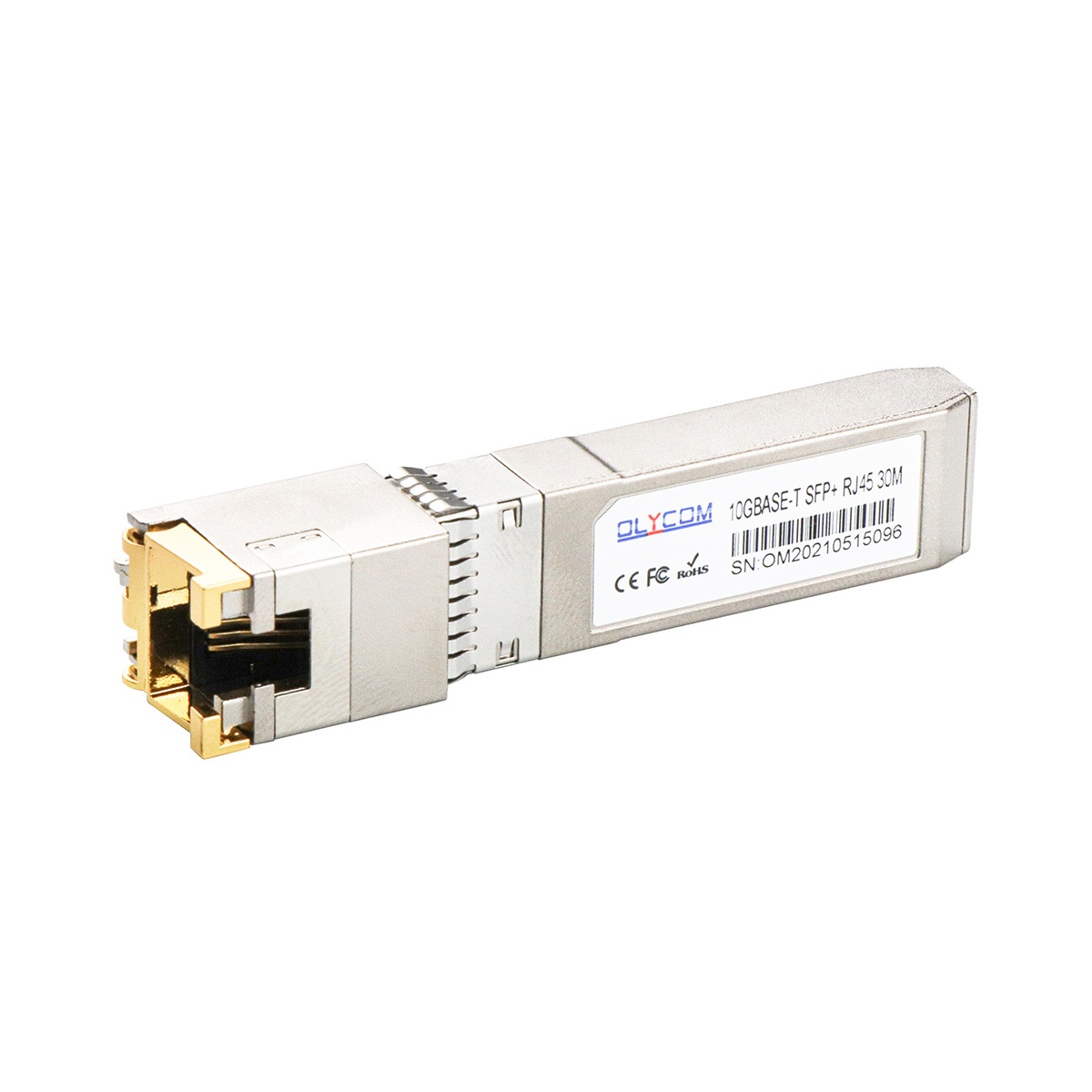

Wholesale UTP Transceiver 10G copper SFP Copper SFP+ Transceiver RJ45 30m
Introduction
OMT10GA-30M Copper Small Form Pluggable (SFP) transceivers are high performance, cost effective module compliant with the 10G Ethernet and 10GBASE-T standards as specified in IEEE 802.3az, which supporting 10Gbps data- rate up to 30 meters reach over unshielded twisted-pair category 6a/7 cables. The module provides standard serial ID information compliant
with SFP+ MSA, which can be accessed with address of A0h via the 2wire serial EEPROM protocol.
Pin Descriptions
| Pin | Signal Name | Description | Plug Seq. | Notes |
| 1 | VEET | Transmitter Ground | 1 | |
| 2 | TX FAULT | Transmitter Fault Indication | 3 | Not supported |
| 3 | TX DISABLE | Transmitter Disable | 3 | |
| 4 | SDA | SDA Serial Data Signal | 3 | |
| 5 | SCL | SCL Serial Clock Signal | 3 | |
| 6 | MOD_ABS | Module Absent. Grounded within the module | 3 | |
| 7 | RS0 | Not Connected | 3 | |
| 8 | LOS | Loss of Signal | 3 | |
| 9 | RS1 | Not Connected | 3 | |
| 10 | VEER | Receiver ground | 1 | |
| 11 | VEER | Receiver ground | 1 | |
| 12 | RD- | Inv. Received Data Out | 3 | |
| 13 | RD+ | Received Data Out | 3 | |
| 14 | VEER | Receiver ground | 1 | |
| 15 | VCCR | Receiver Power Supply | 2 | |
| 16 | VCCT | Transmitter Power Supply | 2 | |
| 17 | VEET | Transmitter Ground | 1 | |
| 18 | TD+ | Transmit Data In | 3 | |
| 19 | TD- | Inv. Transmit Data In | 3 | |
| 20 | VEET | Transmitter Ground | 1 |
+3.3V Volt Electrical Power Interface
The SFP-TG-TCA has an input voltage range of +3.3V +/- 5%.
Table 1. +3.3V Volt electrical power interface
| +3.3V volt Electrical Power Interface | ||||||
| Parameter | Symbol | Min | Typ | Max | Units | Notes/Conditions |
| Supply Current | Is | 750 | mA |
2.5W max power over full range of voltage and temperature. See caution note below |
||
| Input Voltage | Vcc | 3.13 | 3.3 | 3.47 | V | Referenced to GND |
| Maximum Voltage | Vmax | 4 | V | |||
| Surge Current | Isurge | 30 | mA | Hot plug above steady state current. | ||
Mechanical Specifications
