1U 19" 4 Slots Intelligent Multi Service DWDM / OTN Transmission Platform

1U 19" 4 Slots Intelligent Multi Service DWDM / OTN Transmission Platform
Features Gallery Product Description Request A Quote
Type: Fiber Optic Equipment
Use: 20
Function: WDM Transmission System
Product Name: 1U DWDM/OTN Transmission Platform
Dimensions: 442*350*44mm
Network Management: SNMP, Web, CLI, Telnet
High Light:

Intelligent 1U Transmission Platform


multi service 1U Transmission Platform


4 Slots 1U Transmission Platform

Basic Infomation
Place of Origin: China
Brand Name: OLYCOM
Certification: CE, ROHS
Model Number: OLK8000-1U
Payment & Shipping Terms
Packaging Details: 1U chassis
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 1000pcs/month
Product Description

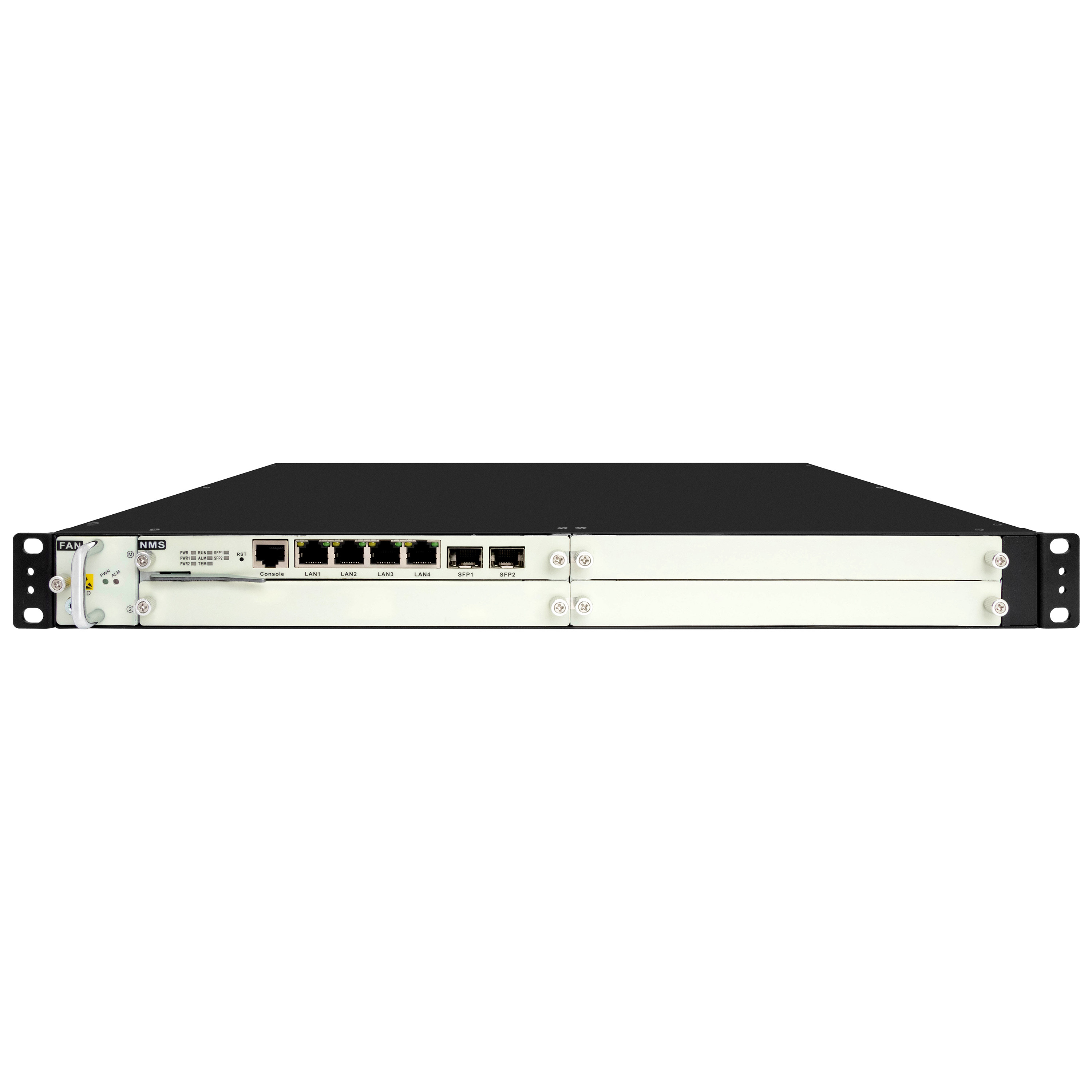

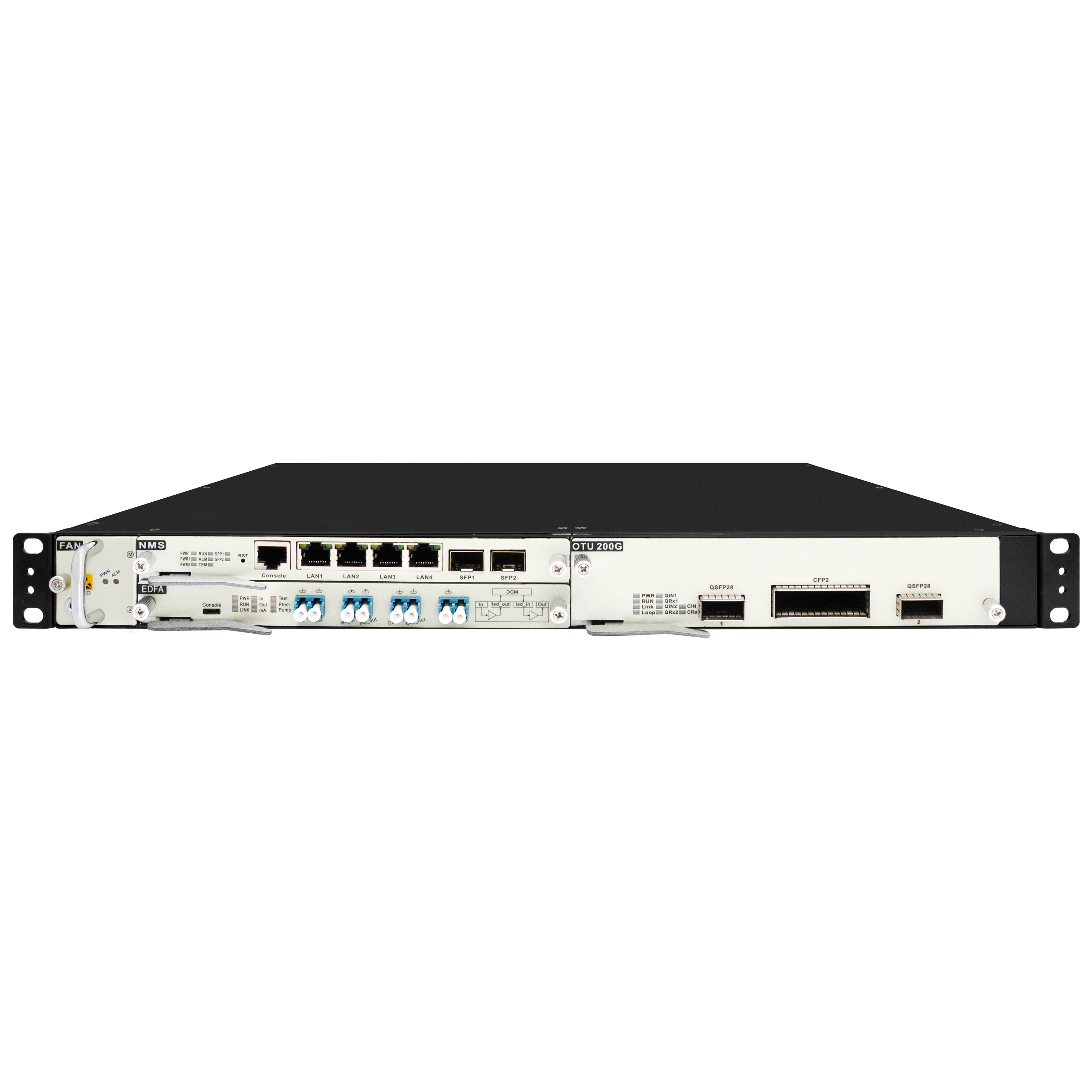

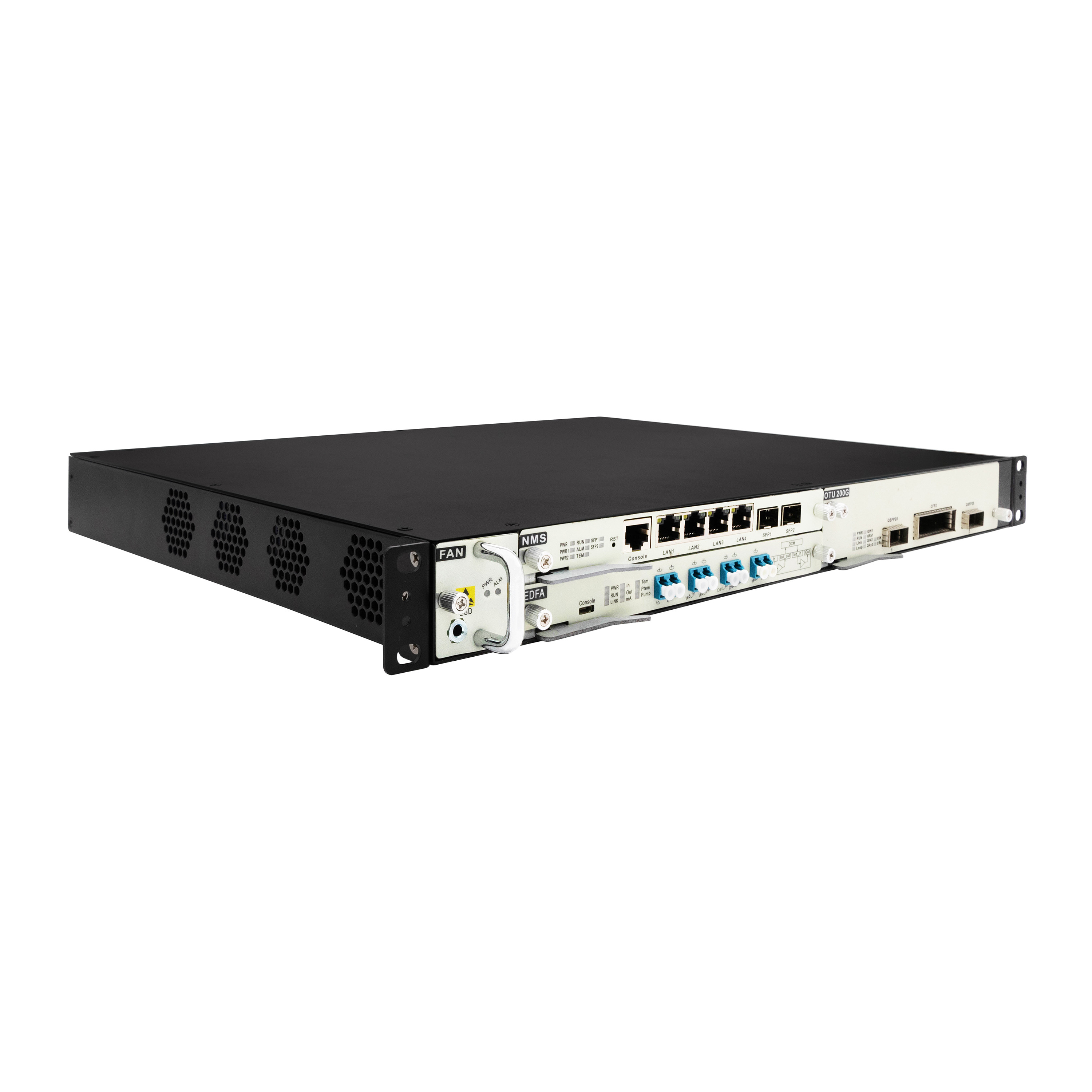

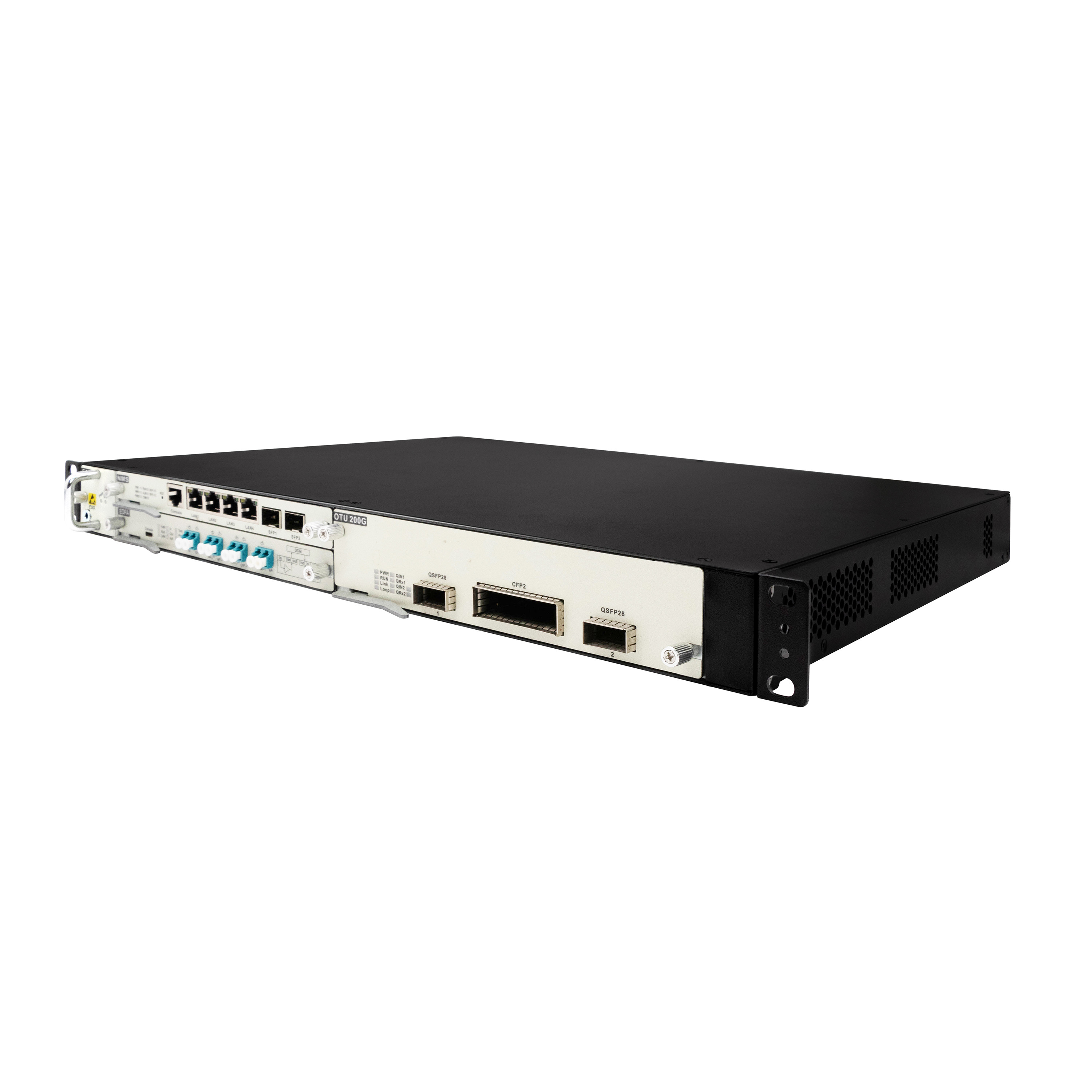

1U 19" 4 Slots Intelligent multi service DWDM / OTN Transmission Platform




OLK8000-1U is a compact, high-capacity, low-cost OTN optical transmission system which introduced by OLYCOM. It adopts CWDM / DWDM common platform design, supports multi-service transparent transmission, and has flexible networking and access capabilities. Applicable to the national backbone network, provincial backbone network, metro backbone network and other core networks, to meet the needs of large-capacity nodes above 1.6T, is the industry‘s most cost-effective transmission application platform. Build alarge-capacity WDM transmission expansion solution for IDC and ISP operators.


Key Features


1. Super T-bit Capacity
2. Intelligent Protection
3. High Reliability
4. Flexible and Transparent Access to Multiple Services
5. Large Capacity
6. Intelligent Transmission
7. Easy to Operate
8. Simple Maintenance
9. Intelligent Management Platform




Function Note
Product model OSP3800-1 OSP3800-2 OSP3800-4 OSP3800-5

Equipment Size

(W × D× H, mm)

1U: (back-power supply)


2U: (back-power supply)


4U: (back-power supply)


5U: (back-power supply)



Service slot 4 slots 8 slots 16 slots 20 slots
Power consumption 120W (Max) 300 W (Max) 600 W (Max) 750W (Max)
Max channel number CWDM: 18 wavelength, DWDM: 96 wavelength(50GHz)
Single channel max rate 200Gbit/s
Line side rate 1.25Gbit/s, 2.5Gbit/s, 8Gbit/s, 10Gbit/s, 16Gbit/s, 25Gbit/s, 40Gbit/s, 200Gbit/s
Suppor service
  • STM-1/4/16/64/256,OC-3/12/48/192/768
  • OTU-1/2/3/4
  • FE/GE/10GE/25GE/40GE/100GE
  • FC 1G/2G/4G/8G/16G/32G
Clock features Support IEEE 1588V2
Network topology Point to point, chain type, star type, ring type
Network level protection Optical channel 1+1 protection, optical multiplex 1+1 protection, optical line 1+1 protection
Equipment level protection Power supply backup
Network management SNMP, Web, CLI, Telnet

"19"and 23" cabinets, ETSI 300mm/600mm cabinets

Wireless outdoor base station cabinet, FTTX outdoor cabinet, hanging wall

Working temperature range -10℃~60℃
Working humidity range 5~95% no condensation
Storage temperature range -40℃~85℃
Heat dissipation Fan cooling
Power supply mode AC: 90 ~ 260V or DC: -36 ~ -72 V




Data center
5G Network
Long Haul Network


OLK8000-1U include the following cards


NMS management card 100G QSFP28 to CFP transponder 2xQSFP28 to CFP2 200G Muxponder
100G Muxponder: QSFP28 ↔ 4xSFP28 40G&100G OEO: 6*QSFP28 SFP28 25G Quad transponder
SFP+ Multi-Rate Quad transponder Redundant Multi-Rate Dual transponder EDFA Optical Amplifiers
Bidi EDFA Optical Amplifiers 16ch DWDM MUX/DEMUX 40ch DWDM MUX/DEMUX(AAWG)
OLP Optical Line Protector DWDM Passive Optical Add/Drop Multiplexers DCM card




Q1: Can i get a lower price? Any discount?

A1: Yes, we can offer discount for large quantity.


Q2: Can i get a free sample?

A2: Sorry, our sample is not for free.


Q3: How about the label and the logo?

A3: Customize label and logo is workable.


Q4: How about the MOQ?

A4: MOQ is 1PC


Q5: Warranty and after-sales issues.

A5: All our goods are 3 years warranty and our engineer will be online for any after-sales questions.
