Name: Gigabit Industrial 5 Port Network Switch E-Mark Certified 4 Port PoE Unmanaged
Brand: Shenzhen Olycom Technology Co., Ltd.
SKU: IM-WP054GE
Price: 57.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Model No.: IM-WP054GE

Uplink: 1*100/1000M LAN Port

Downlink: 4*100/1000M LAN/PoE Ports

PoE Budget: 120W

Input Voltage: DC 48-52V

PoE Standard: 802.3af, 802.3at

Highlight:

Unmanaged PoE Fiber Switch

Din Rail Mounting PoE Fiber Switch

4 Port Unmanaged PoE Switch

Basic Infomation

Place of Origin: Shenzhen, China

Brand Name: OLYCOM

Certification: CE/RoHS/FCC

Model Number: IM-WP054GE

Document: IM-WS080GE.pdf

Payment & Shipping Terms

Packaging Details: One unit device and one user manual are inside one box , sealed and well protected.

Delivery Time: 3-5 working days

Payment Terms: T/T, PayPal

Supply Ability: 6000 pcs per month

Gallery

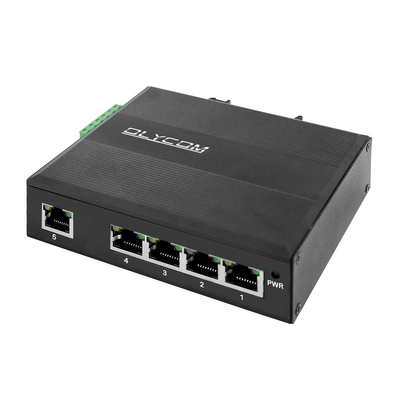

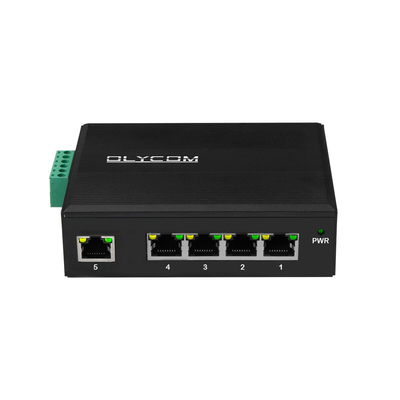

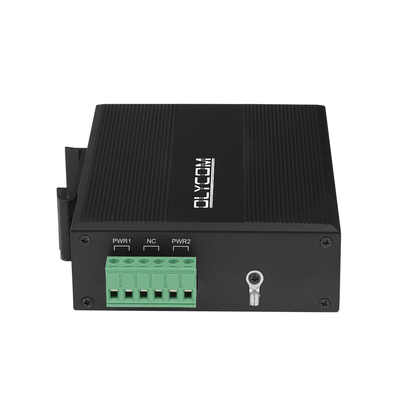

Gigabit Industrial 5 Port Network Switch E-Mark Certified 4 Port PoE Unmanaged

Product Description

Gigabit 5 Port Industrial PoE Switch Hub

Key Features of 5-Port Ethernet Switch

Support power on PoE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
IEEE 802.3 af/at power on/to 1 ~ 4 RJ45 ports
5 x 10/100/1000Mbps Auto-sensing RJ45 ports
6KV Ethernet surge protection, adapt to a harsh outdoor environment
Meet IP40 protection degree and EMC industrial grade requirements
DIN rail or Wall installation
Power range up to 100 meters
Comply with FCC and CE standards
Support Auto MDI/MDIX
Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
A store-and-forward switching mechanism
Operating environment temperature: -40°C～75°C

Specification of Industrial PoE Switch

Product Name	10/100/1000Mbps Industrial PoE Network Switch(5TP)
Model No.	IM-WP054GE
Port	5*10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Protocol	IEEE 802.3(10Base-T) IEEE 802.3u(100Base-TX) IEEE 802.3ab(1000Base-TX) IEEE 802.3af 15.4W(PoE) IEEE 802.3at 30W(PoE+)
Switching Features	Transmission mode: Storage and forward Forwarding delay: <10us System bandwidth: 10Gbps(non-traffic jam) Forwarding rate: 14.88Mpps MAC: 2K Packet buffer size: 1.75Mb
Network Media	10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
LEDs	Power, Network PWR: Power Copper orange: Speed indicator On:Working speed is 1000Mbps Off:Disconnected or working speed is 10/100Mbps Copper green: Link/Act indicator On:transmission is normal Blinking: in transmission Off:transmission is NOT normal
Power Supply	Single PoE output power: 15.4W/30W(port 1~4) Single PoE output voltage: DC48V(port 1~4)
PoE Wiring	PoE af/at: 1/2 (V+), 3/6 (V-)
Environment	Working temperature: -40°C～75°C Storage temperature: -40°C～85°C Working humidity: 10%～90%, non-condensing Storage humidity: 10%～95%, non-condensing
Industry Standards	ESD: IEC61000-4-2, ±15KV air, ±6KV contact EFT: IEC61000-4-4, General ±6KV Surge: IEC61000-4-5, Differential ±2KV, Common±6KV
Certification	CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020 EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021 EN 61000-3-3: 2013/A2: 2021/AC:2022 CE-LVD: EN IEC 62368-1: 2020+A11:2020 FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014
Mechanical information	Shell: Corrugated metal shell, IP40 grade level Dimension: 1149335mm Mounting method: Din-rail/Wall mounting Weight: 0.35Kg/0.45Kg(Net/Gross)
Warranty	3 years, lifetime technical support

Dimension

Gigabit Industrial 5 Port Network Switch E-Mark Certified 4 Port PoE Unmanaged 0

Application of CCTV PoE Switch

Gigabit Industrial 5 Port Network Switch E-Mark Certified 4 Port PoE Unmanaged 1

Ordering Information

IM-WS050GE

Industrial Ethernet Switch

5*100/1000M, Unmanaged, Non-PoE, DC12V~DC52V dual input

Ideal in vehicle network or industrial automation system

IM-WP054GE

Industrial PoE Switch

5*100/1000M, Unmanaged, PoE af/at for port 1~4, 120W budget

DC48V~DC52V dual input

Remark: PoE bt*60W is optional

Ideal in CCTV security system

IM-WP054BGE

Industrial PoE Switch

5*100/1000M, Unmanaged, PoE af/at for port 1~4, 120W budget

DC12V~DC48V dual input

With internal power booster

Ideal in vehicle network or solar power system

IM-WPD054GE

Industrial PoE Switch

5*100/1000M, Unmanaged, 1*PD port(30W/60W/90W)+PoE af/at for port 1~4, No need to use extra power supply

Ideal in CCTV security system

IM-WS050GM

Industrial Web Managed Switch

5*100M/1000M, Web Managed(QoS, VLAN etc.), Non-PoE

DC12V~DC52V dual input

Ideal in industrial automation systems

FAQ

1, What chip is it based?

Olycom: Realtek

2, Can I customize it?

Olycom: Yes. We support OEM services like logo, model name, label, PVC mask and product parts(mounting kit, power terminal block etc.)

3, Can I connect it with 10/100M devices?

Olycom: Yes. All ports are 10/100/1000M auto-sensing
