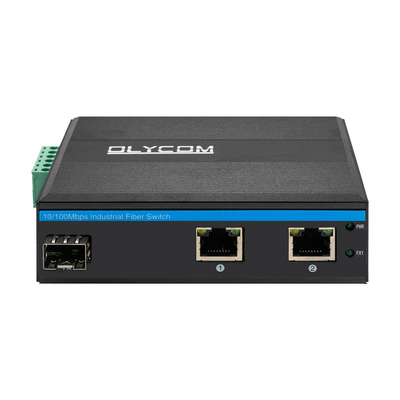

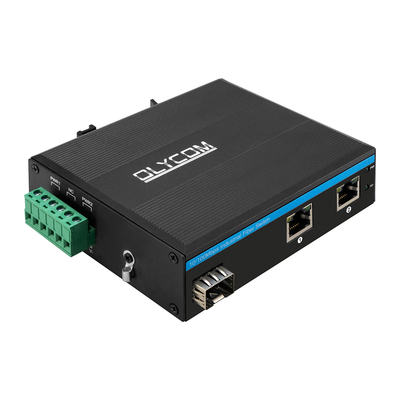

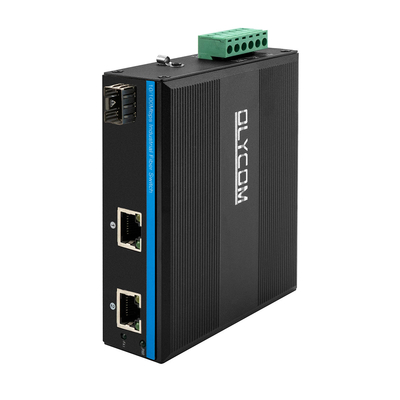

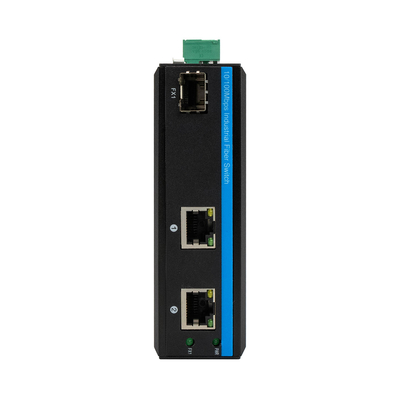

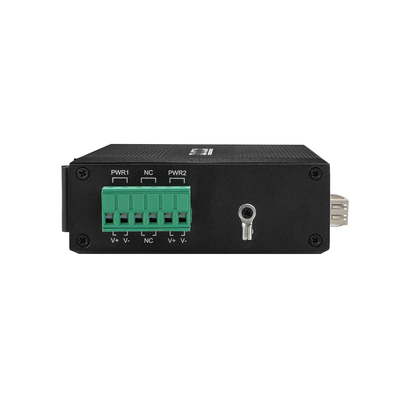

3 Port 10/100mbps Fast Ethernet Unmanaged POE Fiber Media Converter For Outdoor

3 port 10/100mbps fast ethernet

unmanaged POE fiber media converter for outdoor

Key Features of POE Fiber Media Converter:

• Product Name: 10/100Mbps Industrial POE Fiber Switch (1F+2TP)
• Model No.: IM-FP122FE
• Switching featuresTransmission mode: storage and forwardSystem bandwidth:40Gbps (non-traffic jam)
• Network media10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)100BASE-TX: CAT5 or above shielded twisted pair(≤100m)SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km
• LEDs: Power, network, fiber
• Power supply: 48V (max 52V)
• Working temperature:-40°～ 75°C
• Industry StandardsEMI: FCC Part 15 Subpart B Class A,EN 55022 Class AEMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8Traffic Control:NEMA-TS2Vibration:IEC 60068-2-6Freefall:IEC 60068-2-32Shock:IEC 60068-2-27Rail Traffic:EN 50121-4
• Safety: CE Mark ,commercial CE/LVD EN60950
• Mechanical information Shell:Corrugated metal shell
• Safety class:IP40Dimension: 113.8 x 93 x 34.9mm

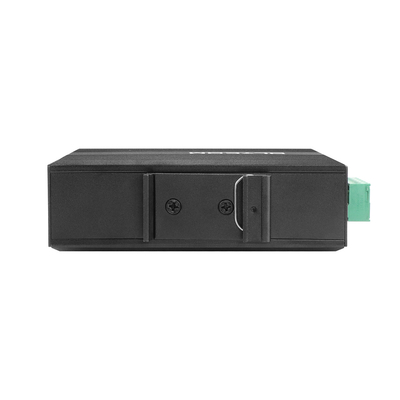

• Mounting method:Din-rail mounting
• Warranty: Replacement within 1 year; 3 years repairing

Introduction of mini poe switch:

IM-FP122FE series is the 10/100 Mbps industrial POE fiber switch, comply with IEEE802.3af/at, power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature-40 ℃ to + 85 ℃, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.


Application of unmanaged switch


Packing box of Din rail unmanaged switch:


• Put the product in an ESD Bag, then placed in PE foams with outer carton packaging.
• The standard packing usually contains a main device, a warranty card and a user manual.
• Packing box dimension for 1pc: 23*16.5*5.8cm
• 40pcs in a packing box of 67*33*47cm dimension.



FAQ:

Q1. Can I have a sample order for Industrial poe switch?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.

Q3. Do you have any MOQ limit for optical fiber switch order?
A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to deal with the faulty?
A: Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
