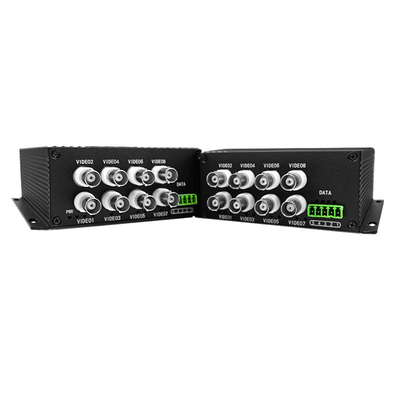

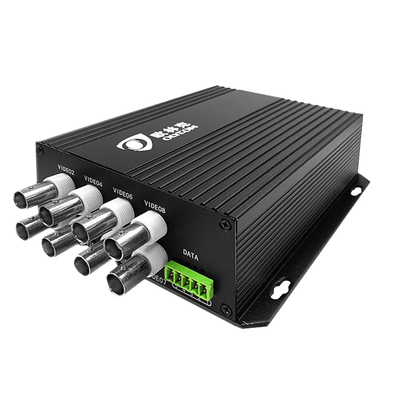

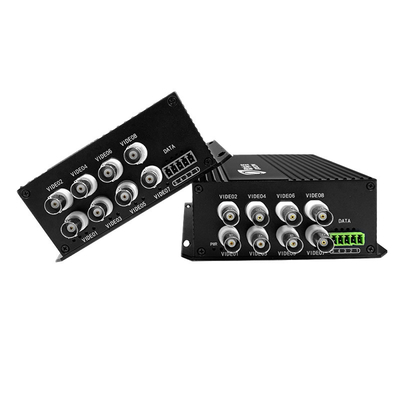

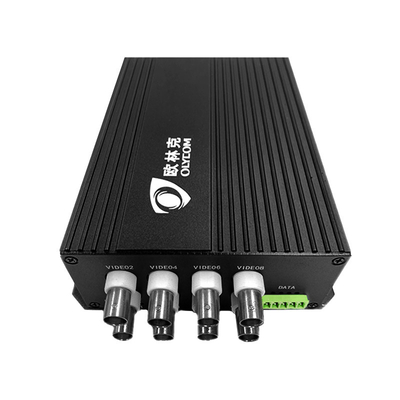

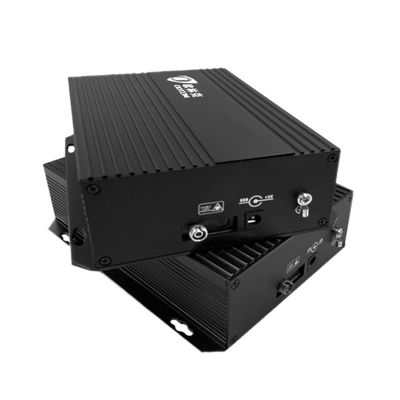

Multifunctional 8 CH HD-AHD/CVI/TVI Fiber To Video Optical Converter RS485 Data 20km SM MM

1
MOQ
Negotiable
Price
Multifunctional 8 CH HD-AHD/CVI/TVI Fiber To Video Optical Converter RS485 Data 20km SM MM
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: 8CH 1D Fiber Optic Video Converter
Wavelength: 1310nm/1550nm
Transmission Distance: 20KM
Power Supply: DC5V1A
Brand: Olycom/customized/no Brand
Operating Temperature: 8 Port
Highlight:

Fiber to Video Optical Converter 20km

,

8 CH Fiber to Video Optical Converter

Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: OLYCOM
Certification: CE, FCC, RoHS
Model Number: OM610-8V↑1D↓WT/R
Payment & Shipping Terms
Packaging Details: One unit device and one user manual are inside one box , sealed and well protected.
Delivery Time: 3-5days
Payment Terms: Western Union, T/T, Paypal
Supply Ability: 600 per month
Product Description



Multifunctional 8 CH HD-AHD/CVI/TVI

Fiber to Video Optical Converter RS485 data 20km





Key Features of video fiber converter

  • Robust metal casing
  • Lightning-proof solution
  • Low optical link loss – max 30dB
  • Without EMI, RFI and ground loop
  • Bi-di transmission on 1 fiber with WDM
  • Hot plug-and-play with switch power supply
  • Available in standalone and 3U rack systems

Specification of 8ch Fiber to Video Transmitter



Optical
Wavelength 1310nm/1550nm
Output Power -8~3dBm
Optic fiber Single mode (9/125um) 20Km, multimode (50/125um) 1Km, ( 62.5/125um) 500m
Receiving sensitivity -30dBm
Interface FC standard, ST/SC optional
Video
Channel Quantity 8ch, from camera to control center
Compatible Systems NTSC/PAL/SECAM
Impedance/Voltage BNC 75Ω (unbalanced) / 2.0Vp-p
Differential Gain < ±1%
Differential Phase < ±1
S/N ratio >60dB(weighting)(8 bit)
Interface BNC
Data
Channel Quantity 1ch, from control center to camera
Data protocol RS485
Bandwidth 0~300kbps
Error rate 10-9
Interface Phoenix terminal
Electrical. Environmental. Mechanical
Operating voltage DC 5V1A
Operating temperature -20℃~+70℃
Storage temperature -45℃~+85℃
Humidity 0~95%non-condensing
Dimension-standalone 179mm ×130.5mm ×50 mm
Weight 0.66kg/piece (Net Weight), 1.00 kg/piece (Gross Weight)



Multifunctional 8 CH HD-AHD/CVI/TVI Fiber To Video Optical Converter RS485 Data 20km SM MM 0



Application



  • City traffic monitoring system
  • Public security, safe city monitoring system
  • Highway security protection, charging system
  • Building, campus monitoring net
  • Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)
  • Military monitoring (storehouse, frontier defense, guard, nation defense, etc)
  • electric power, oilfield, television program transmission system
  • Gymnasium (live video, audio transmission)Multifunctional 8 CH HD-AHD/CVI/TVI Fiber To Video Optical Converter RS485 Data 20km SM MM 1

FAQ



1 Q: What is your lead time?

   A:It usually takes 3~5 working days to produce and then will send goods.

2 Q: How will you send my goods?

   A: We will send the goods by DHL, TNT, UPS or FEDEX, please check the delivery details by the tracking number.

3 Q: Please tell me something about your MOQ

   A: Our MOQ is 1 Pcs/Pair based on USD or EUR terms.

4 Q: Something about pricing.

   A: Good quality components for our products. Low prices for big and repeat orders.

5 Q: What is warranty time?

   A: 1 year for commercial products and 3 years for industrial products. Technical support will be offered free.
