Gigabit Mini Industrial Media Converter 2 Port 100/1000M Fiber Gigabit Network Din Rail

2 Port Industrial Ethernet Media Converter Gigabit

Introduction of Industrial Media Converter

IM-MC110GE series is the 10/100/1000 Mbps industrial fiber switch.

• operating temperature -40 ℃ to + 75 ℃
• support wide voltage dual power input
• meet IP40 protection degree and EMC industrial grade requirements

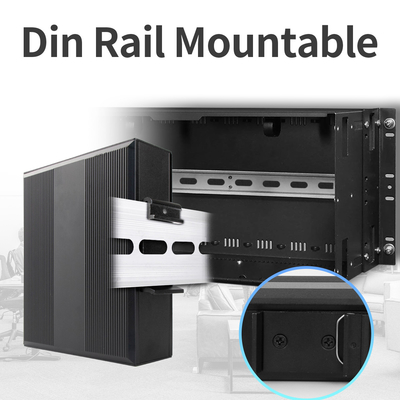

• DIN rail installation
• pass through dangerous environmental certification and comply with FCC and CE standards

The reliable industrial grade design could ensure continuous and stable operation of the automation system.

Key Features of Industrial Media Converter

• 6 KV Ethernet surge protection, adapt to a harsh outdoor environment
• Support Auto MDI/MDIX
• Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
• IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
• A store-and-forward switching mechanism
• Operating environment temperature: -40 ° ~75 ° c

Specification of Industrial Media Converter

Packaging & Delivery of Industrial Media Converter

Selling Units: Single item

Single packaging size: 22*16*6cm

Single gross weight: 0.45kg

Package type: One Media converter and one user manual are inside one box

Lead Time: 3-5 days and will change according to different quantities

Q&A of Industrial Media Converter

1. Can I use my own PVC film? (Yes)
2. Can I brush my own logo? (Yes)
3. What is in the packing box (equipment+foam cotton+manual+warranty card)
4. Does the price include power supply and modules? (Excluding)
5. Can the optical port be plugged into a 100Mbps module (adaptive)
6. Can I write my own content on the tag (usually posted on the side panel)
7. Can it be used together with modules/switches from other brands? (Yes)

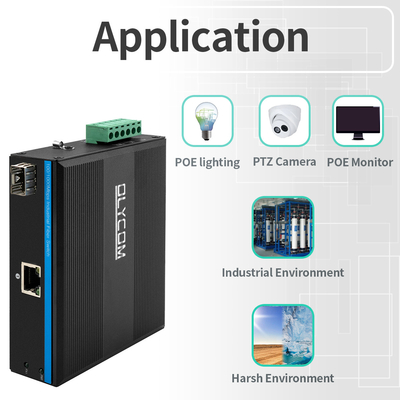

Photo of Industrial Media Converter
