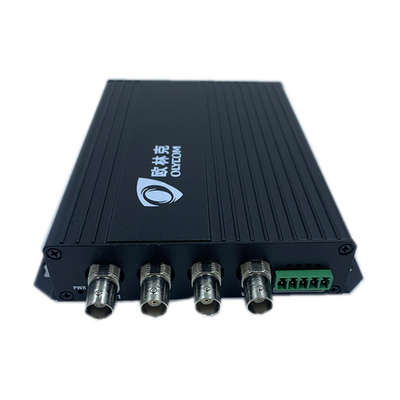

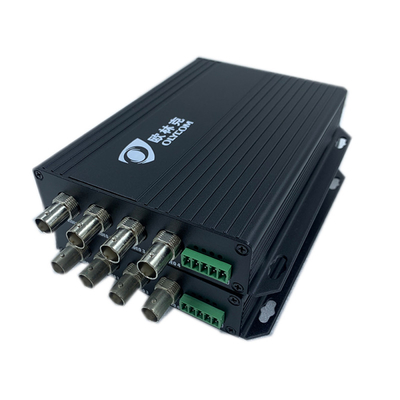

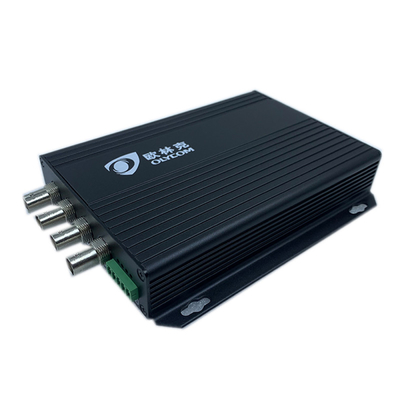

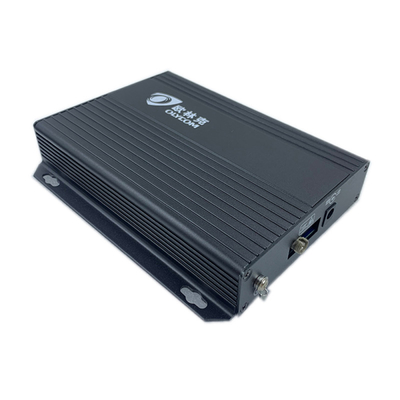

4 Channel optical fiber video converter Single Mode Simplex 20km Fc with reverse data
Introduction of 4ch Video Converter
OM610-4V↑1D↓WT/R optical video transmitter and receiver transmit 4ch video and 1ch RS485 data signals on optical fiber. On 9/125um Single mode fiber its working distance is 20Km to 80KM while on multimode fiber it’s 1Km.
Specification
| Optical | |
| Wavelength | 1310nm/1550nm |
| Output Power | -8~3dBm |
| Optic fiber | Single mode (9/125um) 20Km, multimode (50/125um) 1Km, ( 62.5/125um) 500m |
| Receiving sensitivity | -30dBm |
| Interface | FC standard, ST/SC optional |
| Video | |
| Channel Quantity | 4ch, from camera to control center |
| Compatible Systems | NTSC/PAL/SECAM |
| Impedance/Voltage | BNC 75Ω (unbalanced) / 2.0Vp-p |
| Differential Gain | < ±1% |
| Differential Phase | < ±1 |
| S/N ratio | >60dB(weighting)(8 bit) |
| Interface | BNC |
| Data | |
| Channel Quantity | 1ch, from control center to camera |
| Data protocol | RS485 |
| Bandwidth | 0~300kbps |
| Error rate | 10-9 |
| Interface | Phoenix terminal |
| Electrical. Environmental. Mechanical | |
| Operating voltage | DC 5V1A |
| Operating temperature | -20℃～+70℃ |
| Storage temperature | -45℃～+85℃ |
| Humidity | 0~95%non-condensing |
| Dimension-standalone | 179mm ×128.5mm ×28.5mm |
| Weight | 0.40kg/piece (Net Weight), 1.26 kg/pair (Gross Weight) |
Application
Advantage:
| 1. Manufacturing: We are a powerful factory and has been in this industry about 10 years |
| 2. Professional R＆D center: We have a professional and independent R＆D team. Most our engineers have more than 5 years experience. |
| 3. Fast dispatch: Most of the products are in stock. Below 10pcs can arrange delivery with 3 days. |
| 4. Small order accepted: Low MOQ accepted. 1pcs are availabel. |
| 5. Insurance: all products 3 years warranty. |
