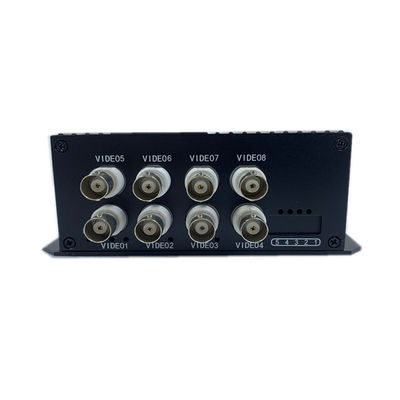

8ch Port 1080p HD Video Digital Optical Converter with 20km Transmission for Industrial Monitoring

1 pc
MOQ
Negotiable
Price
8ch Port 1080p HD Video Digital Optical Converter with 20km Transmission for Industrial Monitoring
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: 8ch Optical Video Converter
Interface: FC Standard, ST/SC Optional
Transmission Distance: 2KM-120KM
Certificaiton: CE FCC ROHS Compliance
Dimension-standalone: 179mm×130.5mm×50mm
Wavelength: 1310nm/1550nm
Highlight:

Bnc Extender HD Video Converter

,

Fiber Optical HD Video Converter
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Olycom
Certification: CE RoHS FCC ISO9001
Model Number: OM610-8V↑WT/R
Payment & Shipping Terms
Packaging Details: 1pc in a box
Delivery Time: 3~5 working days
Payment Terms: T/T,PayPal
Supply Ability: 5000pcs/month
Product Description
8-Channel 1080p AHD CVI TVI 20km BNC Extender Fiber Optical HD Video Converter
The OM610-8V↑WT/R optical video transmitter and receiver system transmits 8 channels of video signals over optical fiber. This advanced solution supports transmission distances up to 20km on single-mode fiber and 1km on multimode fiber.
Key Features
  • Robust metal casing for industrial durability
  • Advanced lightning-proof protection system
  • Low optical link loss - maximum 30dB
  • EMI, RFI, and ground loop interference elimination
  • Bi-directional transmission on single fiber using WDM technology
  • Hot plug-and-play capability with switch power supply
  • Available in standalone and 3U rack mount configurations
Technical Specifications
Optical Specifications
Wavelength 1310nm/1550nm
Output Power -8~3dBm
Optic Fiber Compatibility Single mode (9/125um) 20Km, multimode (50/125um) 1Km, (62.5/125um) 500m
Receiving Sensitivity -30dBm
Interface FC standard, ST/SC optional
Video Specifications
Channel Quantity 8 channels (camera to control center)
Compatible Systems NTSC/PAL/SECAM
Impedance/Voltage BNC 75Ω (unbalanced) / 2.0Vp-p
Differential Gain < ±1%
Differential Phase < ±1
S/N Ratio >60dB (weighting, 8 bit)
Interface BNC
Electrical, Environmental & Mechanical
Operating Voltage DC 5V1A
Operating Temperature -20℃ to +70℃
Storage Temperature -45℃ to +85℃
Humidity 0~95% non-condensing
Dimension (Standalone) 179mm × 130.5mm × 50mm
Weight 0.66kg/piece (Net), 1.00kg/piece (Gross)
Applications
  • Expressway security protection and toll station systems
  • City traffic monitoring systems
  • Building and campus monitoring systems
  • Industrial monitoring (airports, chemical plants, railways)
  • Military monitoring (frontier defense, national defense)
  • Electronic power oil fields, TV station program broadcasting
  • Stadium and gymnasium live video transmission
8ch Port 1080p HD Video Digital Optical Converter with 20km Transmission for Industrial Monitoring 0
Packaging
8ch Port 1080p HD Video Digital Optical Converter with 20km Transmission for Industrial Monitoring 1 8ch Port 1080p HD Video Digital Optical Converter with 20km Transmission for Industrial Monitoring 2
Frequently Asked Questions
Q: Can I place a sample order for the video fiber converter?
A: Yes, we welcome sample orders for quality testing and verification. Mixed samples are acceptable.
Q: What is the lead time for orders?
A: Sample preparation takes 3-5 days, while mass production requires 8-10 working days.
Q: Is there a minimum order quantity for optical fiber switches?
A: We offer low MOQ requirements, with single unit samples available for evaluation.
Q: How do you ship products and what is the delivery time?
A: We ship via DHL, UPS, FedEx, or TNT with 3-5 day delivery. Air and sea freight options are also available.
Q: What is your quality control and defective rate?
A: Our products undergo strict quality control with a defective rate of less than 0.2%.
