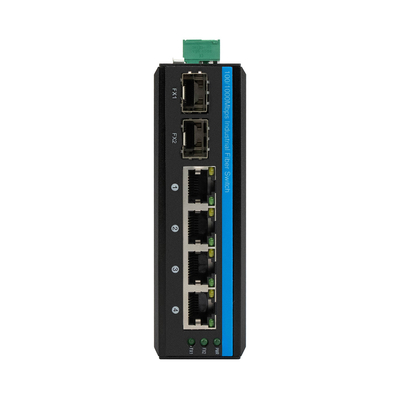

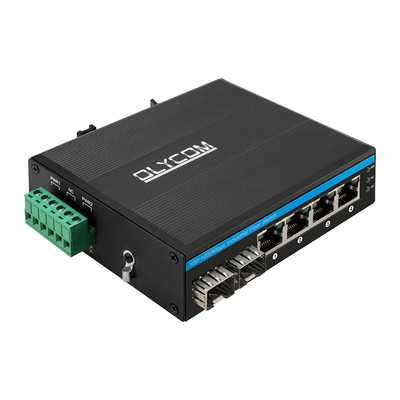

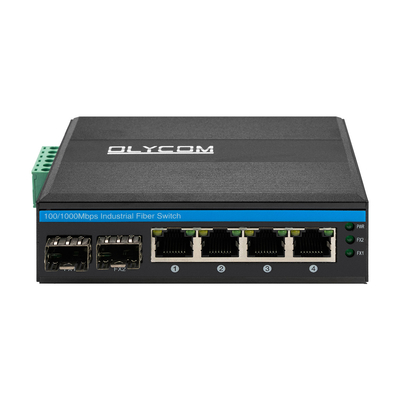

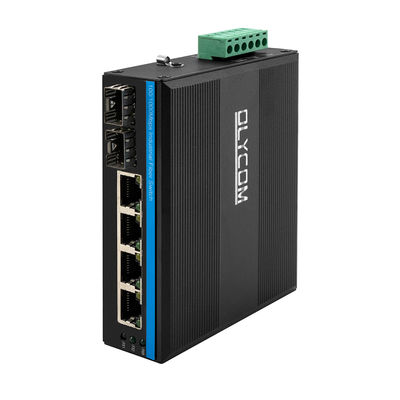

6 port gigabit unmanaged POE Switch with 2 sfp fiber switch DC48V input
Key Features of Industrial poe fiber switch
POE output power 15.4W/30W/60W for 1 ~ 4 RJ45 ports 4 x 10/100/1000Mbps Auto-sensing RJ45 ports 2 x 1000Mbps SFP fiber port 4 KV Ethernet surge protection, adapt to a harsh outdoor environment Support Auto MDI/MDIX Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant A store-and-forward switching mechanism Operating environment temperature:-40 ° ~85 ° c
Specification of Industrial Full Gigabit Switch
| Product Name | 10/100/1000Mbps Industrial POE Fiber Switch (2F+4TP) |
| Model No. | IM-FP244GE |
| Port |
2 x 1000Mpbs SFP port SM:1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM:1310nm, 2Km; 4x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Standard | IEEE 802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x , IEEE 802.1Q VLAN Tagging, IEEE 802.1p CoS, IEEE 802.1X, IEEE 802.3ad, ITU-T G.8032 ERPS, IEEE802.3af, IEEE802.3at |
| Protocol | IGMPv1/v2,GVRP,SNMPv1/v2c/v3,DHCP Client TFTP,SMTP,RMON,HTTP,HTTPS,Telnet,Syslog,GVRP SSH,SNMP Inform,LLDP,SNTP Server/Client,PVLAN |
| MIB | MIB-II,Ethernet-Like MIB,P-BRIDGE MIB,Q-BRIDGE MIB Bridge MIB,RSTP MIB,RMON MIB Group 1,2,3,9 |
| Switching Features |
Priority queue: 4 Number of VLANs: 256 VLAN ID: 1～4094 Number of multicast groups: 256 MAC table: 4K Packet buffer: 1Mbit Packet forwarding rate: 14.88Mpps Exchange delay: <5μs |
| Alarm Output | One relay alarm output: support IP/MAC conflict, power supply, port and ring alarm |
| Power supply |

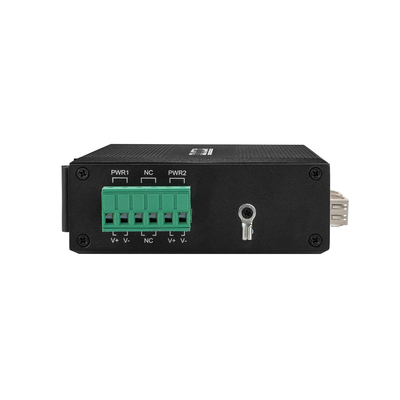

Input voltage: DC 48-52V POE power supply input voltage: 48V (max 52V), Single PoE power supply output power: 15.4W/30W/60W (port 1~4) Support reverse connection, overload protection and redundant protection |
| Environment |
Working Temp:-40°～ 85°C ; Storage Temp:-40°～ 85°C; Working humidity:5%～95%, non-condensing |
| Industry Standards |
EMI:FCC CFR47 Part 15,EN55022/CISPR22,Class A EMS:IEC61000-4-2(ESD) ±8kV(contact),± 15kV(air) IEC61000-4-3(RS) 10V/m(80MHz～2GHz) IEC61000-4-6(CS) 3V(10kHz～150kHz);10V(150kHz～80MHz) IEC61000-4-16 30V(cont.),300V(1s) IEC60068-2-6, IEC60068-2-27, IEC60068-2-32 IEC61000-6-2 EN50155,EN50121-4 NEMA TS-2 |
| Mechanical information |

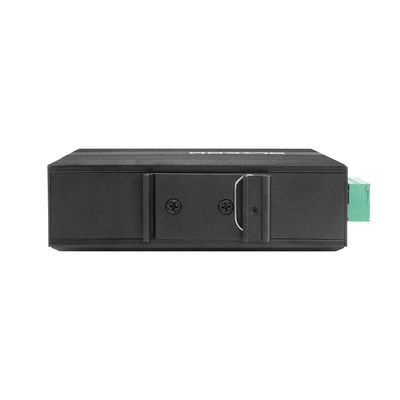

Shell:Corrugated metal shell; Safety class:IP40 Dimension:113.8 x 93 x 34.9mm Mounting method:Din-rail mounting |
| Warranty | Replacement within 1year; 3 years repairing |
Application
Production Steps:
| Welding: Weld the necessary components |
| Cleaning: To avoid any possible dysfunction due to dust or scraps on the PCB boards. |
| Assembling: Builds up components of a product, like panels, screws, PCB boards. |
| Testing: To make sure the product is basically working fine after assembling |
| Aging: To check if the product can work smoothly for long time without any minors such as LED indicators, voltage. This will usually last for 24 to 48 hours. |
| Testing: To test if the product can process data or video signals correctly. Any data loss? Transmission rate correct? Any data packet failure? Such questions would be verified in this procedure. |
| QC testing: This is the third and also last check of product quality. If it goes good, our packing staff will pack it up according to customer requirements and attach to the packing box a product label. |
| When all above is done, the product will go to market. |
