BNC Converter WDM Analog 16ch Video

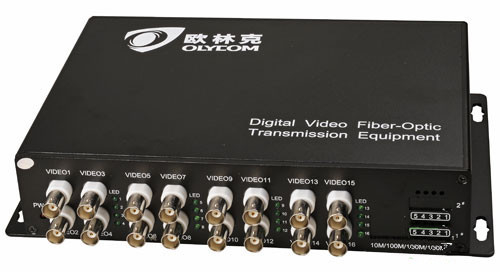

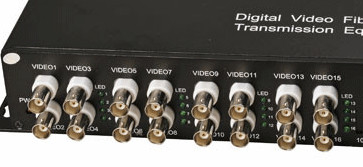

Optical Video Transmitter and Receiver for Digital CCTV Camera
Introduction
Specification of Optical Video Transmitter and Receiver
| Optical | |
| Wavelength | 1310nm/1550nm |
| Output Power | -8~3dBm |
| Optic fiber | Single mode (9/125um) 20Km, multimode (50/125um) 1Km, ( 62.5/125um) 500m |
| Receiving sensitivity | -30dBm |
| Interface | FC standard, ST/SC optional |
| Video | |
| Channel Quantity | 16ch, from camera to control center |
| Compatible Systems | NTSC/PAL/SECAM |
| Impedance/Voltage | BNC 75Ω (unbalanced) / 2.0Vp-p |
| Differential Gain | < ±1% |
| Differential Phase | < ±1 |
| S/N ratio | >60dB(weighting)(8 bit) |
| Interface | BNC |
| Electrical. Environmental. Mechanical | |
| Operating voltage |
AC220V |
| Operating temperature | -20℃～+70℃ |
| Storage temperature | -45℃～+85℃ |
| Humidity | 0~95%non-condensing |
| Dimension-standalone |
485(L)*237(W)*45(H) mm, 19”1U |
| Weight |
2.24kg/piece (Net Weight), 5.58kg/pair(Gross Weight) |
Application
Police and safe city monitoring system Express way security protection and toll station system City traffic monitoring system Building and campus monitoring system Industrial monitoring (airport, chemical plant, railway, etc.) Military monitoring (frontier defense, national defense) Electronic power oil field, TV station program broadcasting Gymnasium (live video and audio transmission)
Advantage:
| OM610-16V↑WT/R-FC20 | 16ch video Tx, single-mode, single fiber, 20Km, FC connector |
| OM610-16V↑MT/R-FC05 | 16ch video Tx, multi-mode, single fiber, 1Km, FC connector |
*Above listed are most frequently ordered items. Please contact us for other configurations.
| 1. National High-tech enterprise certification; |
| 2. Fiber Optical Innovative &production team Over 18 years; |
| 3. Fiber optical active and passive components production Workshop; |
| 4. Strict quality management system; |
| 5. Professional One stop supply & service; |
| 6. OEM&ODM available; |
| 7. Reliable and Timely customer services; |
