Home /Products/Industrial Managed POE Switch/10port Gigabit 10/100/1000mbps L2 Managed POE Switch With 2 Sfp Din-rail DC48V input

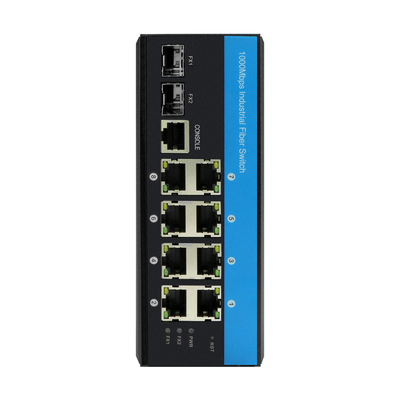

10port Gigabit 10/100/1000mbps L2 Managed POE Switch With 2 Sfp Din-rail DC48V input

1 pc
MOQ
Negotiable
Price
10port Gigabit 10/100/1000mbps L2 Managed POE Switch With 2 Sfp Din-rail DC48V input
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Port Type: MM,up To 2km; SM, Up To 120km
MTBF: ≥100000 Hours
Surge Protection: ±4KV
Communication Mode: Full-Duplex & Half-Duplex
Housing: IP40 Protection Grade, DIN Rail Type
Products Status: Stock
Highlight:

L2 Managed POE Switch

,

Managed POE Switch With 2 Sfp
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Olycom
Certification: CE RoHS FCC ISO9001
Model Number: IM-FP288GW
Payment & Shipping Terms
Packaging Details: 1pc in a box
Delivery Time: 3~5 working days
Payment Terms: T/T, PayPal
Supply Ability: 5000pcs/month
Product Description

10port 10/100/1000mbps L2 Managed POE Switch

with 2 sfp fiber switch for outdoor



Key Features of Industrial poe fiber switch



  • Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
  • IEEE 802.3af/at power on to 1 ~ 8 RJ45 ports
  • 8 x 10/100/1000Mbps Auto-sensing RJ45 ports
  • 2 x 1000Mbps SFP fiber port

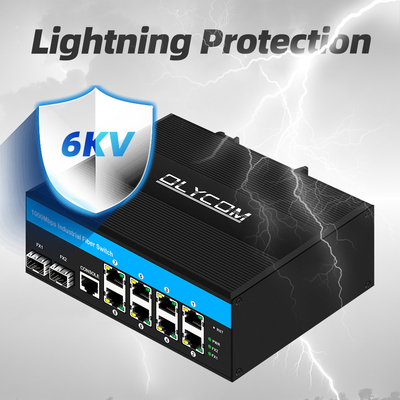

  • 6 KV Ethernet surge protection, adapt to a harsh outdoor environment
  • Support Auto MDI/MDIX
  • Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
  • IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
  • A store-and-forward switching mechanism

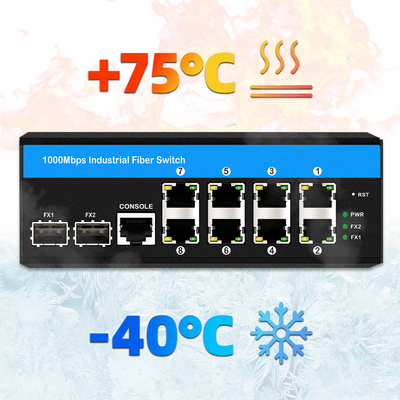

  • Operating environment temperature:-40 ° ~75 ° c



Specification of Industrial Full Gigabit Switch



Product Name 10/100/1000Mbps Managed Industrial POE Fiber Switch (2F+8TP)
Model No. IM-FP288GW
Port

2 x 1000Mpbs SFP port

SM:1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM:1310nm, 2Km; 8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Standard IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az
VLAND ID 4096
Jumbo Frame 9.6KB
MAC Address Table Size 8K
Switching features

Transmission mode:storage and forward

System bandwidth:58Gbps (non-traffic jam)
Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km
LEDs Power, network, fiber
Power supply

POE power supply input voltage: 48V (max 52V),

Single PoE power supply output power: 15.4W (port 1~8)

(802.3at standards required special instructions)
Environment Working Temp:-40°～ 75°C ; Storage Temp:-40°～ 85°C;Working humidity:10%～90%, non-condensing; Storage humidity:10%～95%, non-condensing
Industry Standards

EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A

EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8; Traffic Control:NEMA-TS2; Vibration:IEC 60068-2-6; Freefall:IEC 60068-2-32; Shock:IEC 60068-2-27; Rail Traffic:EN 50121-4
Safety CE Mark ,commercial ; CE/LVD EN60950

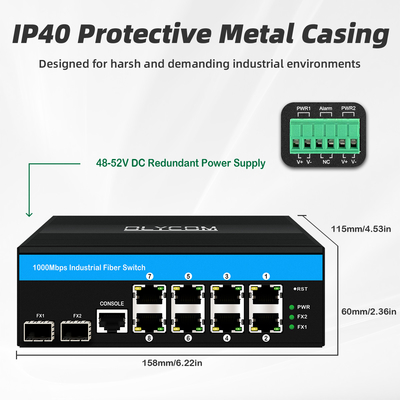

Mechanical information

Shell:Corrugated metal shell; Safety class:IP40;

Dimension:158 x 114.8 x 60mm;

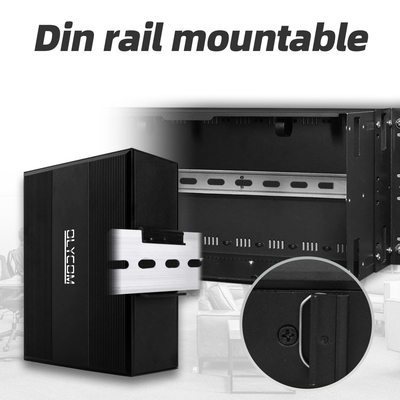

Mounting method:Din-rail mounting
Warranty Replacement within 1year; 3 years repairing



Application



10port Gigabit 10/100/1000mbps L2 Managed POE Switch With 2 Sfp Din-rail DC48V input 0

10port Gigabit 10/100/1000mbps L2 Managed POE Switch With 2 Sfp Din-rail DC48V input 1

10port Gigabit 10/100/1000mbps L2 Managed POE Switch With 2 Sfp Din-rail DC48V input 2





Packing box of Din rail unmanaged switch:



Put the product in an ESD Bag, then placed in PE foams with outer carton packaging.

The standard packing usually contains a main device, a warranty card and a user manual.

Packing box dimension for 1pc: 15.8*114.8*60cm

20pcs in a packing box of 55.5*40*41cm dimension.

10port Gigabit 10/100/1000mbps L2 Managed POE Switch With 2 Sfp Din-rail DC48V input 3
