10 port Gigabit POE Switch L2 managed Vitesse chipset Rugged Ethernet Switch

10 port Gigabit POE Switch L2 managed Vitesse chipset

Rugged Ethernet Switch

Key Features of Industrial poe fiber switch

• Delivers stable PoE power and data transmission for IP cameras through wireless AP backhaul networks, reducing additional power cabling in outdoor surveillance deployments.
• Supports IEEE 802.3af/at PoE standards on 8 Gigabit RJ45 ports, enabling direct connection and centralized power supply for IP cameras, wireless bridges, and other PoE devices.

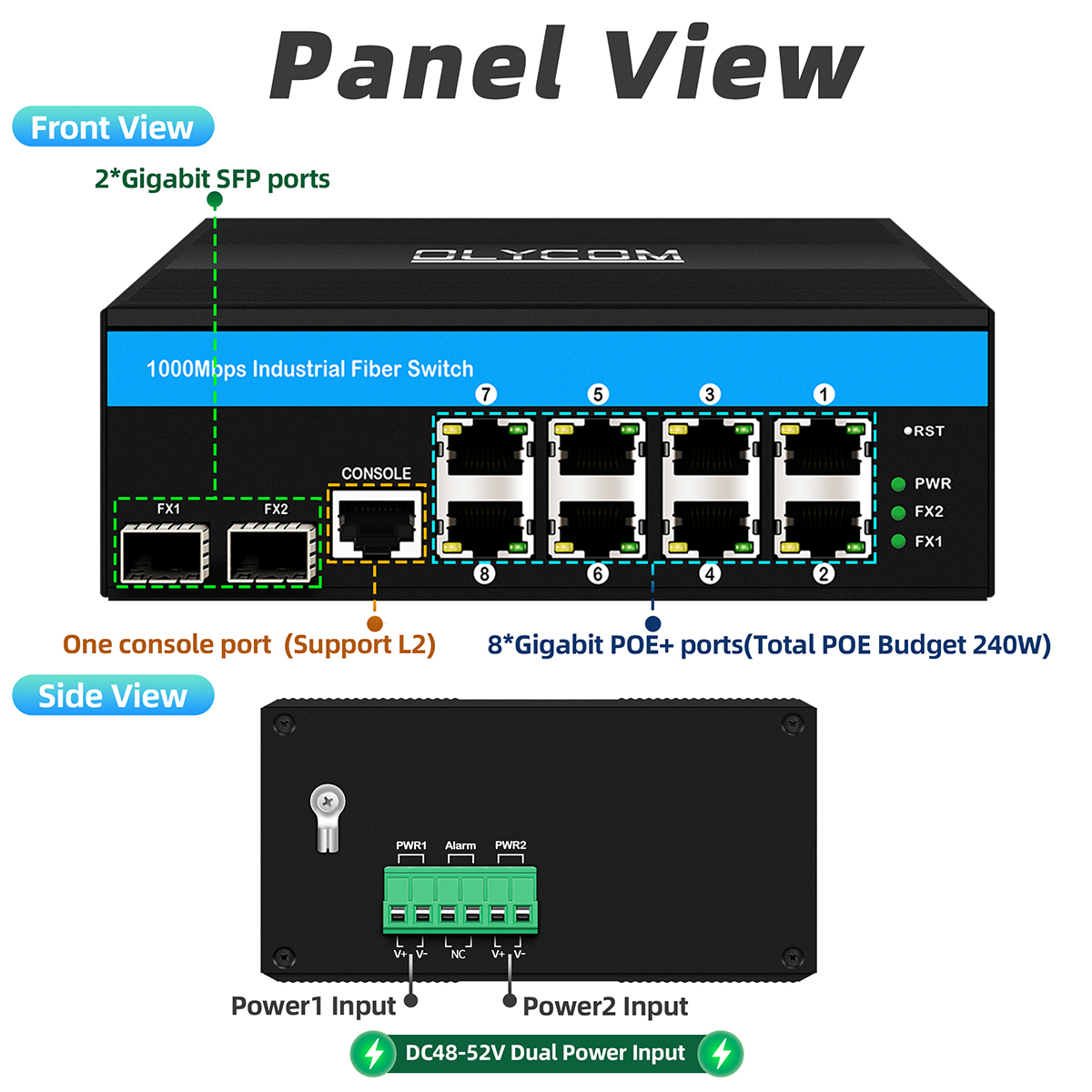

• Equipped with 8 × Gigabit Ethernet ports and 2 × Gigabit SFP fiber uplink ports, helping extend long-distance network transmission for large-scale outdoor monitoring projects.
• Built-in 6KV surge protection helps protect connected devices from lightning and power surges, improving network stability in harsh outdoor environments.

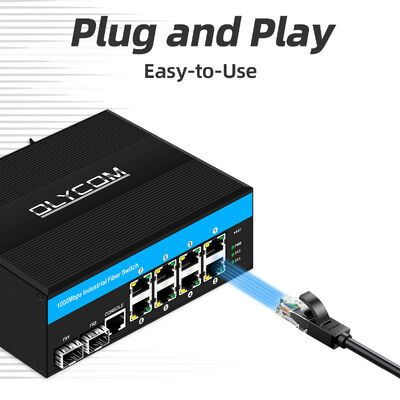

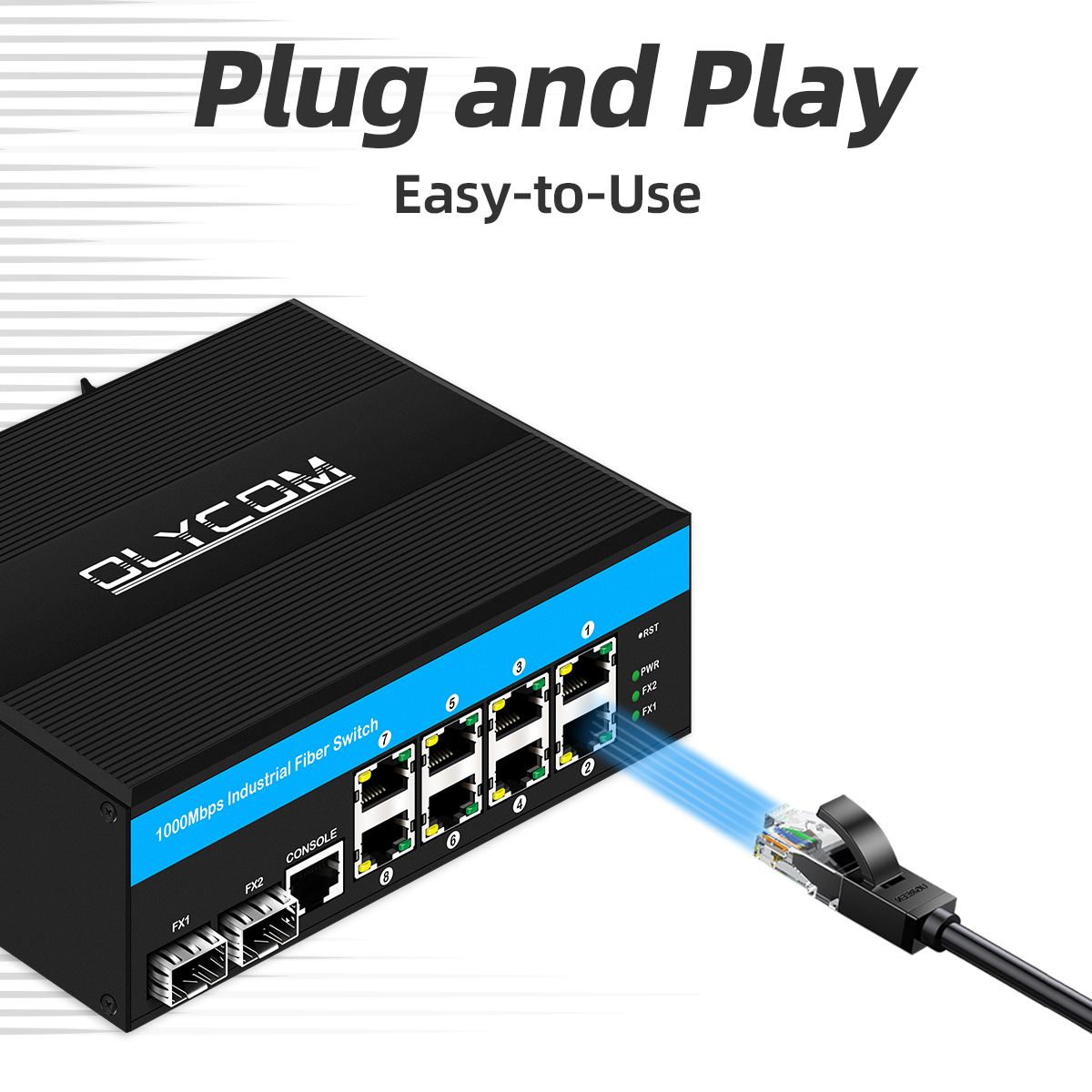

• Auto MDI/MDIX function simplifies installation by eliminating the need for crossover cables, reducing deployment complexity on site.
• Supports intelligent flow control to ensure stable data transmission and reduce packet loss during high-bandwidth video streaming applications.
• Store-and-forward switching mechanism improves data integrity and transmission reliability for continuous HD video surveillance.

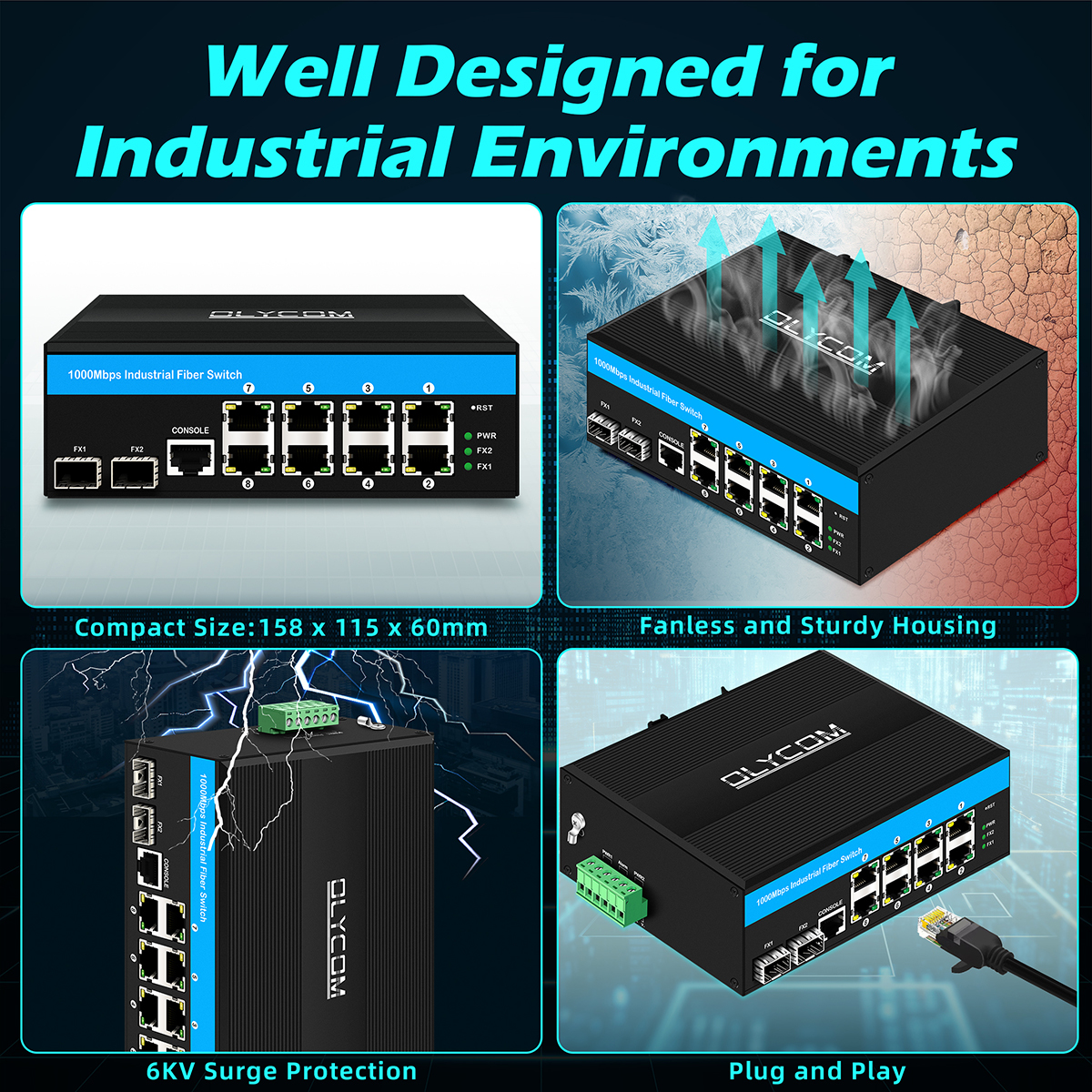

• Industrial-grade design with -40°C to 75°C operating temperature ensures reliable performance in extreme weather conditions such as highways, mining sites, solar projects, forests, and remote outdoor locations.

Specification of Rugged Ethernet Switch

Application

• Industrial Park & Smart Manufacturing Aggregation




  Deployed as a gigabit fiber aggregation node in factories and smart workshops. It connects industrial cameras, APs, PLCs via 8×POE gigabit ports, with STP/RSTP/MSTP/EPR ring redundancy for long‑haul, highly reliable industrial communications.


• Urban Security & Surveillance Front‑End Aggregation




  Installed on poles, outdoor cabinets and enclosures. Dual SFP uplinks transmit video, while 8×POE ports power IP cameras directly. Wide temperature (-40℃~75℃), 6KV surge protection and IP40 rating suit harsh outdoor environments.


• Smart Transportation (Junctions / Tunnels / Toll Gates)




  Used in tunnels, highways and intersections. Fiber backhaul + POE for LPR cameras, radars, displays and industrial sensors. Supports VLAN, QoS, storm suppression and port isolation for video priority and security.


• Energy, Water & Metallurgy Monitoring




  Deployed in hydropower, substations, coal and metallurgical plants. Fiber offers noise immunity and long distance; POE simplifies cabling. IGMP snooping, port mirroring, LLDP and ring protection support unmanned sites and O&M.


• Railway & Transit Surveillance




  Deployed along railways, stations and depots. DIN‑rail mount, wide temperature, anti‑vibration and industrial EMI/EMS compliance. Dual SFP redundancy ensures stable transmission for video, environmental monitoring and device data.

FAQ

1. Is this switch industrial grade? Can it be used outdoors?

• Yes, industrial-grade design with IP40 protection, -40℃~75℃ wide temperature, DIN-rail mounting. It has 6KV Ethernet surge protection and industrial EMI/EMS compliance, suitable for outdoor cabinets/pole boxes.

2. What POE standards are supported? What is the per-port power?

• Supports IEEE 802.3af/at; max 30W per port (total POE power depends on DC48V input, full 8-port 30W output supported as standard). If you need 60W, please let us know.

3. Are fiber ports fixed or SFP slots? What modules are compatible?

• 2 gigabit SFP slots (non-fixed ports); compatible with gigabit single-mode (20/40/80km), multi-mode (2km), and BIDI SFP modules, mainstream brands supported.

4. Does it support ring redundancy? What is the recovery time?

• Supports STP/RSTP/MSTP + ITU-T G.8032 EPR industrial ring; ring recovery time ＜50ms, ensuring uninterrupted industrial video/data transmission.

5. What management methods are available? Is remote O&M supported?

• Supports Web UI, CLI, SNMP v1/v2c/v3, Telnet/SSH; remote firmware upgrade, VLAN/QoS configuration, port mirroring, cable diagnosis via TFTP/HTTP.

6. Are VLAN and QoS supported? Can video/data services be isolated?

• Supports 4096 VLANs, port/MAC/IP/protocol-based VLAN; QoS, port rate limiting, storm suppression, priority queues for video/control/data service isolation.

7. What is the warranty? Is technical support available?

• 3-year original warranty; technical documents, remote debugging guidance, firmware upgrade support for long-term stable industrial operation.
