Name: 4 Port PoE Af/At Gigabit Fiber Switch With 1 SFP/Copper Uplink Commercial Grade 60W
Brand: Olycom
SKU: OM154-PSE-GE
Rating: 4.9 (147 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: 4 Port CCTV POE Switch

PoE Budget: 60W

Speed: 10/100/1000Mbps

Power Input: AC Input, 100V~240V

Dimension: 200*118*44.5mm

Weight: 0.63kg

High Light:

4 Port PoE Gigabit Fiber Switch

Commercial Grade Gigabit Fiber Switch

Basic Infomation

Place of Origin: Shenzhen, China

Brand Name: Olycom

Certification: CE RoHS FCC ISO9001

Model Number: OM154-PSE-GE

Payment & Shipping Terms

Packaging Details: 1 piece in a box, 930g G.W.

Delivery Time: 3~7 working days

Payment Terms: T/T, PayPal

Supply Ability: 2000pcs/month

Gallery

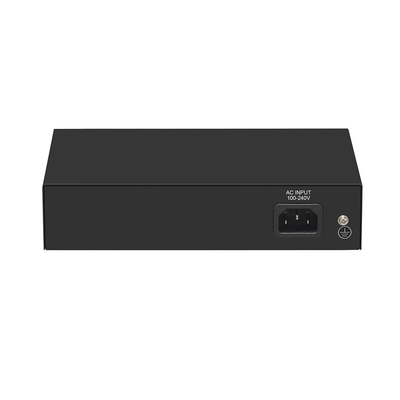

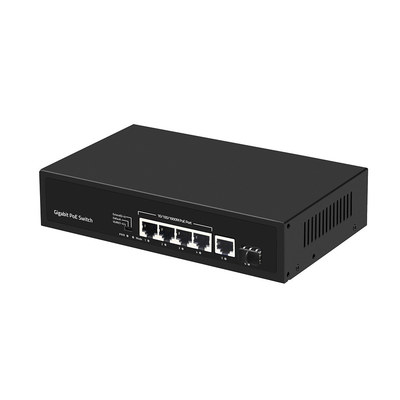

4 Port PoE Af/At Gigabit Fiber Switch With 1 SFP/Copper Uplink Commercial Grade 60W

Product Description

4 port Gigabit CCTV POE Switch

Description of Commercial Fiber Switch

This 6-Port Gigabit PoE switch uses high-quality high-speed network IC and the most stable PoE chip
The PoE port meets the 802.3af or 802.3at standard
This series of PoE switches can provide seamless connection for 10/100/1000M Ethernet, and the PoE power supply port can automatically detect and supply power to powered devices that comply with IEEE802.3af or IEEE802.3at standards, and non-PoE devices intelligently detect no power supply, only data is transferred.

Technical Data of Gigabit Network Switch

I/O Interface
Power	Input: AC 100-240V, 50/60Hz
Ethernet	410/100/1000M PoE Port 11000M RJ45 Port 1* Gigabit SFP Uplink Port
Performance
Switching Capacity	12Gbps
Throughput	8.928Mpps
Packet Buffer	1Mbit
MAC Address	2K
Jumbo Frame	9216bytes
Transfer Mode	Store and forward
MTBF	100000 hour
Standard
Network protocol	IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab(1000Base-TX) IEEE802.3z(1000Base-FX) IEEE802.3x (Flow control)
PoE Protocol	IEEE802.3af (15.4W) IEEE802.3at (30W)
Network Medium	10Base-T : Cat3,4,5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or above UTP(≤100m)
Optical Media	Multimode fiber : 50/125, 62.5/125, 100/140μm Single mode fiber: 8/125, 8.7/125, 9/125, 10/125μm
Protection
Security Certificate	CE,FCC,RoHS
Environment
Working Environment	Working Temperature:-10~50°C Storage Temperature:-40~70°C Working Humidity :10%~90%,non-condensing Storage Temperature:5%~95%,non-condensing
Indication
PWR(power supply)	Lighting:Powered Un-Light:No Power
Mode(DIP)	Lighting:VLAN Un-Light:Default Flashing:Extend
1-6 Gree(Link&Data)	Lighting:Connecting Flashing:Data Transmit Un-Light:Disconnect
DIP Switch	VLAN:Port isolation mode. In this mode, the PoE ports (1-4) of the switch cannot communicate with each other, and can only communicate with the UP-link port. Default : Normal mode, all port can communicate with each other, the transmission distance is within 100 meters Extend:Link extension mode, 3-4 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M
Mechanical
Structure Size	Product Dimension : 20011844.5mm Package Dimension : 24519060mm N.W:0.63kg G.W:0.93kg
Packing Info	Carton MEAS:520320400mm Packing Qty:20units Packing Weight:19.6KG
Power Voltage	Input Voltage :AC 100-240 V Power supply:52V1.25A
power	Product power: maximum 5W POE power: maximum 60W
Package List	Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc,

Features of 60W PoE Switch

4*10/100/1000M POE Ports + 1*1000M RJ45 Port+1*1000M SFP Port
Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3z standards
Ethernet port 10/100/1000M rate auto adaptive
Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard
Support Port Auto-flip (Auto MDI/MDIX)
Panel indicators to monitor working status and help fault analysis
One-key smart switch, supports VLAN, Default, Extend

Application Diagram

4 Port PoE Af/At Gigabit Fiber Switch With 1 SFP/Copper Uplink Commercial Grade 60W 0

Multimedia transmission: Integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications
Real-time monitoring: Simultaneous transmission of real-time control signals, images and data

How we ship

We deliver goods by Express like DHL, UPS or FedEx.
It takes around 2~4 working days to deliver an order by DHL, UPS or FedEx.

What are our advantages?

Fast dispatch, it usually takes 2~4 working days to release out the order by DHL/FedEx/UPS.
Easy to customize: we support printing your logo/model name on the device even if it is an order for several pieces.
In stock: We got our own warehouse, for popular models, we have many in stock for fast delivery.
Real-time demonstration: We will send actual product photos and testing videos to clients, our production lines contribute to good in-sales and after-sales services.

4 Port PoE Af/At Gigabit Fiber Switch With 1 SFP/Copper Uplink Commercial Grade 60W 1
