10/100Mbps 4 Port Outdoor PoE Switch
Specification of Industrial Fiber Switch
| Product Name |
10/100Mbps Industrial PoE Fiber Switch(2F+4TP) |
| Model No. |
IM-FP244FE |
| Port |
2x100M SFP Fiber
SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km
MM: 1310nm, 2Km; 850nm, 500-meter
4x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
1x6-PIN Power Terminal Block
|
| Protocol |
IEEE 802.3(10Base-T)
IEEE 802.3u(100Base-TX)
IEEE 802.3af 15.4W(PoE)
IEEE 802.3at 30W(PoE+)
|
| Switching Features |
Transmission mode: storage and forward
Forwarding delay: <10us
System bandwidth: 1.2Gbps (non-traffic jam)
MAC: 4K
Packet buffer size: 1.75Mb
|
| Network Media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
|
| LEDs |
Power, Fiber, Network, PoE
PWR: Power
Fiber: FX1, FX2
On: transmission is normal
Off: transmission is NOT normal(faulty optical module or disconnected)
Copper orange: PoE indicator
On: PoE is working
Off: PoE is not working or this is Non-PoE device
Copper green: Speed indicator
On: transmission speed is 1000Mbps
Blinking: in transmission
Off: Disconnected or working speed is 10/100Mbps
|
| Power Consumption |
Full loading without PoE≤5W |
| Power Supply |
PoE power supply input voltage: 48V (max 52V)
Single PoE power supply output power: 30W (port 1~4)
Total budget: 120W
PoE output voltage: 48V
Reverse connection: support
|
| PoE Wiring |
1/2 (V+), 3/6 (V-) |
| Environment |
Working temperature: -40°C～75°C
Storage temperature: -40°C～85°C
Working humidity: 10%～90%, non-condensing
Storage humidity: 10%～95%, non-condensing
|
| Industry Standards |
ESD: IEC61000-4-2, ±15KV air, ±6KV contact
EFT: IEC61000-4-4, General ±6KV
Surge: IEC61000-4-5, Differential ±2KV, Common±6KV
|
| Certification |
CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020
EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021
EN 61000-3-3: 2013/A2: 2021/AC:2022
CE-LVD: EN IEC 62368-1: 2020+A11:2020
FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014
|
| Mechanical information |
Shell: Corrugated metal shell, IP40 grade level
Dimension: 114*93*35mm

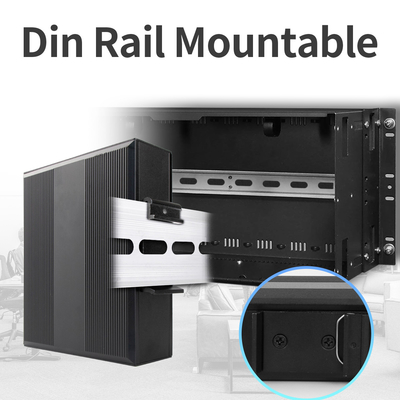

Mounting method: Din-rail/Wall mounting
Weight: 0.35Kg/0.45Kg(Net/Gross)
|
| Warranty |
3 years, lifetime technical support |
- Supply active PoE(DC48V) to PoE IP cameras, WAPs etc. through Cat5 or above copper cable
- 2x100Mbps Auto-sensing SFP fiber ports
- 4x10/100/1000Mbps Auto-sensing RJ45, IEEE 802.3af/at power on to 1~ 4 ports
- Detect the PoE modes(Non-PoE, 802.3af/at compliant) of connected electrical equipment
- 6KV Ethernet surge protection, adapt to a harsh outdoor environment
- Support Auto MDI/MDIX
- Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
- IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
- DIN rail or Wall installation
- Power range up to 100 meters
- Comply with FCC and CE standards
- A store-and-forward switching mechanism
- Operating environment temperature: -40°C～75°C

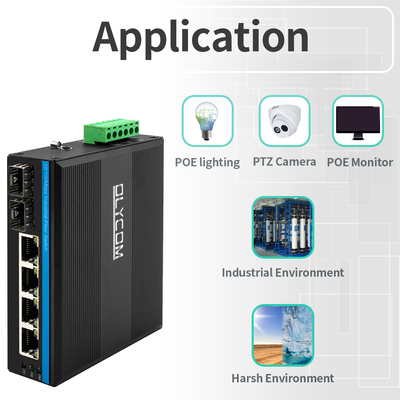

With above features, it is an ideal solution for IP Surveillance, wind, electricity, subway PIS, assembly automation, power SCADA, sewage treatment, metallurgy, intelligent transportation, rail transportation, military and other industries
FAQ
1, What chip is it based?
Olycom: Realtek
2, Can I customize it?
Olycom: Yes
We support OEM services like logo, model name, label, PVC mask and product parts(mounting kit, power terminal block etc.)
3, Is it managed?
Olycom: No

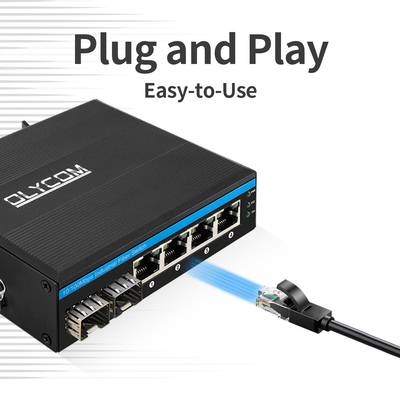

Its just simple plug-and-play, but we have a managed model(IM-FP244GM)
Accessories
| Industrial Optical Module |
| OSPL1E06D-85 |
100BASE-FX(850nm) |
| OSPL1E06D |
100BASE-FX |
| OSPL1E20D |
100BASE-LX |
| OSPL1E40D |
100BASE-EX |
| OSBL1E20D-35 |
100BASE-BX-U(TX 1310 RX1550) |
| OSBL1E20D-53 |
100BASE-BX-D(TX 1550 RX1310) |
| OSPL1G05D |
1000BASE-SX |
| OSPL1G06D |
1000BASE-SX(1310nm) |
| OSPL1G20D |
1000BASE-LX |
| OSPL1G40D |
1000BASE-EX |
| OSBL1G20D-35 |
1000BASE-BX-U(TX 1310 RX1550) |
| OSBL1G20D-53 |
1000BASE-BX-D(TX 1550 RX1310) |
| Industrial DIN Power Supply |
| IM-DAC220/DC48V2.5A |
AC220V to DC48V2.5A, -40℃～70℃ |
| IM-DAC220/DC48V5A |
AC220V to DC48V5A, -40℃～70℃ |
| IM-DAC220/DC48V10A |
AC220V to DC48V10A, -40℃～70℃ |
Packing List
- 1pc switch
- 1pc user manual
Remark
Accessories(optical module, power supply, patchcord, network cable etc.)are NOT included in the packing box
Please prepare it by yourself or purchase a whole set from us
Shipping box information
Product size: 11.4*9.3*3.5cm
Inner box size: 23*16.5*5.8cm
Product weight: 0.35Kg
Packing weight: 0.45Kg
Master box size: 67*33*47cm
Packing quantity: 40Pcs
Packing weight: 20Kg
Warranty & Guarantee
At Shenzhen Olycom Technology Co., Ltd., we pride ourselves on using only new materials that meet the highest standards.
In fact, we never use old or refurbished materials.
We stand behind our products with a 5-year manufacturer's warranty (excluding contrived damage or misusage).
Every product undergoes rigorous functional and aging testing before delivery to ensure top-notch quality.
In the rare event of any compatibility or quality issues, we offer easy returns and repairs or replacements.
Please note that the buyer is responsible for all return and second shipping charges.
With our commitment to quality and customer satisfaction, you can trust Olink for all your technology needs.
