12 Port Gigabit Industrial Fiber Switch 10/100 / 1000mbps Managed Switch DC48V

1 pc
12 Port Gigabit Industrial Fiber Switch 10/100 / 1000mbps Managed Switch DC48V
Features Gallery Product Description Request A Quote
Optical Fiber: 4 LC Port
Certificaiton: CE FCC ROHS Compliance
Surge Protection: ±4KV
Power Input: 48 To 52v DC Redundant Power

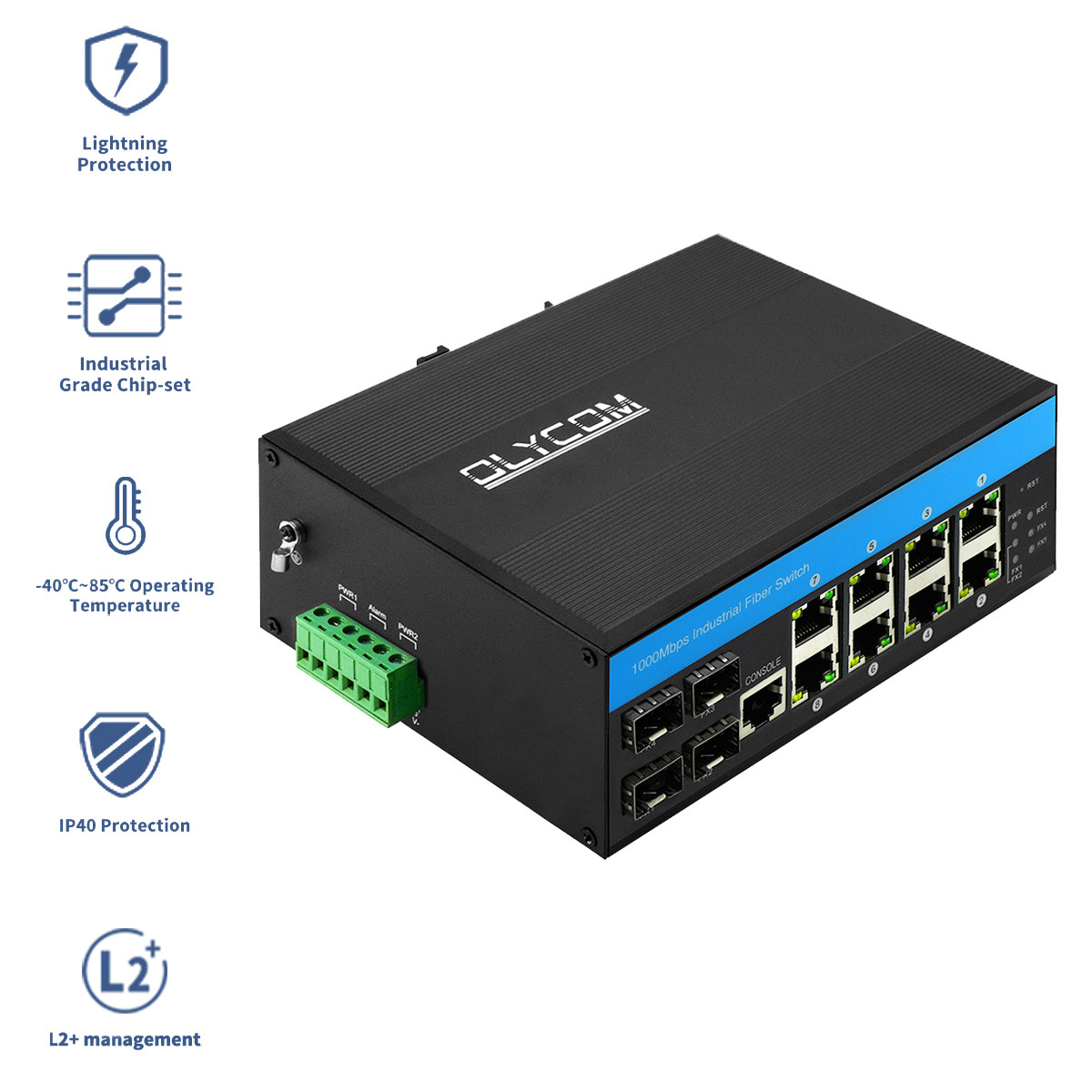

Housing: IP40 Protection Grade, DIN Rail Type
High Light:

12 Port Gigabit Industrial Fiber Switch


Managed Industrial Fiber Switch

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Olycom
Certification: CE RoHS FCC ISO9001
Model Number: IM-FP488GW
Payment & Shipping Terms
Packaging Details: 1pc in a box
Delivery Time: 3~5 working days
Payment Terms: T/T, PayPal
Supply Ability: 5000pcs/month
Product Description

12 Port Gigabit industrial fiber Switch 10/100 / 1000mbps managed switch DC48V


IM-FP488GW series is the 10/100/1000 Mbps managed industrial POE fiber switch, comply with IEEE802.3af/at, power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature-40 ℃ to + 85 ℃, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.

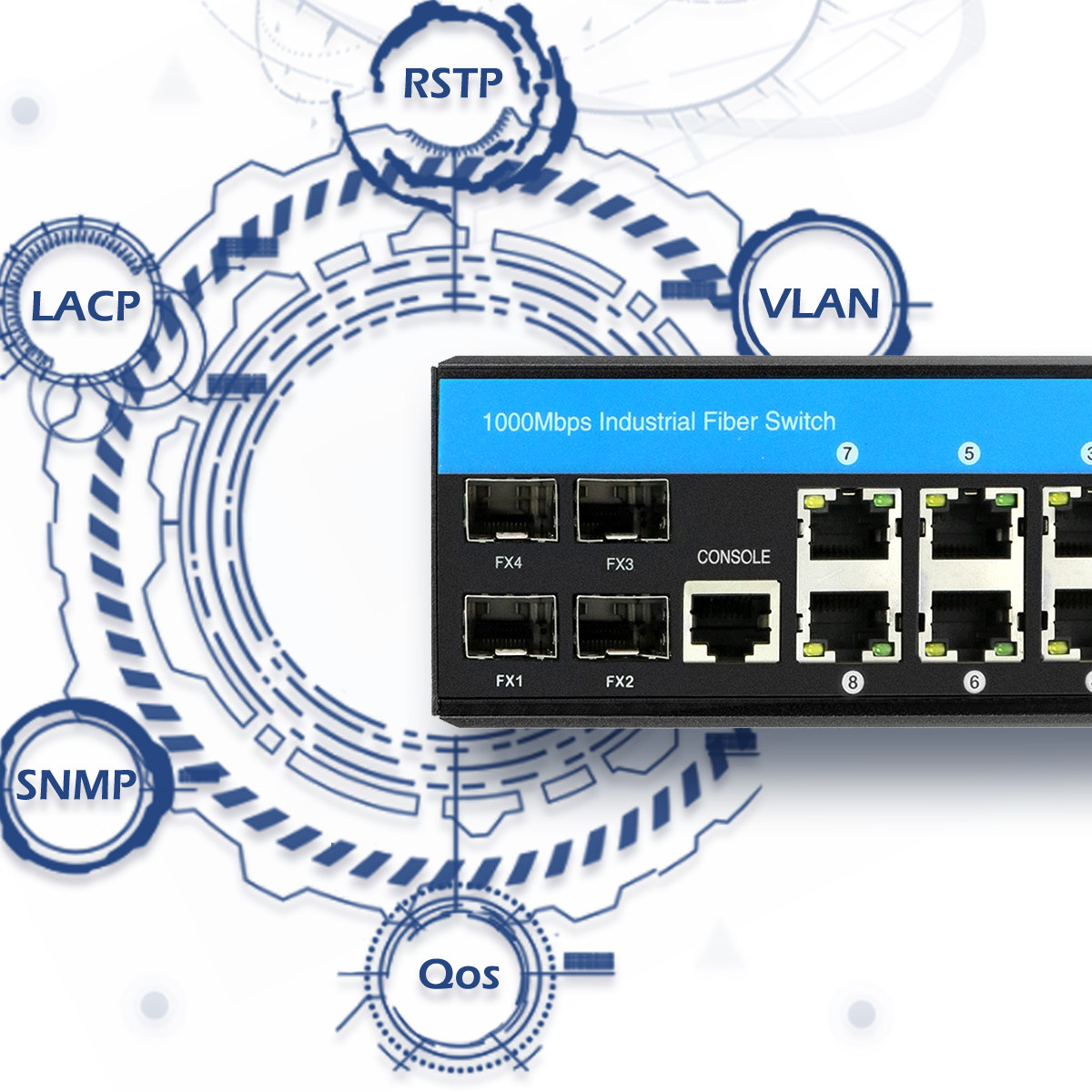

Key Features of Industrial poe fiber switch
Support cable diagnosis and can locate the fault point
 Support IEEE802.3az EEE (Energy Efficient Ethernet) Management,
optimize power consumption
Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
Support Qos, transport classification Qos, Cos, bandwidth control
(input/output direction), storm suppression ,differentiated services
Support IEEE802.1q VLAN,VLAN port ,based Mac VLAN,IP subnet VLAN,
Protocol VLAN,VLAN convert, MVR
Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation
Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
Support IGMP agent report, MLD snooping
Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+,HTTP/HTTPS, SSL/SSH v2
Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
Support IPV6 Telnet server /ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP,TFTP, QoS, ACL.

Specification of Industrial Full Gigabit Switch

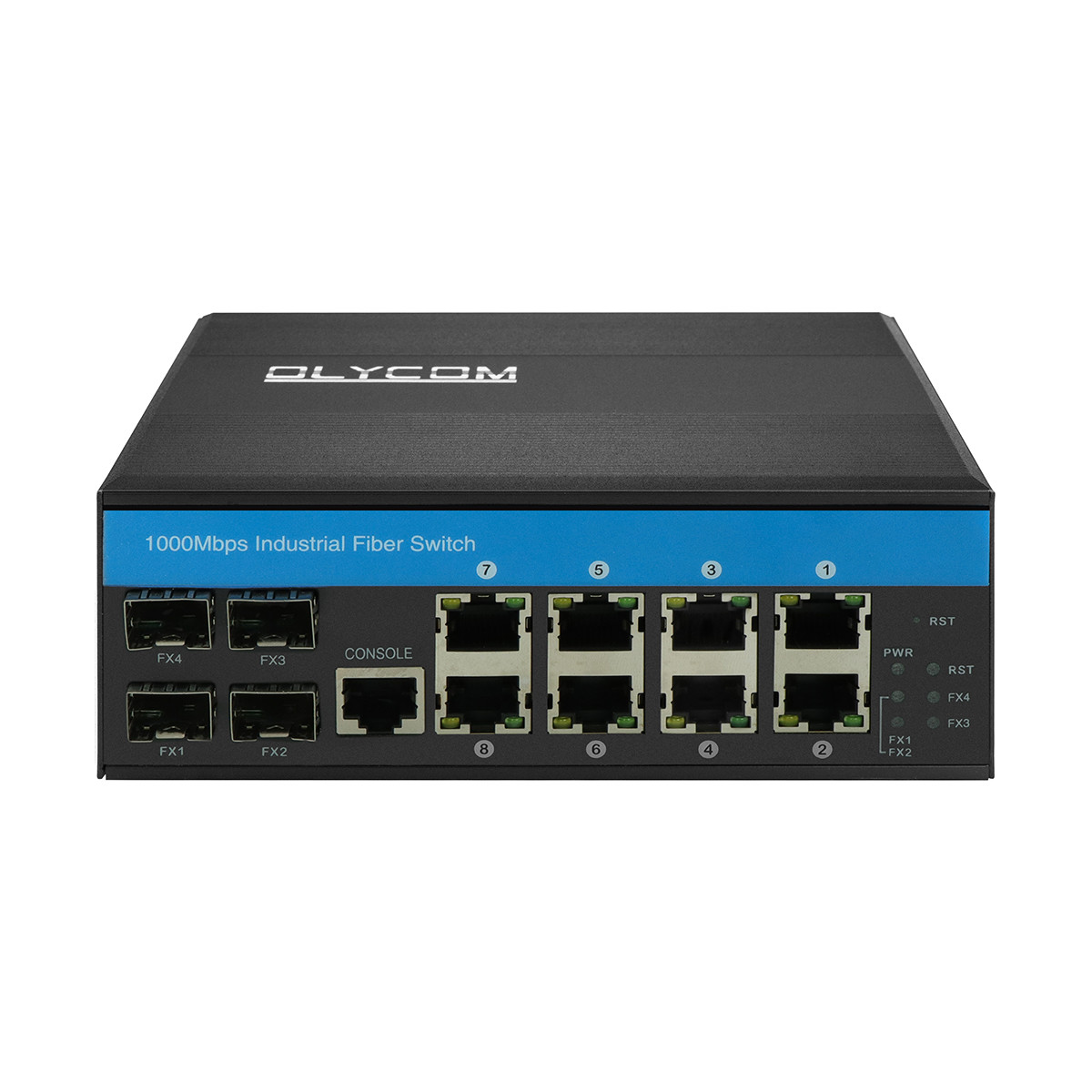

Product Name 10/100/1000Mbps Managed Industrial POE Fiber Switch (4F+8TP)
Model No. IM-FP488GW

4 x 1000Mpbs SFP port

SM:1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM:1310nm, 2Km; 8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)

Standard IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az
Jumbo Frame 9.6KB
MAC Address Table Size 8K
Switching features

Transmission mode:storage and forward

System bandwidth:58Gbps (non-traffic jam)

Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km

LEDs Power, network, fiber

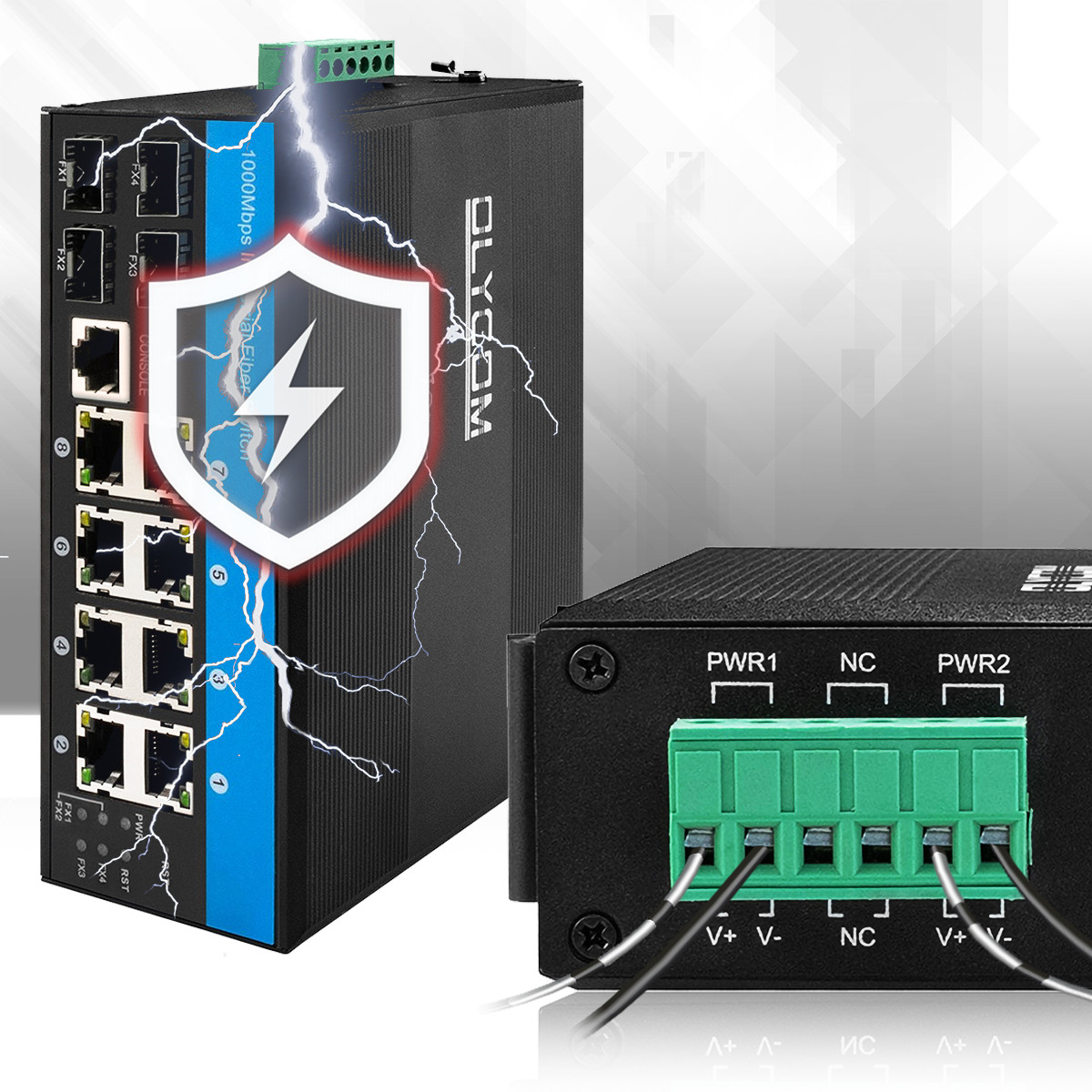

Power supply

POE power supply input voltage: 48V (max 52V),

Single PoE power supply output power: 15.4W (port 1~8)

(802.3at standards required special instructions)

Environment Working Temp:-40°~ 85°C ; Storage Temp:-40°~ 85°C;Working humidity:10%~90%, non-condensing; Storage humidity:10%~95%, non-condensing
Industry Standards

EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A

EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8; Traffic Control:NEMA-TS2; Vibration:IEC 60068-2-6; Freefall:IEC 60068-2-32; Shock:IEC 60068-2-27; Rail Traffic:EN 50121-4

Safety CE Mark ,commercial ; CE/LVD EN60950
Mechanical information

Shell:Corrugated metal shell; Safety class:IP40;

Dimension:158 x 114.8 x 60mm;

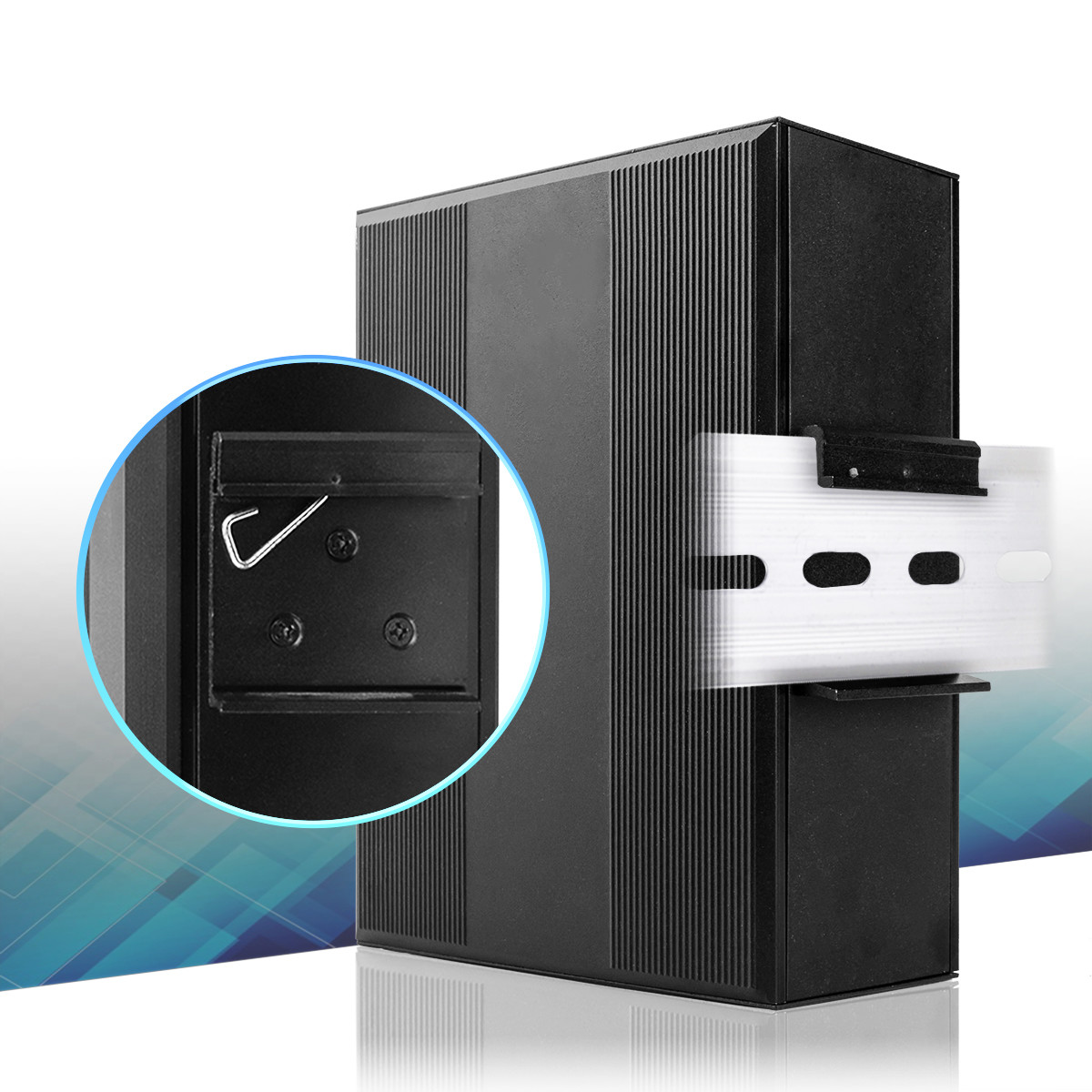

Mounting method:Din-rail mounting

Warranty Replacement within 1year; 5 years repairing


12 Port Gigabit Industrial Fiber Switch 10/100 / 1000mbps Managed Switch DC48V 0



Packing box of Din rail unmanaged switch


12 Port Gigabit Industrial Fiber Switch 10/100 / 1000mbps Managed Switch DC48V 1

  1. Put the product in an ESD Bag, then placed in PE foams with outer carton packaging.

  2. The standard packing usually contains a main device, a warranty card and a user manual.
  3. Packing box dimension for 1pc: 23*16.5*5.8cm
  4. 40pcs in a packing box of 67*33*47cm dimension.


  • Advantage
  • 1. Manufacturing: We are a powerful factory and has been in this industry about 18 years
    2. Professional RD center: We have a professional and independent RD team. Most our engineers have more than 5 years experience.
    3. Fast dispatch: Most of the products are in stock. Below 10pcs can arrange delivery with 3 days.
    4. Small order accepted: Low MOQ accepted. 1pcs are availabel.
    5. Insurance: all products 3 years warranty.
