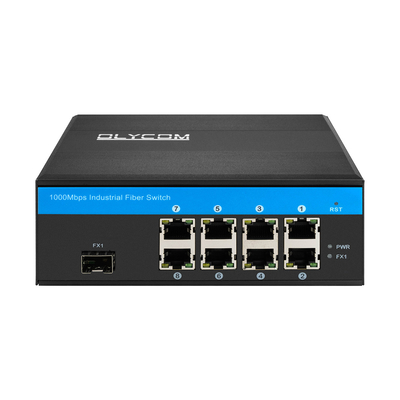

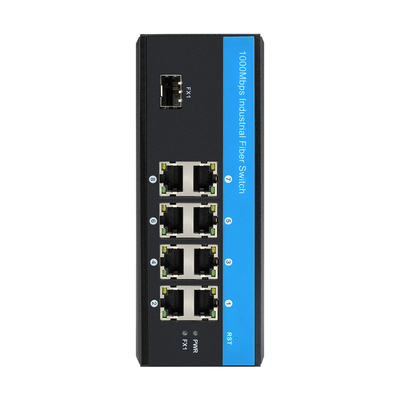

Industrial Unmanaged PoE Switch 8 Port Gigabit Industrial Network Unmanaged 240W CE

1pc
MOQ
Negotiable
Price
Industrial Unmanaged PoE Switch 8 Port Gigabit Industrial Network Unmanaged 240W CE
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Product Name: Gigabit Industrial PoE Fiber Switch
Speed: 10/100/1000Mbps
PoE Budget: 120W/240W
PoE Standard: 15.4W/30W
POE Power Supply Input Voltage: 48V (max 52V)
PoE Distace: 100-meter
Chipset: Realtek
Highlight:

Industrial POE Fiber Switch

,

10Mbps Industrial POE Fiber Switch
Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: OLYCOM
Certification: CE, FCC, RoHS
Model Number: IM-FP188GE
Document: IM-WP054BGE.pdf
Payment & Shipping Terms
Packaging Details: One unit device and one user manual are inside one box , sealed and well protected.
Delivery Time: 3-5 days
Payment Terms: T/T, PayPal
Supply Ability: 5000 pieces per month
Product Description

8 Port 15.4W/30W PoE DIN Gigabit Ethernet Switch



Key Feature of 8 Port PoE Switch



  • Supply active PoE(DC48V) to PoE IP cameras, WAPs etc. through Cat5 or above copper cable
  • 1x1000Mbps SFP fiber ports
  • 8x10/100/1000Mbps Auto-sensing RJ45, IEEE 802.3af/at power on to 1~ 8 ports
  • Detect the PoE modes(Non-PoE, 802.3af/at compliant) of connected electrical equipment
  • 6KV Ethernet surge protection, adapt to a harsh outdoor environment
  • Support Auto MDI/MDIX
  • Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
  • IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
  • DIN rail or Wall installation
  • Power range up to 100 meters
  • Comply with FCC and CE standards
  • A store-and-forward switching mechanism
  • Operating environment temperature: -40°C～75°C



Specification of Industrial Network Switch



Product Name 10/100/1000Mbps Industrial PoE Fiber Switch(1F+8TP)
Model No. IM-FP188GE
Port

1x1000M SFP Fiber

SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km

MM: 1310nm, 2Km; 850nm, 500-meter

8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)

1x6-PIN Power Terminal Block
Protocol

IEEE 802.3(10Base-T)

IEEE 802.3u(100Base-TX)

IEEE 802.3ab(1000Base-TX)

IEEE 802.3af 15.4W(PoE)

IEEE 802.3at 30W(PoE+)
Switching Features

Transmission mode: storage and forward

Forwarding delay: <10us

System bandwidth: 16Gbps (non-traffic jam)

Forwarding rate: 13.392Mmps

MAC: 4K

Packet buffer size: 1.75Mb
Network Media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
LEDs

Power, Fiber, Network, PoE

PWR: Power



Fiber: FX1

On: transmission is normal

Off: transmission is NOT normal(faulty optical module or disconnected)



Copper orange: PoE indicator

On:PoE is working

Off:PoE is not working or this is Non-PoE device



Copper green: Speed indicator

On:transmission speed is 1000Mbps

Blinking: in transmission

Off:Disconnected or working speed is 10/100Mbps
Power Supply

PoE power supply input voltage: 48V (max 52V)

Single PoE power supply output power: 30W (port 1~8)
Total budget: 240W

PoE output voltage: 48V

Reverse connection: support
PoE Wiring 1/2 (V+), 3/6 (V-)
Environment

Working temperature: -40°C～75°C

Storage temperature: -40°C～85°C

Working humidity: 10%～90%, non-condensing

Storage humidity: 10%～95%, non-condensing
Industry Standards

ESD: IEC61000-4-2, ±15KV air, ±6KV contact

EFT: IEC61000-4-4, General ±6KV

Surge: IEC61000-4-5, Differential ±2KV, Common±6KV
Certification

CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020

EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021

EN 61000-3-3: 2013/A2: 2021/AC:2022

CE-LVD: EN IEC 62368-1: 2020+A11:2020

FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014
Mechanical information

Shell: Corrugated metal shell, IP40 grade level

Dimension: 114*93*35mm

Mounting method: Din-rail/Wall mounting

Weight: 0.75Kg/0.9Kg(Net/Gross)
Warranty 3 years, lifetime technical support



Packing



1. One product, one user manual, and one warranty card are in one box.

2. 20pcs boxes are in one carton. (67*33*47cm)



Industrial Unmanaged PoE Switch 8 Port Gigabit Industrial Network Unmanaged 240W CE 0



Dimension



Industrial Unmanaged PoE Switch 8 Port Gigabit Industrial Network Unmanaged 240W CE 1



Application



Industrial Unmanaged PoE Switch 8 Port Gigabit Industrial Network Unmanaged 240W CE 2



Accessories



Industrial SFP Transceiver
OSPL1E06D-85 100BASE-FX(850nm)
OSPL1E06D 100BASE-FX
OSPL1E20D 100BASE-LX
OSPL1E40D 100BASE-EX
OSBL1E20D-35 100BASE-BX-U(TX 1310 RX1550)
OSBL1E20D-53 100BASE-BX-D(TX 1550 RX1310)
OSPL1G05D 1000BASE-SX
OSPL1G06D 1000BASE-SX(1310nm)
OSPL1G20D 1000BASE-LX
OSPL1G40D 1000BASE-EX
OSBL1G20D-35 1000BASE-BX-U(TX 1310 RX1550)
OSBL1G20D-53 1000BASE-BX-D(TX 1550 RX1310)
Industrial Power Adapter Din-rail
IM-DAC220/DC48V2.5A AC220V to DC48V2.5A, -40～70℃
IM-DAC220/DC48V5A AC220V to DC48V5A, -40～70℃
IM-DAC220/DC48V10A AC220V to DC48V10A, -40～70℃


FAQ



1, What chip is it based?

Olycom: Realtek



2, Can I customize it?

Olycom: Yes

We support OEM services like logo, model name, label, PVC mask and product parts(mounting kit, power terminal block etc.)



3, Is it managed?

Olycom: No

Its just simple plug-and-play, but we have a managed model(IM-FP288GM)



Industrial Unmanaged PoE Switch 8 Port Gigabit Industrial Network Unmanaged 240W CE 3
