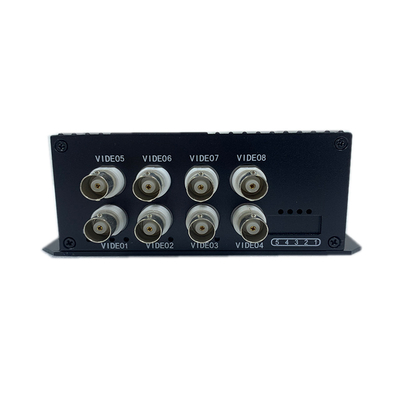

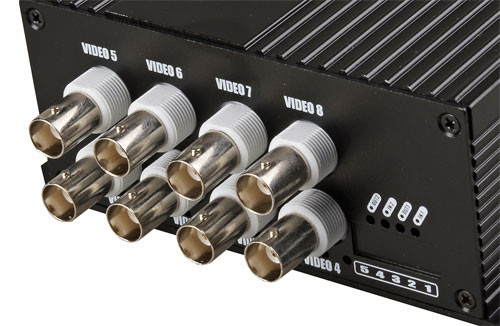

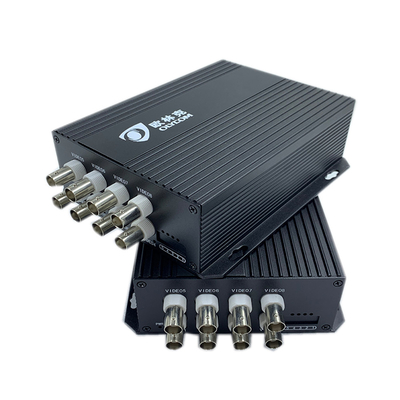

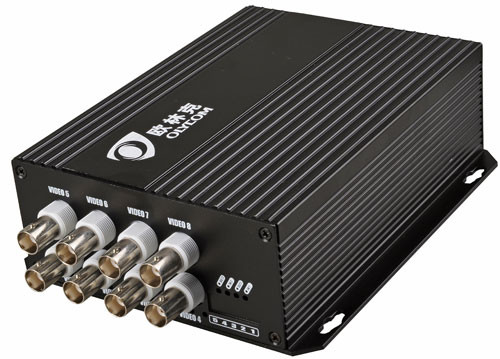

8ch Port 1080p AHD CVI TVI 20km Bnc Extender Fiber Optical Hd Video Converter
Introduction
Specification of Optical Video Transmitter and Receiver
| Optical | |
| Wavelength | 1310nm/1550nm |
| Output Power | -8~3dBm |
| Optic fiber | Single mode (9/125um) 20Km, multimode (50/125um) 1Km, ( 62.5/125um) 500m |
| Receiving sensitivity | -30dBm |
| Interface | FC standard, ST/SC optional |
| Video | |
| Channel Quantity | 8ch, from camera to control center |
| Compatible Systems | NTSC/PAL/SECAM |
| Impedance/Voltage | BNC 75Ω (unbalanced) / 2.0Vp-p |
| Differential Gain | < ±1% |
| Differential Phase | < ±1 |
| S/N ratio | >60dB(weighting)(8 bit) |
| Interface | BNC |
| Electrical. Environmental. Mechanical | |
| Operating voltage | DC 5V1A |
| Operating temperature | -20℃～+70℃ |
| Storage temperature | -45℃～+85℃ |
| Humidity | 0~95%non-condensing |
| Dimension-standalone | 179mm ×130.5mm ×50mm |
| Weight | 0.66kg/piece (Net Weight), 1.00 kg/piece (Gross Weight) |
Application
. Express way security protection and toll station system City traffic monitoring system Building and campus monitoring system Industrial monitoring (airport, chemical plant, railway, etc.) Military monitoring (frontier defense, national defense) Electronic power oil field, TV station program broadcasting Gymnasium (live video and audio transmission)
FAQ:
| 1 Q: What is your lead time? |
| A:It usually takes 2~4 working days to produce and then will send goods. |
| 2 Q: How will you send my goods? |
| A: We will send the goods by DHL, TNT, UPS or FEDEX, please check the delivery details by the tracking number. |
| 3 Q: Please tell me something about your MOQ |
| A: Our MOQ is 1 Pcs/Pair based on USD or EUR terms. |
| 4 Q: Something about pricing. |
| A: Good quality components for our products. Low prices for big and repeat orders. |
| 5 Q: What is warranty time? |
| A: 1 year for commercial products and 3 years for industrial products. Technical support will be offered free. |
